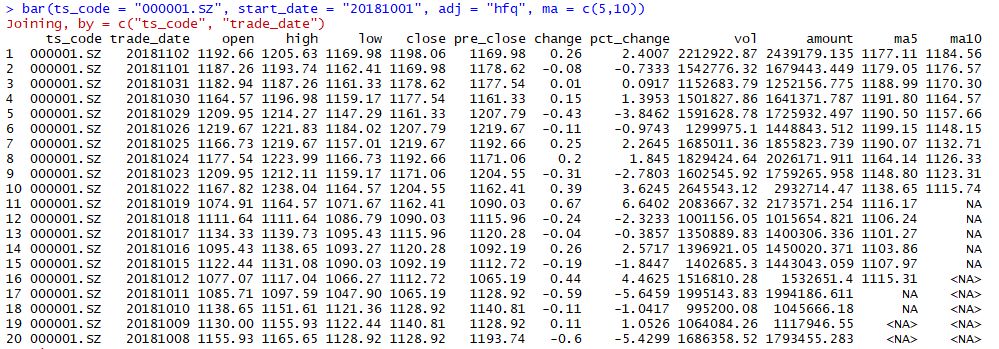

df = bar(ts_code="000001.SZ", start_date="20180101", adj="hfq", ma=c(5,10,20)) %>%
mutate(trade_date = as.Date(gsub('^(\\d{4})(\\d{2})(\\d{2})$', '\\1-\\2-\\3', trade_date))) %>%
mutate_at(vars(3:dim(.)[2]), as.numeric)
df$id = dim(df)[1]:1
df$candleLower = pmin(df$open, df$close)
df$candleUpper = pmax(df$open, df$close)
df$candleMiddle = (df$candleLower+df$candleUpper)/2
theme_set(theme_bw())
p = ggplot(df, aes(x=id))+
geom_boxplot(aes(lower= candleLower,
middle = candleLower,
upper = candleUpper,
ymin = low,
ymax = high,
color= ifelse(open>close,"green","red"),
width= 0.5),
stat = 'identity',
size = .5)+
scale_color_manual(values = c("green","red"))+
theme(
panel.grid.major = element_blank(),
panel.grid.minor = element_blank(),
panel.background = element_blank(),
axis.title = element_blank(),
axis.text.x = element_text(angle = 65, hjust = 1),
legend.position="none"
)
p + geom_line(aes(x=id, y=ma5), color="orange", size=.5)+
geom_line(aes(x=id, y=ma10), color="purple", size=.5)+
geom_line(aes(x=id, y=ma20), color="blue", size=.5)
