Fairness Indicators:用于机器学习公平性的可扩展基础架构

TensorFlow • 4 年前 • 832 次点击

文 / Catherina Xu 和 Tulsee Doshi, 产品经理, Google Research

虽然工业界和学术界仍在不断探索使用机器学习 (ML) 的好处,以改善产品及解决重要问题,但训练使用的算法和数据集也能反映出或加强这种不公平的偏差。例如,如果总是将某些群组的正常的文字评论标记为“垃圾评论”或“恶意评论”,审核系统便会在对话中排除这些群组的声音。


2018 年,我们曾分享过 Google 如何利用 AI 改善产品,重点介绍了指引工作方向的 AI 原则 。其中,第二个原则 ”避免造成或加剧偏见” 概述了我们致力于减少偏见和尽可能减小它对人们影响。


为兑现部分承诺,我们近期在 TensorFlow World 上发布了 Fairness Indicators 的测试版本,这套工具能够常规计算和可视化二进制和多类别分类的公平性指标,帮助团队迈出识别不公平影响的第一步。


Fairness Indicators 可用于生成透明度报告指标,例如用于模型卡 (Model Cards) 的指标,从而帮助开发者就可靠地部署模型做出更好的决策。由于公平性问题及评估每个案例都有差异,因此该版本中还包含一个交互式案例研究,该研究以 Jigsaw 的 恶意评论数据集意外偏差为例,说明如何使用 Fairness Indicators,以及如何根据已部署生产的机器学习 (ML) 模型的上下文来检测和修正该模型中的偏差。Fairness Indicators 现已推出测试版本,您可以在自己的案例中试用该工具。



什么是 ML 公平性?

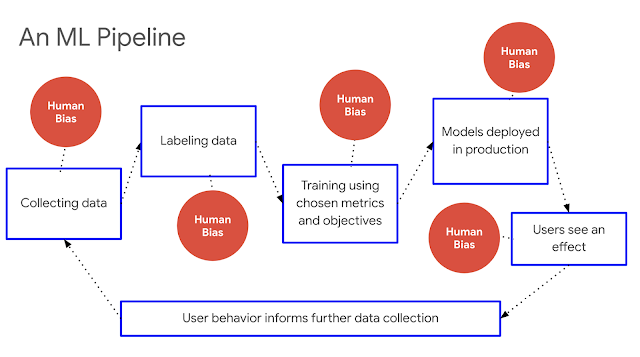

在典型的机器学习流水线中,无论是不具代表性的数据集,还是已学习模型的表示,又或是向用户呈现结果的方式,任何部分都可能会出现偏差。相较于某些用户,由于这种偏差所导致的错误可能会对其他用户造成更大的影响。


为检测这种不平等的影响,分别对独立分层或用户群体进行评估至关重要,因为整体指标可能会掩盖某些群体的糟糕表现。这些群体可能包括但不限于,由 人种、种族、性别、国籍、收入、性取向、能力 和 宗教信仰 等敏感特征定义的群体。然而,同样必须记住,不能仅通过指标和评估实现公平性;即使所有分层都表现优异也未必能证明系统是公平的。相反,我们应将评估视为识别表现差距的首要方法,尤其是在分类模型中。



Fairness Indicators 工具套件

Fairness Indicators 工具套件可用于计算和可视化分类模型中常见的公平性指标(如误报率和漏报率),以便轻松比较各分层的性能,或将设为分层基准。该工具可以计算置信区间,进而显示统计上的显著差异,并在多个阈值上执行评估。在界面中,用户可以切换基准分层,并研究其他各类指标的表现。用户也可定制适合于自己案例的可视化指标。


此外,Fairness Indicators 集成了 What-If 工具 (WIT):通过点击 Fairness Indicators 图表中的柱状长条,用户便能将这些特定的数据点加载到 WIT 小部件中,以供进一步检查、比较以及反事实分析。这对于大型数据集特别实用,在使用 WIT 进行深入分析之前,我们可以先利用 Fairness Indicators 识别有问题的分层。

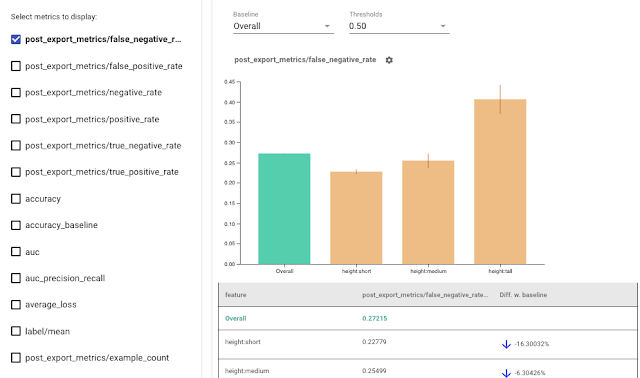

使用 Fairness Indicators 可视化公平性评估指标

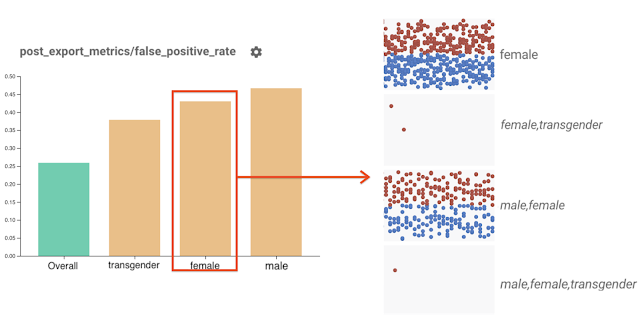

在 Fairness Indicators 中点击某个分层,即可将该分层中的所有数据点加载到 What-If 部件中。本例显示的是带“女性”标签的所有数据点


Fairness Indicators 测试版本的发布包括以下内容:
  • pip 软件包:包括 TensorFlow Model Analysis (TFMA)、Fairness Indicators、TensorFlow Data Validation (TFDV)、What-If 工具和示例 Colab:
    • Fairness Indicators 示例 Colab — Fairness Indicators 的使用简介
    • Fairness Indicators for TensorBoardTensorBoard 插件的使用示例
    • TFHub 中嵌入 Fairness Indicators — 研究不同嵌入对下游公平性指标影响的 Colab
    • Fairness Indicators 的云端可视化 API 的人脸检测模型 — 展示如何使用 Fairness Indicators 生成模型卡评估结果的 Colab
  • GitHub 代码库:源代码
  • 使用指导:公平性高度依托上下文,因此必须仔细思考每个案例及其对用户的潜在影响。本文档会指导您如何选择群体和指标,并重点介绍评估的最佳实践。
  • 案例研究:使用 Fairness Indicators 的交互式案例研究,为您展示 Jigsaw 的 Conversation AI 团队如何使用恶意评论分类数据集检测分类模型中的偏差。



如何结合在已有的模型中

Fairness Indicators 基于 TensorFlow Model Analysis 而构建,后者是 TensorFlow Extended (TFX) 的组件,可用于计算和可视化模型性能。基于特定的 ML 工作流,Fairness Indicators 可通过以下其中一种方式集成到系统中:
如果使用 TensorFlow 模型和工具(如 TFX),那么可以:
  • 将 Fairness Indicators 用作 TFX 中 Evaluator 的部分组件
  • 在评估其他实时指标时在 TensorBoard 中使用 Fairness Indicators


如果使用非现有的 TensorFlow 工具,那么可以:
  • 下载 Fairness Indicators pip 软件包,然后将 TensorFlow Model Analysis 用作一个立工具


对于非 TensorFlow 模型:
  • 使用 Model-Agnostic TFMA,根据任意模型的输出计算 Fairness Indicators



Fairness Indicators 案例研究

我们创建了案例研究介绍视频来展示如何将 Fairness Indicators 与工具结合使用,进而检测和减少 Jigsaw 训练的”恶意评论数据集“中意外偏差的偏差。该数据集由 Conversation AI 团队开发,该团队是 Jigsaw 的内部团队,致力于训练 ML 模型以保护对话中的意见。训练后的模型可以预测文字评论是否可能会被滥用作各类恶意、侮辱和性露骨评论。

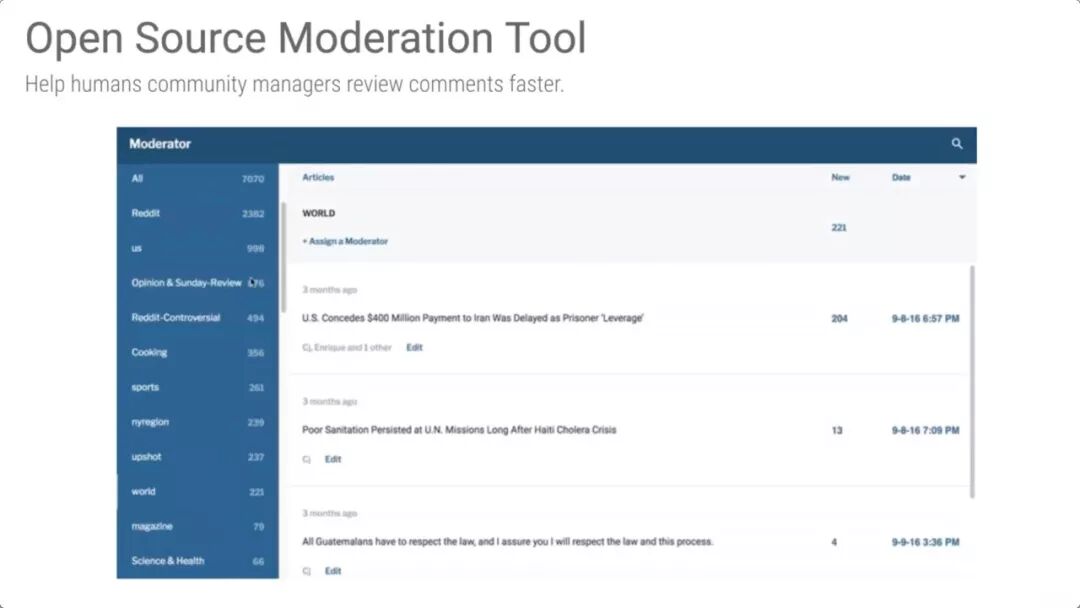

介绍视频


这类模型的主要用例是内容审核。如果模型以系统的方式惩罚某些类型的消息(例如经常将非恶意评论标记为恶意评论,结果导致误报率偏高),则这些声音将作消音处理。在此案例研究中,我们针对数据集中性别身份关键词切分的子群体,计算出其误报率,然后结合多种工具(Fairness Indicators、TFDV 和 WIT)检测、识别出潜在问题并采取措施修正这些底层问题。



下一步计划

Fairness Indicators 只是我们的牛刀小试。我们计划通过支持更多指标(例如,无需使用阈值就能评估分类器的指标)来实现 垂直扩展;同时, 也计划通过创建利用主动学习和 min-diff 等方法的修正库来实现 水平扩展。这是因为,我们认为通过真实示例来学习很重要;而且,随着未来几个月内更多功能推出,我们将发布更多基于案例研究的工作内容。


开始使用此工具前,请参阅 Fairness Indicators GitHub 代码库。要详细了解如何在用例上下文中考虑公平性评估,请点击此链接


我们很乐意与您一起了解 Fairness Indicators 的实用之处,以及添加哪些功能会更有使用价值。如要针对使用体验提供反馈,请通过 tfx@tensorflow.org 与我们联系。



致谢

参与这项工作的核心团队成员包括 Christina Greer、Manasi Joshi、Huanming Fang、Shivam Jindal、Karan Shukla、Osman Aka、Sanders Kleinfeld、Alicia Chang、Alex Hanna 和 Dan Nanas。此外,感谢 James Wexler、Mahima Pushkarna、Meg Mitchell 和 Ben Hutchinson 对本项目做出的贡献。


如果您想详细了解 本文提及 的相关内容,请参阅以下文档。这些文档深入探讨了这篇文章中提及的许多主题:
  • AI 原则
    https://www.blog.google/technology/ai/ai-principles/

  • TensorFlow World
    https://conferences.oreilly.com/tensorflow/tf-ca/schedule/2019-10-28

  • Fairness Indicators
    https://github.com/tensorflow/fairness-indicators

  • 模型卡

    https://modelcards.withgoogle.com/about?utm_source=googleaiblog&utm_medium=blog&utm_campaign=fairness-indicators-cs&utm_term=&utm_content=blog-mc

  • 交互式案例研究
    https://developers.google.com/machine-learning/practica/fairness-indicators?utm_source=aiblog&utm_medium=blog&utm_campaign=fi-practicum&utm_term=&utm_content=blog-body

  • Jigsaw 恶意评论数据集意外偏差
    https://www.kaggle.com/c/jigsaw-unintended-bias-in-toxicity-classification

  • 已推出测试版本
    https://github.com/tensorflow/fairness-indicators

  • What-If 工具
    https://pair-code.github.io/what-if-tool/

  • pip 软件包
    https://pypi.org/project/fairness-indicators/

  • TensorFlow Model Analysis
    https://tensorflow.google.cn/tfx/tutorials/model_analysis/tfma_basic

  • TensorFlow Data Validation
    https://tensorflow.google.cn/tfx/data_validation/get_started

  • 示例 Colab
    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/examples/Fairness_Indicators_Example_Colab.ipynb

  • Fairness Indicators 示例 Colab
    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/examples/Fairness_Indicators_TensorBoard_Plugin_Example_Colab.ipynb

  • Fairness Indicators for TensorBoard
    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/examples/Fairness_Indicators_TensorBoard_Plugin_Example_Colab.ipynb

  • TensorBoard
    https://tensorflow.google.cn/tensorboard

  • 在 TFHub 中嵌入 Fairness Indicators
    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/examples/Fairness_Indicators_on_TF_Hub_Text_Embeddings.ipynb

  • Fairness Indicators 云端可视化 API 的人脸检测模型

    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/examples/Facessd_Fairness_Indicators_Example_Colab.ipynb

  • 模型卡

    https://modelcards.withgoogle.com/face-detection

  • GitHub 代码库

    https://github.com/tensorflow/fairness-indicators

  • 使用指导

    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/documentation/guidance.md

  • 案例研究

    https://developers.google.com/machine-learning/practica/fairness-indicators

  • 恶意评论分类数据集

    https://www.kaggle.com/c/jigsaw-toxic-comment-classification-challenge

  • TensorFlow Extended

    https://tensorflow.google.cn/tfx

  • Evaluator

    https://tensorflow.google.cn/tfx/guide/evaluator

  • TensorBoard

    https://github.com/tensorflow/tensorboard/blob/master/docs/fairness-indicators.md

  • 独立工具

    https://tensorflow.google.cn/tfx/guide/fairness_indicators

  • Model-Agnostic TFMA
    https://tensorflow.google.cn/tfx/guide/fairness_indicators#model_agnostic_evaluation

  • 案例研究
    https://developers.google.com/machine-learning/practica/fairness-indicators?utm_source=aiblog&utm_medium=aiblog&utm_campaign=fi-practicum&utm_content=fi-practicum

  • 恶意评论数据集“中的意外偏差
    https://www.kaggle.com/c/jigsaw-unintended-bias-in-toxicity-classification

  • min-diff
    https://arxiv.org/pdf/1901.04562.pdf

  • Fairness Indicators GitHub 代码库
    https://github.com/tensorflow/fairness-indicators

  • 此链接
    https://github.com/tensorflow/fairness-indicators/blob/master/fairness_indicators/documentation/guidance.md
