怎么给 Python 写 C 扩展?

编程派 • 6 年前 • 384 次点击

作者:nucpylab

原文:http://www.cnblogs.com/nucpylab/p/8608722.html

1. 环境准备

如果是Linux只需要安装Python3.x + Python-dev。

Windows下稍微复杂点,VS2017 + Python3.6.3

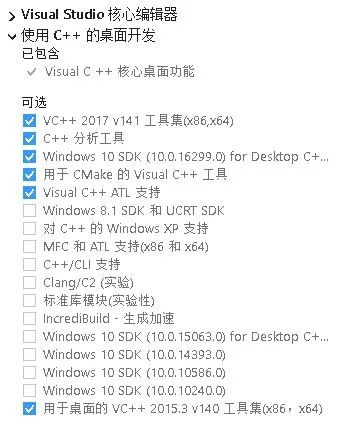

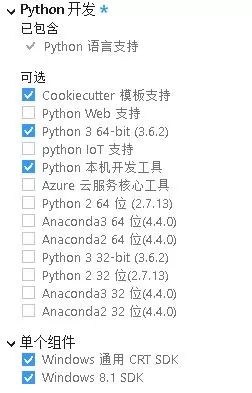

VS2017可用社区版,需要选择安装的环境如下:

2. Hello World !

2.1 C模块封装

以计算两个数相加为例,选择任意文件夹,新建如下C语言源码:

  1. // 文件名 calc.c

  2. #include

  3. int add(int x, int y){ // C 函数

  4.    return x + y;

  5. }

  6. static PyObject *calc_add(PyObject *self, PyObject *args){

  7.    int x, y;

  8.    // Python传入参数

  9.    // "ii" 表示传入参数为2个int型参数,将其解析到x, y变量中

  10.    if(!PyArg_ParseTuple(args, "ii", &x, &y))

  11.        return NULL;

  12.    return PyLong_FromLong(add(x, y));

  13. }

  14. // 模块的方法列表

  15. static PyMethodDef CalcMethods[] = {

  16.     {"add", calc_add, METH_VARARGS, "函数描述"},

  17.     {NULL, NULL, 0, NULL}

  18. };

  19. // 模块

  20. static struct PyModuleDef calcmodule = {

  21.    PyModuleDef_HEAD_INIT,

  22.    "calc", // 模块名

  23.    NULL, // 模块文档

  24.    -1,       /* size of per-interpreter state of the module,

  25.                or -1 if the module keeps state in global variables. */

  26.    CalcMethods

  27. };

  28. // 初始化

  29. PyMODINIT_FUNC PyInit_calc(void)

  30. {

  31.    return PyModule_Create(&calcmodule);

  32. }

其中,静态函数 calc_add 以python的C接口方式封装了add函数,命名方式 模块名_函数名

静态PyMethodDef列表 变量 CalcMethods 包含了该模块方法的描述

静态struct PyModuleDef结构体  变量 calcmodule 定义了模块的描述

PyInit_calc 函数初始化了模块,命名方式 PyInit_模块名

2.2 C源码编译

在VS2017中可以直接生成 .dll 文件,然后改名为 .pyd 就可在python程序中引入该模块了,但是,这不"清真",正确的姿势是写一个 setup.py然后通过python调cl.exe编译。

新建 setup.py文件,内容如下:

  1. # setup.py

  2. from distutils.core import setup, Extension

  3. module1 = Extension('calc',

  4.                    sources=['calc.c'])

  5. setup(name='calc_model',

  6.      version='1.0',

  7.      description='Hello ?',

  8.      ext_modules=[module1]

  9. )

然后,从Windows的命令行(命令提示符)下进入到这个文件夹下,执行:

python setup.py build

即可完成编译,如果出现某 .bat文件未找到,说明你的VS没有安装相应的依赖(Linux下编译不成功原因可能是没有装python-dev),按文章开头给出的依赖库添加修改(此时不需要重新安装VS)。

编译结束后,在该文件夹下会出现 build 文件夹,进入该文件夹,出现如下两个文件夹:

进入 lib.xxx那个文件夹,里面有个 .pyd 结尾的文件(Linux下为 .so 结尾),这就是我们编译好的python模块了,如下:

当然,你也可以改名为 calc.pyd 比较好看,不过这不影响调用。

2.3 Python调用

这部分就简单了,进入含有编译好的 .pyd 文件夹,新建如下文件:

  1. import calc

  2. print(calc.add(12, 21))

这就是一个普通库,这样调用就OK了。

3. Python的参数传递以及C的返回值相关问题

这部分我直接甩出文件就行,编译及调用过程与上面一样。

C 文件

  1. /**构建返回值

  2. Py_BuildValue("")                        None

  3. Py_BuildValue("i", 123)                  123

  4. Py_BuildValue("iii", 123, 456, 789)      (123, 456, 789)

  5. Py_BuildValue("s", "hello")              'hello'

  6. Py_BuildValue("y", "hello")              b'hello'

  7. Py_BuildValue("ss", "hello", "world")    ('hello', 'world')

  8. Py_BuildValue("s#", "hello", 4)          'hell'

  9. Py_BuildValue("y#", "hello", 4)          b'hell'

  10. Py_BuildValue("()")                      ()

  11. Py_BuildValue("(i)", 123)                (123,)

  12. Py_BuildValue("(ii)", 123, 456)          (123, 456)

  13. Py_BuildValue("(i,i)", 123, 456)         (123, 456)

  14. Py_BuildValue("[i,i]", 123, 456)         [123, 456]

  15. Py_BuildValue("{s:i,s:i}", "abc", 123, "def", 456)    {'abc': 123, 'def': 456}

  16. Py_BuildValue("((ii)(ii)) (ii)", 1, 2, 3, 4, 5, 6)          (((1, 2), (3, 4)), (5, 6))

  17. **/

  18. #include

  19. static PyObject *value_commonArgs(PyObject *self, PyObject *args){

  20.    // 传入普通参数,例如: s = value.com(1, 2.3, "Hello C")

  21.    int x;

  22.    double y;

  23.    char *z;

  24.    if(!PyArg_ParseTuple(args , "ids", &x, &y, &z))

  25.        return NULL;

  26.    printf("The args is %d and %f and %s .n", x, y, z);

  27.    // 返回(x, y, z)的元组

  28.    return Py_BuildValue("(i,d,s)",x, y, z);

  29. }

  30. static PyObject *value_tupleTest(PyObject *self, PyObject *args){

  31.    // t = value.tut((1, 3), "Tuple")

  32.    int x, y;

  33.    char *z ;

  34.    if(!PyArg_ParseTuple(args, "(ii)s", &x, &y, &z))

  35.        return NULL;

  36.    printf("The args is (%d, %d), %s .n", x, y, z);

  37.    // return ([1, 2], "hello")

  38.    return Py_BuildValue("[i,i]s", x, y, z);

  39. }

  40. static PyObject *value_some(PyObject *self, PyObject *args){

  41.    /* 可选参数,可能是下面几种, "|" 代表后面的参数可选

  42.        c = value.som(1)

  43.        value.som(1, 3)

  44.        value.som(1, 2, "hello")

  45.    */

  46.    int x = 0, y = 0;

  47.    char *z = NULL;

  48.    if(!PyArg_ParseTuple(args, "i|is", &x, &y, &z))

  49.        return NULL;

  50.    printf("x is: %dn", x);

  51.    printf("y is: %dn", y);

  52.    if(z != NULL)printf("z is: %sn", z);

  53.    return
