1. 前言

上一篇文章简单地介绍了 PPT 的文档结构,并使用 python-pptx 这个依赖库完成对 PPT 文档最基本的操作

最全总结 | 聊聊 Python 办公自动化之 PPT(上)

作为 PPT 系列篇第 2 篇文章,将覆盖下列内容

  • 表格 Table

  • 图片 Image,包含静态图片、Gif 动态图片

  • 视频 Video

2. 表格 Table

实例化一个幻灯片 Slide 对象后,就可以使用下面的方法插入一个表格

方法:slide.shapes.add_table(rows,cols,left,top,width,height)
参数分别是:
  • rows  表格行数

  • cols  表格列数

  • left  左边距

  • top  上边距

  • width  表格宽度

  • height  表格高度

返回值类型是:pptx.shapes.graphfrm.GraphicFrame

它的 table 属性即为一个表格对象:pptx.table.Table

def insert_table(slide, rows, cols, left, top, width, height, unit=Cm):
    """
    幻灯片中插入一个表格
    :param unit: 默认单位为厘米
    :param slide: 幻灯片对象
    :param rows: 行数
    :param cols: 列数
    :param left: 左边距
    :param top: 上边距
    :param width: 宽度
    :param height: 高度
    :return:
    """

    # 插入一个表格
    table = slide.shapes.add_table(rows, cols, unit(left), unit(top), unit(width), unit(height))

    # 返回表格对象
    return table.table

# 1.创建一个幻灯片 Slide 对象(空白样式)
slide = add_slide(self.presentation, 6)

# 2.插入一个表格
# 参数分别为:幻灯片对象、行数、列数、左边距、上边距、宽度、高度
table = insert_table(slide,
333513.65)

2-1  如何重新设置表的行高、列宽?

为了生成表格的美观性,对表的行高、列宽进行调整很有必要

其中,表格对象的 columns、rows 属性分别用于获取所有的列对象、行对象

def set_table_column_width(table, column_index, width, unit=Cm):
    """
    设置表格某一列的宽度
    :param table:
    :param column_index:
    :param width:
    :param unit: 单位默认为厘米
    :return:
    """

    table.columns[column_index].width = unit(width)


def set_table_row_height (table, row_index, height, unit=Cm):
    """
    设置表格某一行的高度
    :param table:
    :param row_index:
    :param height:
    :param unit:
    :return:
    """

    table.rows[row_index].height = unit(height)

# 3.重新设置表的宽度、高度
# 3.1 分别设置第1-3行列宽
set_table_column_width(table, 05)
set_table_column_width(table, 15)
set_table_column_width(table, 25)

# 3.2 分别设置行高
set_table_row_height(table, 01.5)
set_table_row_height(table, 11.2)
set_table_row_height(table, 21.2)

2-2  设置单元格数据

首先,通过行索引、列索引获取对应的单元格对象

# 获取某一个单元格对象
# 注意:索引从0开始
# 比如:获取第一行、第一列的单元格对象
cell = table.cell(0,0)

接着,指定单元格对象的 text 属性值为指定的内容即可

# 设置单元格的值
cell.text = "单元格显示的内容"

这样,我们定义一组数据,就可以按照插入到表格中了

# 4.设置表格数据
datas = [
    ["学员""姓名""年龄"],
    ["""星安果"23],
    ["""AirPython"18]]

# 遍历设置数据到单元格中
for row_index in range(len(table.rows)):
    for column_index in range(len(table.columns)):
        # 获取单元格对象
        cell_temp = table.cell(row_index, column_index)

        # 设置数据
        cell_temp.text = str(datas[row_index][column_index])

2-3  单元格样式调整

调整单元格的样式包含下面 3 步
  • 获取单元格文本对象

  • 拿到文本对象的段落对象

  • 通过段落,指定段落对齐方式及文字的样式

以设置第一行单元格文字加粗、居中显示为例

# 5、设置第一行表头单元格文字加粗居中显示
for column_index in range(len(table.columns)):
    # 1、单元格对象
    cell = table.cell(0, column_index)
    # 2、文本控件的段落
    paragraph = cell.text_frame.paragraphs[0]
    # 3、设置段落样式
    set_parg_font_style(paragraph, font_name='微软雅黑', font_size=23, font_color=[25500],
                        font_bold=True)

需要指出的是,单元格中的文本控件除了使用默认的段落,也可以添加新的段落,设置不同的内容及样式

2-4  单元格背景颜色

上一篇文章设置文本框 TextBox 背景的方法同样适用于单元格

def set_widget_bg(widget, bg_rgb_color=None):
    """
    设置【文本框textbox/单元格/形状】的背景颜色
    :param widget:文本框textbox、单元格、形状
    :param bg_rgb_color:背景颜色值
    :return:
    """

    if bg_rgb_color and len(bg_rgb_color) == 3:
        # 1、将形状填充类型设置为纯色
        widget.fill.solid()
        # 2、设置文本框的背景颜色
        widget.fill.fore_color.rgb = RGBColor(bg_rgb_color[0], bg_rgb_color[1], bg_rgb_color[2])

# 设置单元格背景颜色
set_widget_bg(cell, [204217225])

2-5  合并单元格

语法如下:

# 合并单元格
开始单元格.merge(结束单元格)

以合并单元格并居中显示为例

from pptx.enum.text import MSO_VERTICAL_ANCHOR, MSO_ANCHOR

def set_cell_center(cell):
    """
    设置单元格文字居中显示
    :param cell:
    :return:
    """

    paragraph = cell.text_frame.paragraphs[0]
    paragraph.alignment = PP_ALIGN.CENTER
    cell.vertical_anchor = MSO_ANCHOR.MIDDLE

# 6、单元格合并
# 合并单元格并居中显示
table.cell(10).merge(table.cell(20))
table.cell(1,0).text="合并"
set_cell_center(table.cell(1,0))

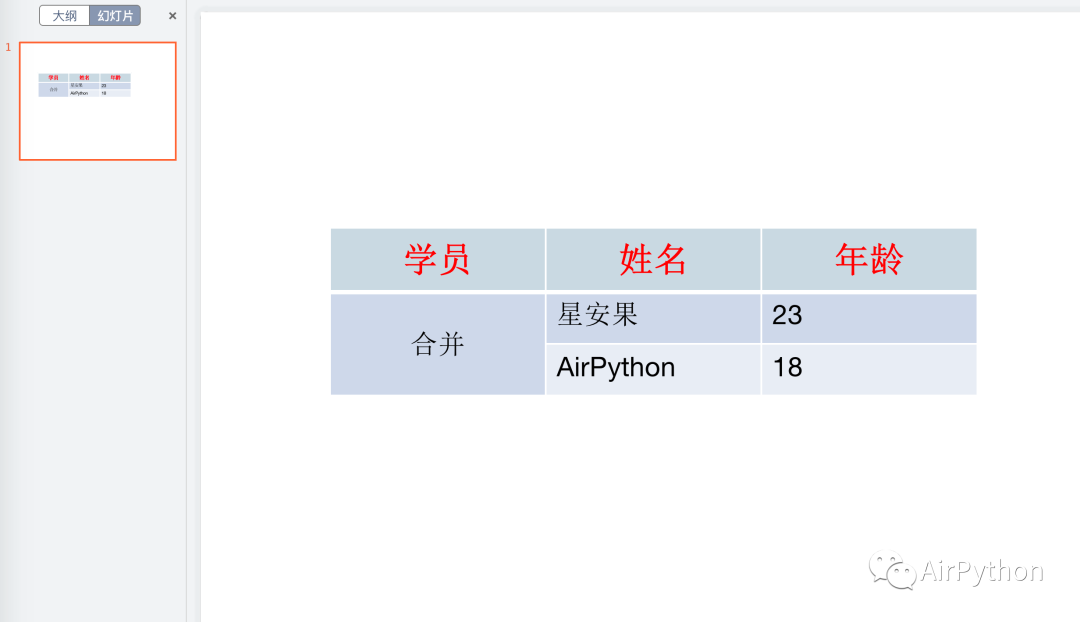

经过上面一系列操作,最后在幻灯片中生成的表格如下:

3. 图片 Image

无论是静态图片,或者是 GIF 动态图片,插入到幻灯片的方式一样

方法:slide.shapes.add_picture(imge_file,left,top,width,height)
参数分别为:
  • image_file  图片路径

  • left  左边距

  • top  上边距

  • width  图片显示宽度

  • height  图片显示高度

def insert_image(slide, pic_path, left, top, width=None, height=None, unit=Inches):
    """
    幻灯片中加入图片(包含静态图片和动态图片)
    :param unit: 单位默认为Inches
    :param pic_path: 文件路径
    :param slide: 幻灯片对象
    :param left: 左边距
    :param top:  上边距
    :param width: 宽度
    :param height: 高度
    :return:
    """

    # 注意:如果width、height都为None时,以图片原始大小展示
    width = unit(width) if width else None
    height = unit(height) if height else None

    pic_obj = slide.shapes.add_picture(image_file=pic_path,
                                       left=unit(left),
                                       top=unit(top),
                                       width=width,
                                       height=height)
    return pic_obj

def image_manage(self):
    """
    图片管理
    :return:
    """

    # 插入一张静态图片
    slide = add_slide(self.presentation, 6)

    # 图片路径
    image_path = './1.jpeg'

    # 插入本地图片
    insert_image(slide, image_path, 66, unit=Cm)

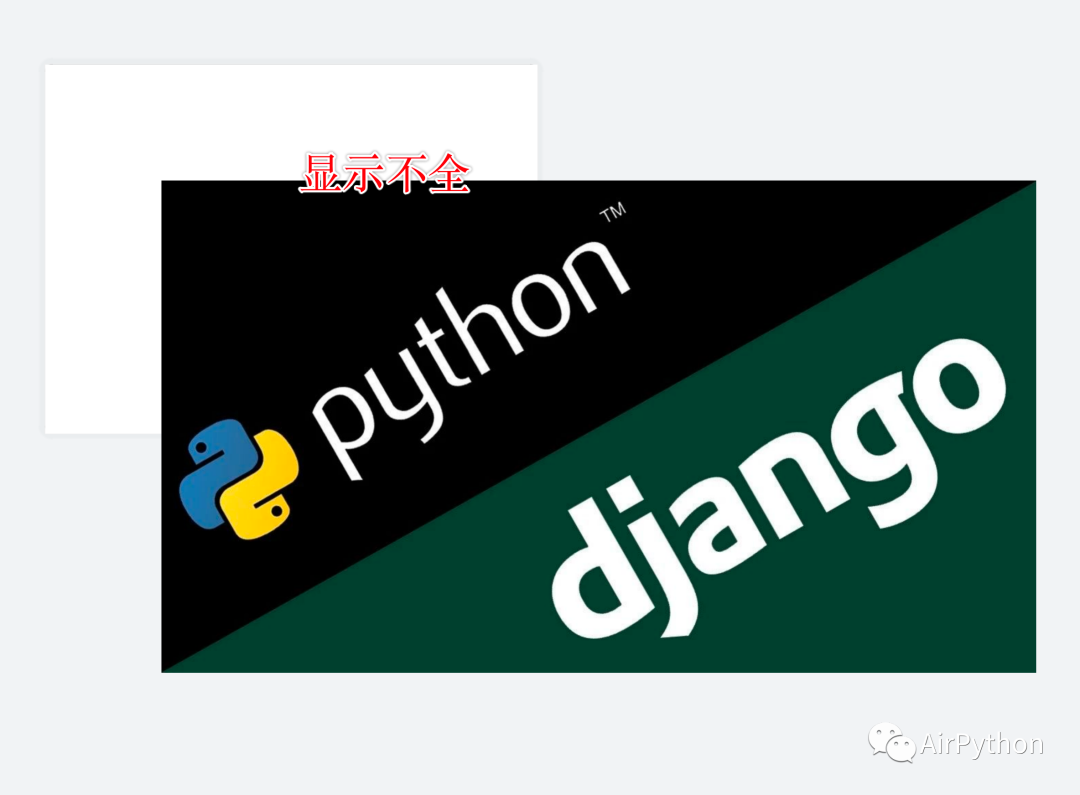

需要指出的是,当 width、height 不显式指定,默认值为 None,则按照图片真实大小去显示,当图片很大时,可能会出现展示不全的情况

因此,在实际项目中,我们只需要先获取图片的宽高比,然后等比例设置到宽度和高度参数中即可

from PIL import Image

def get_image_aspect_ratio(image_path):
    """
    获取图片的宽高比
    :param image_path:
    :return:
    """

    img = Image.open(image_path)

    # 图片类型:GIF
    image_format = img.format

    # 图片宽、高
    width, height = img.size

    # 图片宽高比
    aspect_ratio = width / height

    return aspect_ratio

# 获取宽、高比
aspect_ratio = get_image_aspect_ratio(image_path)

# 等比例插入图片到PPT中
insert_image(slide, image_path, 6666 / aspect_ratio, unit=Cm)

4. 视频 Video

往 PPT 文档中插入视频的方法如下

slide.shapes.add_movie(video_path,left,top,width,height,poster_frame_image)

参数分别为:

  • video_path  视频路径

  • left  左边距

  • top  上边距

  • width  视频显示宽度

  • height  视频显示高度

  • poster_frame_image  视频封面图路径

4-1  获取视频宽高比

为了保证视频在 PPT 中显示完全,我们需要先获取视频的宽、高比

推荐安装 moviepy 依赖库,获取视频的基本信息

# 安装依赖
pip3 install moviepy

接着,构造一个 VideoFileClip 对象,从中获取视频的宽度、高度

from moviepy.editor import VideoFileClip

def get_video_aspect_ratio_and_thumbnail_path(video_path, frame_index):
    """
    获取图片的宽、高比
    :param video_path: 视频路径
    :param frame_index 帧索引
    :return:
    """

    clip = VideoFileClip(video_path)

    # 视频的宽度、高度
    width, height = clip.size

    # 获取宽、高比
    aspect_ratio = width / height

4-2  获取视频帧

视频封面图,我们可以从视频中筛选中一帧,保存到本地

def get_video_frame(clip, frame_index):
    """
    获取视频的某一帧图片
    :param clip:
    :param frame_index:
    :return:
    """

    # 帧数目
    frame_count = math.floor(clip.fps * clip.duration)
    # print('视频帧数目:', frame_count)

    # 保证参数输入有效
    if frame_index 0 or frame_index > frame_count:
        frame_index = 1

    # 视频所有的帧
    frames = clip.iter_frames()
    # clip.get_frame()

    # 定义输出图片路径
    thumbnail_path = "{}/temp/{}.jpg".format(os.path.abspath(os.path.dirname(__file__)), random_str(10))

    # 遍历,找到对应的帧,保存到本地
    for index, frame in enumerate(frames):
        if frame_index == index:
            # 保持帧图片到本地
            im = Image.fromarray(frame)
            im.save(thumbnail_path)
            break

    return thumbnail_path

4-3  插入视频

最后,将插入视频的操作进行一次封装,传入视频封面图、左边距、上边距、显示宽度,即可以完成视频的插入动作

def insert_video(self):
    """
    插入视频
    :return:
    """

    slide = add_slide(self.presentation, 6)

    video_path = './1.mp4'

    # 获取图片宽高比,并保存一个临时的缩略图到本地
    aspect_ratio, thumbnail_path = get_video_aspect_ratio_and_thumbnail_path(video_path, 120)

    # 将视频插入到PPT中
    insert_video(slide, video_path, thumbnail_path, 3344 / aspect_ratio)

# 将视频插入到PPT中
insert_video(slide, video_path, thumbnail_path, 3344 / aspect_ratio)

5. 最后

本篇文章讲到了 PPT 文档中关于表格、图片、视频这 3 种常见内容的操作

我已经将全部源码上传到后台,关注公众号,后台回复「 ppt 」即可获得全部源码

如果你觉得文章还不错,请大家 点赞、分享、留言 下,因为这将是我持续输出更多优质文章的最强动力!
