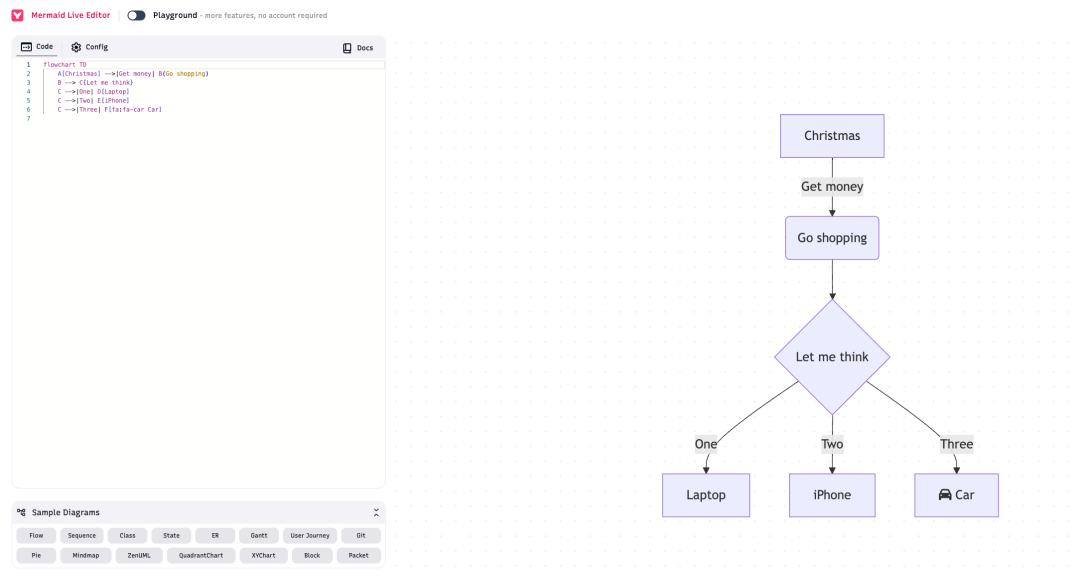

"mermaid"> flowchart LR A[开始] --> B{是否继续?} B -->|是| C[执行操作] B -->|否| D[结束] C --> B

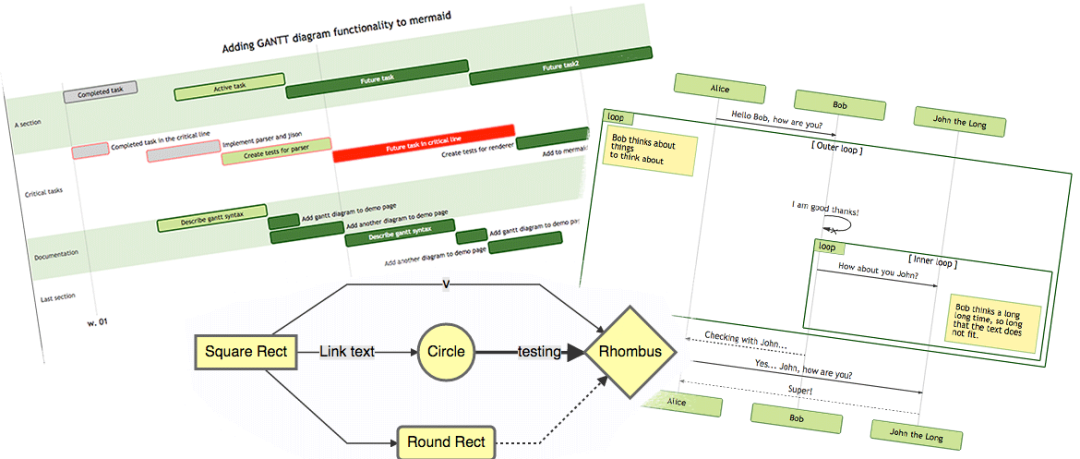

使用案例

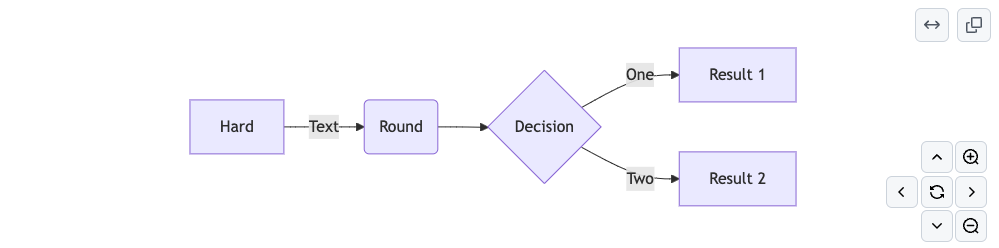

1、流程图
流程图用于表示工作流程或过程。Mermaid的流程图语法简洁明了
flowchart LR A[Hard] -->|Text| B(Round) B --> C{Decision} C -->|One| D[Result 1] C -->|Two| E[Result 2]

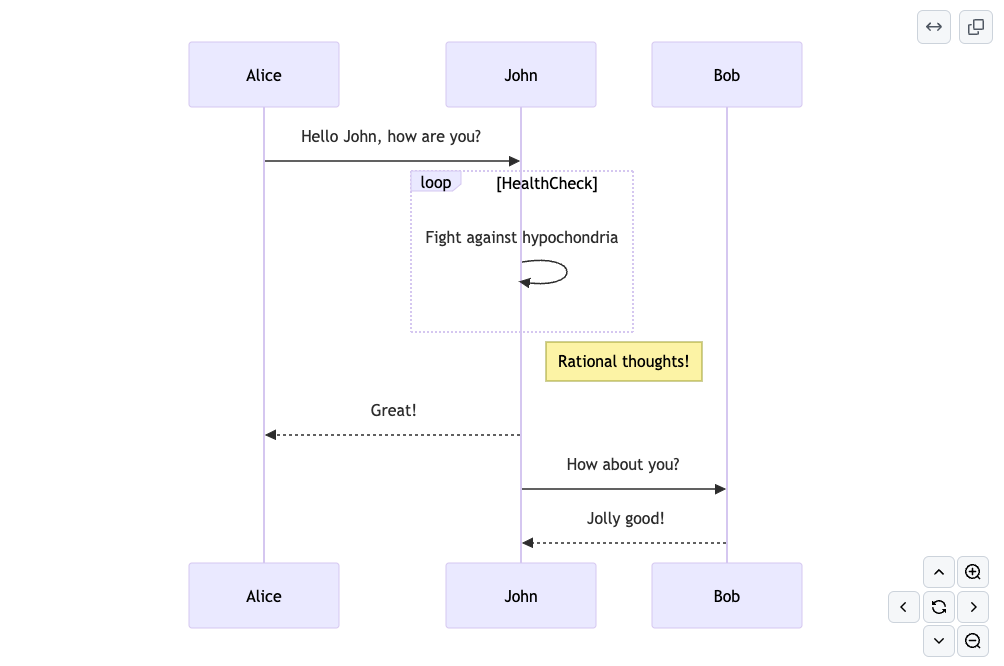

2、时序图
时序图展示对象之间的交互和消息传递顺序，特别适合描述系统组件间的通信
sequenceDiagram Alice->>John: Hello John, how are you? loop HealthCheck John->>John: Fight against hypochondria end Note right of John: Rational thoughts! John-->>Alice: Great! John->>Bob: How about you? Bob-->>John: Jolly good!

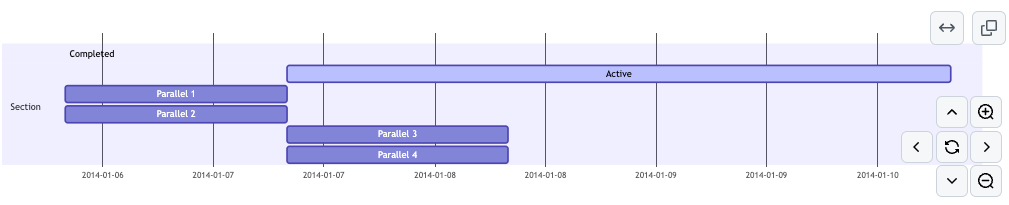

3、甘特图
甘特图用于项目管理，显示项目、任务和里程碑的时间线
gantt section Section Completed :done, des1, 2014-01-06,2014-01-08 Active :active, des2, 2014-01-07, 3d Parallel 1 : des3, after des1, 1d Parallel 2 : des4, after des1, 1d Parallel 3 : des5, after des3, 1d Parallel 4 : des6, after des4, 1d

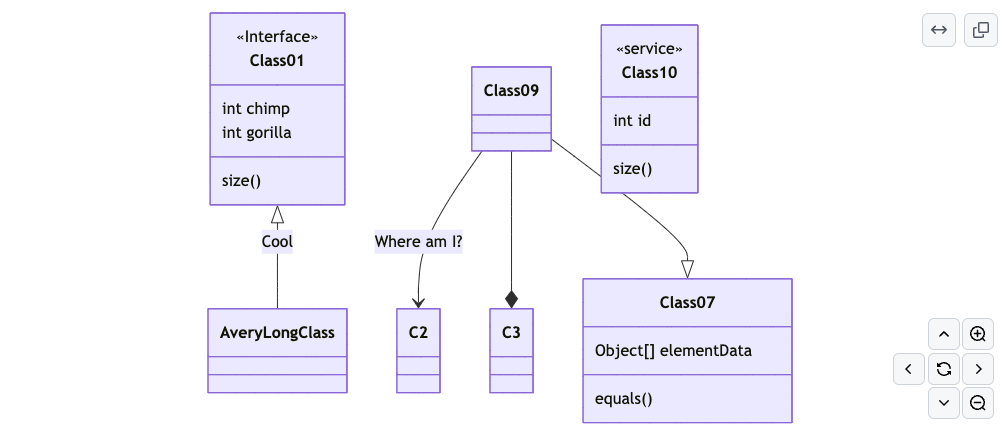

4、类图
类图用于描述系统的静态结构，展示类、接口及其关系
classDiagram Class01 <> Class01 Class09 --> C2 : Where am I? Class09 --* C3 Class09 --|> Class07 Class07 : equals() Class07 : Object[] elementData Class01 : size() Class01 : int chimp Class01 : int gorilla class Class10 { <> int id size() }

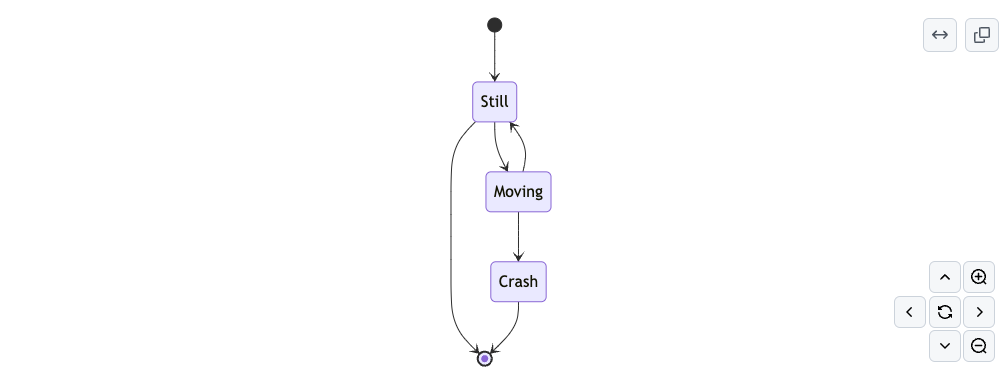

5、状态图
状态图描述对象在其生命周期中的不同状态及转换
stateDiagram-v2 [*] --> Still Still --> [*] Still --> Moving Moving --> Still Moving --> Crash Crash --> [*]

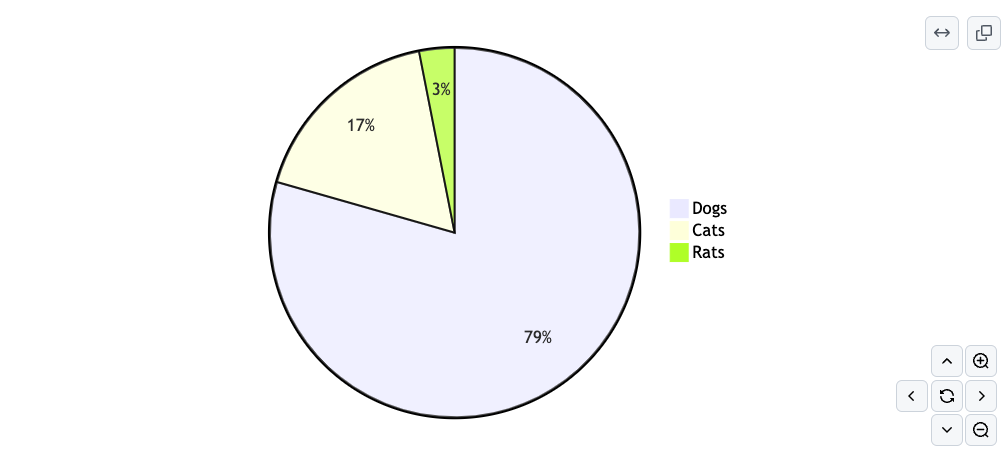

6、饼图
饼图用于展示数据的比例关系
pie "Dogs" : 386 "Cats" : 85 "Rats" : 15

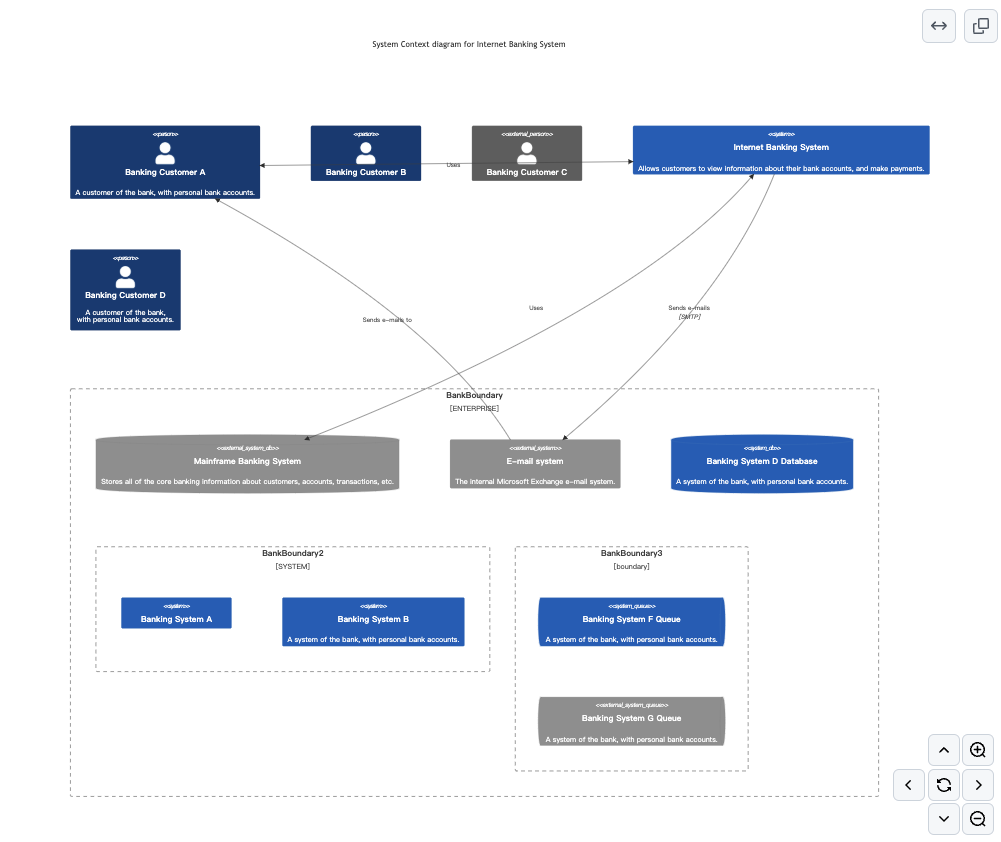

7、C4图
C4Context title System Context diagram for Internet Banking System Person(customerA, "Banking Customer A", "A customer of the bank, with personal bank accounts.") Person(customerB, "Banking Customer B") Person_Ext(customerC, "Banking Customer C") System(SystemAA, "Internet Banking System", "Allows customers to view information about their bank accounts, and make payments.") Person(customerD, "Banking Customer D", "A customer of the bank, with personal bank accounts.") Enterprise_Boundary(b1, "BankBoundary") { SystemDb_Ext(SystemE, "Mainframe Banking System", "Stores all of the core banking information about customers, accounts, transactions, etc.") System_Boundary(b2, "BankBoundary2") { System(SystemA, "Banking System A") System(SystemB, "Banking System B", "A system of the bank, with personal bank accounts.") } System_Ext(SystemC, "E-mail system", "The internal Microsoft Exchange e-mail system.") SystemDb(SystemD, "Banking System D Database", "A system of the bank, with personal bank accounts.") Boundary(b3, "BankBoundary3", "boundary") { SystemQueue(SystemF, "Banking System F Queue", "A system of the bank, with personal bank accounts.") SystemQueue_Ext(SystemG, "Banking System G Queue", "A system of the bank, with personal bank accounts.") } } BiRel(customerA, SystemAA, "Uses") BiRel(SystemAA, SystemE, "Uses") Rel(SystemAA, SystemC, "Sends e-mails", "SMTP") Rel(SystemC, customerA, "Sends e-mails to")
