之前系统梳理过大数据概念和基础知识 (可点击) ,本文基于PySpark在机器学习实践中的用法,希望对大数据学习的同学起到抛砖引玉的作用。(当数据集较小时,用Pandas足够,当数据量较大时,就需要利用分布式数据处理工具,Spark很适用)
1.PySpark简介Apache Spark是一个闪电般快速的实时处理框架。它进行内存计算以实时分析数据。由于Apache Hadoop MapReduce 仅执行批处理并且缺乏实时处理功能,因此它开始出现。因此,引入了Apache Spark,因为它可以实时执行流处理,也可以处理批处理。
Apache Spark是Scala语言实现的一个计算框架。为了支持Python语言使用Spark,Apache Spark社区开发了一个工具PySpark 。我们可以通过Python语言操作RDDs
RDD简介
RDD (Resiliennt Distributed Datasets)
•RDD = 弹性 + 分布式 Datasets
1)分布式,好处是让数据在不同工作节点并行存储,并行计算
2)弹性,指的节点存储时,既可以使用内存,也可以使用外存
•RDD还有个特性是延迟计算,也就是一个完整的RDD运行任务分成两部分:Transformation和Action
Spark RDD的特性:
弹性:计算过程中内存不够时,它会和磁盘进行数据交换 2.Pandas和PySpark对比可以参考这位作者的,详细的介绍了pyspark与pandas之间的区别: https://link.zhihu.com/?target=https%3A//blog.csdn.net/suzyu12345/article/details/79673483
3.PySpark实战小练数据集:从1994年人口普查数据库中提取。(后台回复“ 210323 ”可获取)
TO DO:预测一个人新收入是否会超过5万美金
参数说明:
创建SparkSession
from pyspark.sql import SparkSession spark=SparkSession.builder.appName('adult' ).getOrCreate()
读取数据
df = spark.read.csv('adult.csv' , inferSchema = True , header=True ) #读取csv文件 df.show(3 ) #用来显示前3行
注意:pyspark必须创建SparkSession才能像类似于pandas一样操作数据集
我们看看数据集:
cols = df.columns #和pandas一样看列名 df.printSchema()
root |-- age: integer (nullable = true) |-- workclass: string (nullable = true) |-- fnlwgt: integer (nullable = true) |-- education: string (nullable = true) |-- education-num: integer (nullable = true) |-- marital-status: string (nullable = true) |-- occupation: string (nullable = true) |-- relationship: string (nullable = true) |-- race: string (nullable = true) |-- sex: string (nullable = true) |-- capital-gain: integer (nullable = true) |-- capital-loss: integer (nullable = true) |-- hours-per-week: integer (nullable = true) |-- native-country: string (nullable = true) |-- income: string (nullable = true)
#找到所有的string类型的变量 #dtypes用来看数据变量类型 cat_features = [item[0 ] for item in df.dtypes if item[1 ]=='string' ]# 需要删除 income列,否则标签泄露 cat_features.remove('income' )#找到所有数字变量 num_features = [item[0 ] for item in df.dtypes if item[1 ]!='string' ]
对于类别变量我们需要进行编码,在pyspark中提供了StringIndexer, OneHotEncoder, VectorAssembler特征编码模式:
from pyspark.ml import Pipelinefrom pyspark.ml.feature import StringIndexer, OneHotEncoder, VectorAssembler stages = []for col in cat_features: # 字符串转成索引 string_index = StringIndexer(inputCol = col, outputCol = col + 'Index' ) # 转换为OneHot编码 encoder = OneHotEncoder(inputCols=[string_index.getOutputCol()], outputCols=[col + "_one_hot" ]) # 将每个字段的转换方式 放到stages中 stages += [string_index, encoder]# 将income转换为索引 label_string_index = StringIndexer(inputCol = 'income' , outputCol = 'label' )# 添加到stages中 stages += [label_string_index]# 类别变量 + 数值变量 assembler_cols = [c + "_one_hot" for c in cat_features] + num_features assembler = VectorAssembler(inputCols=assembler_cols, outputCol="features" ) stages += [assembler]# 使用pipeline完成数据处理 pipeline = Pipeline(stages=stages) pipeline_model = pipeline.fit(df) df = pipeline_model.transform(df) selected_cols = ["label" , "features" ] + cols df = df.select(selected_cols)

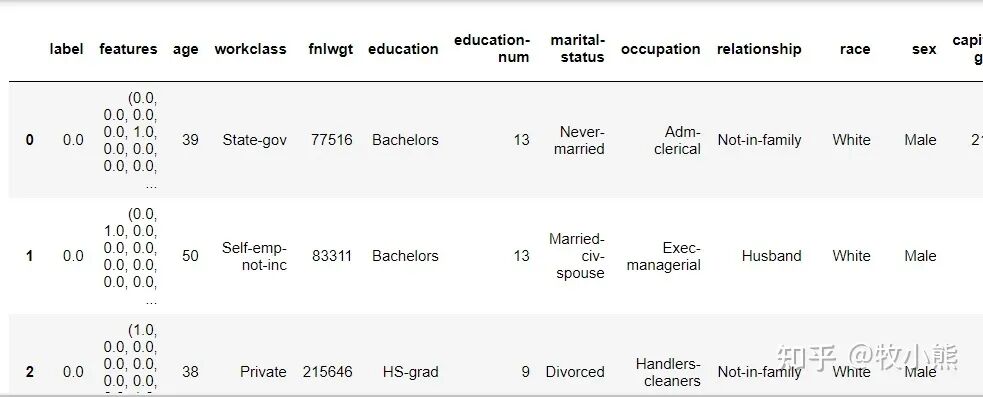

因为pyspark显示的数据比较像Mysql 那样不方便观看,因此我们转成pandas:
import pandas as pd pd.DataFrame(df.take(20 ), columns = df.columns)
通过pandas发现,好像还有较多字符串变量,难道特征编码失败了?
原来是使用VectorAssembler直接将特征转成了features这一列,pyspark做ML时 需要特征编码好了并做成向量列,
到这里,数据的特征工程就做好了。
分割数据集 测试集
train, test = df.randomSplit([0.7 , 0.3 ], seed=2021 ) print(train.count()) print(test.count())
22795 9766
可以看到,训练集和测试集安装7:3的比例分割了,接下来就是构建模型进行训练。
逻辑回归
from pyspark.ml.classification import LogisticRegression# 创建模型 lr = LogisticRegression(featuresCol = 'features' , labelCol = 'label' ,maxIter=10 ) lr_model = lr.fit(train)
可以看到ML的用法和sklearn非常的像,因此使用起来也是相当的方便。
#结果预测 predictions = lr_model.transform(test)
看看predictions的结构
predictions.printSchema()
root |-- label: double (nullable = false) |-- features: vector (nullable = true) |-- age: integer (nullable = true) |-- workclass: string (nullable = true) |-- fnlwgt: integer (nullable = true) |-- education: string (nullable = true) |-- education-num: integer (nullable = true) |-- marital-status: string (nullable = true) |-- occupation: string (nullable = true) |-- relationship: string (nullable = true) |-- race: string (nullable = true) |-- sex: string (nullable = true) |-- capital-gain: integer (nullable = true) |-- capital-loss: integer (nullable = true) |-- hours-per-week: integer (nullable = true) |-- native-country: string (nullable = true) |-- income: string (nullable = true) |-- rawPrediction: vector (nullable = true) |-- probability: vector (nullable = true) |-- prediction: double (nullable = false)
抽取需要的信息

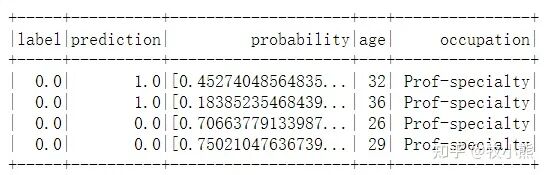

selected = predictions.select("label" , "prediction" , "probability" , "age" , "occupation" ) display(selected) selected.show(4 )
技术AUC值
from pyspark.ml.evaluation import BinaryClassificationEvaluator# 模型评估,通过原始数据 rawPrediction计算AUC evaluator = BinaryClassificationEvaluator(rawPredictionCol="rawPrediction" ) print('AUC:' , evaluator.evaluate(predictions))
AUC:0.9062153434371653
进行网格调参
from pyspark.ml.tuning import ParamGridBuilder, CrossValidator# 创建网络参数,用于交叉验证 param_grid = (ParamGridBuilder() .addGrid(lr.regParam, [0.01 , 0.5 , 2.0 ]) .addGrid(lr.elasticNetParam, [0.0 , 0.5 , 1.0 ]) .addGrid(lr.maxIter, [1 , 5 , 10 ]) .build())# 五折交叉验证,设置模型,网格参数,验证方法,折数 cv = CrossValidator(estimator=lr, estimatorParamMaps=param_grid, evaluator=evaluator, numFolds=5 )# 交叉验证运行 cv_model = cv.fit(train)# 对于测试数据,使用五折交叉验证 predictions = cv_model.transform(test) print('AUC:' , evaluator.evaluate(predictions))
AUC:0.9054096433333642
决策树模型
from pyspark.ml.classification import DecisionTreeClassifier# 创建决策树模型 dt = DecisionTreeClassifier(featuresCol = 'features' , labelCol = 'label' , maxDepth = 3 ) dt_model = dt.fit(train)#查看决策树结构 print(dt_model._call_java('toDebugString' ))
DecisionTreeClassificationModel: uid=DecisionTreeClassifier_4bd113e9a3c2, depth=3, numNodes=11, numClasses=2, numFeatures=100 If (feature 23 in {0.0}) If (feature 97 <= 7792.0) Predict: 0.0 Else (feature 97 > 7792.0) If (feature 94 <= 19.5) Predict: 0.0 Else (feature 94 > 19.5) Predict: 1.0 Else (feature 23 not in {0.0}) If (feature 96 <= 12.5) If (feature 97 <= 3368.0) Predict: 0.0 Else (feature 97 > 3368.0) Predict: 1.0 Else (feature 96 > 12.5) Predict: 1.0
predictions = dt_model.transform(test) predictions.printSchema()
root |-- label: double (nullable = false) |-- features: vector (nullable = true) |-- age: integer (nullable = true) |-- workclass: string (nullable = true) |-- fnlwgt: integer (nullable = true) |-- education: string (nullable = true) |-- education-num: integer (nullable = true) |-- marital-status: string (nullable = true) |-- occupation: string (nullable = true) |-- relationship: string (nullable = true) |-- race: string (nullable = true) |-- sex: string (nullable = true) |-- capital-gain: integer (nullable = true) |-- capital-loss: integer (nullable = true) |-- hours-per-week: integer (nullable = true) |-- native-country: string (nullable = true) |-- income: string (nullable = true) |-- rawPrediction: vector (nullable = true) |-- probability: vector (nullable = true) |-- prediction: double (nullable = false)
#计算AUC值 from pyspark.ml.evaluation import BinaryClassificationEvaluator evaluator = BinaryClassificationEvaluator() evaluator.evaluate(predictions)
0.7455098804457034
网格搜参数
from pyspark.ml.tuning import ParamGridBuilder, CrossValidator param_grid = (ParamGridBuilder() .addGrid(dt.maxDepth, [1 , 2 , 6 , 10 ]) .addGrid(dt.maxBins, [20 , 40 , 80 ]) .build())# 设置五折交叉验证 cv = CrossValidator(estimator=dt, estimatorParamMaps=param_grid, evaluator=evaluator, numFolds=5 )# 运行cv cv_model = cv.fit(train)# 查看最优模型 print("numNodes = " , cv_model.bestModel.numNodes) print("depth = " , cv_model.bestModel.depth)
numNodes = 429 depth = 10
# 使用五折交叉验证进行预测 predictions = cv_model.transform(test) evaluator.evaluate(predictions)
0.7850384321616918
随机森林
from pyspark.ml.classification import RandomForestClassifier# 随机森林 rf = RandomForestClassifier(featuresCol = 'features' , labelCol = 'label' ) rf_model = rf.fit(train) predictions = rf_model.transform(test) predictions.printSchema() selected = predictions.select("label" , "prediction" , "probability" , "age" , "occupation" ) display(selected) evaluator = BinaryClassificationEvaluator() evaluator.evaluate(predictions)
0.8932162982538805
一样的方法
param_grid = (ParamGridBuilder() .addGrid(rf.maxDepth, [3 , 5 , 7 ]) .addGrid(rf.maxBins, [20 , 50 ]) .addGrid(rf.numTrees, [5 , 10 ]) .build()) cv = CrossValidator(estimator=rf, estimatorParamMaps=param_grid, evaluator=evaluator, numFolds=5 )# 运行CV(大约6分钟) cv_model = cv.fit(train) predictions = cv_model.transform(test) evaluator.evaluate(predictions)
0.8948376797236669
查看模型的结构和特征重要性
best_model
RandomForestClassificationModel: uid=RandomForestClassifier_15bbbdd6642a, numTrees=10, numClasses=2, numFeatures=100
best_model.featureImportances
太长了省略

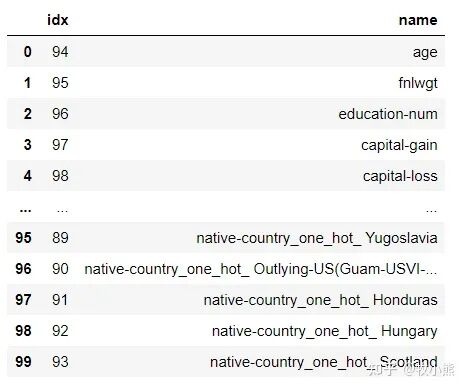

df.schema['features' ].metadata temp = df.schema["features" ].metadata["ml_attr" ]["attrs" ] df_importance = pd.DataFrame(columns=['idx' , 'name' ])for attr in temp['numeric' ]: temp_df = {} temp_df['idx' ] = attr['idx' ] temp_df['name' ] = attr['name' ] #print(temp_df) df_importance = df_importance.append(temp_df, ignore_index=True ) #print(attr['idx'], attr['name']) #print(attr) #break df_importance
for attr in temp['binary' ]: temp_df = {} temp_df['idx' ] = attr['idx' ] temp_df['name' ] = attr['name' ] df_importance = df_importance.append(temp_df, ignore_index=True ) df_importance

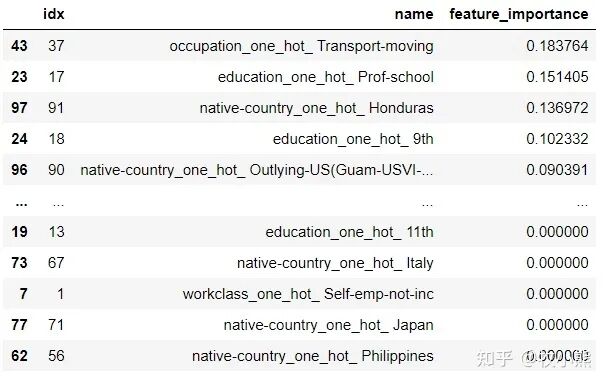

对特征重要性进行可视化
df_temp = pd.DataFrame(best_model.featureImportances.toArray()) df_temp.columns = ['feature_importance' ] df_importance = df_importance.merge(df_temp, left_index=True , right_index=True ) df_importance.sort_values(by=['feature_importance' ], ascending=False , inplace=True ) df_importance
4.小结本节选用了一个常规的数据集,需要通过UCI提供的数据预测个人收入是否会大于5万,本节用PySpark对数据进行了读取,特征的编码以及特征的构建,并分别使用了逻辑回归、决策树以及随机森林算法展示数据预测的过程。
spark通过封装成pyspark后使用难度降低了很多,而且pyspark的ML包提供了基本的机器学习模型,可以直接使用,模型的使用方法和sklearn比较相似,因此学习成本较低。
