Nginx 一个牛 X 的功能,流量拷贝!

鸭哥聊Java • 2 年前 • 306 次点击

大家好,我是鸭哥。


1. 需求

将生产环境的流量拷贝到预上线环境或测试环境,这样做有很多好处,比如:


  • 可以验证功能是否正常,以及服务的性能;
  • 用真实有效的流量请求去验证,又不用造数据,不影响线上正常访问;
  • 这跟灰度发布还不太一样,镜像流量不会影响真实流量;
  • 可以用来排查线上问题;
  • 重构,假如服务做了重构,这也是一种测试方式;


为了实现流量拷贝,Nginx提供了ngx_http_mirror_module模块


2. 安装Nginx


首页,设置yum仓库。


为此,创建一个文件/etc/yum.repos.d/nginx.repo


将以下内容写入文件

[nginx-stable]name=nginx stable repobaseurl=http://nginx.org/packages/centos/$releasever/$basearch/gpgcheck=1enabled=1gpgkey=https://nginx.org/keys/nginx_signing.keymodule_hotfixes=true
[nginx-mainline]name=nginx mainline repobaseurl=http://nginx.org/packages/mainline/centos/$releasever/$basearch/gpgcheck=1enabled=0gpgkey=https://nginx.org/keys/nginx_signing.keymodule_hotfixes=true

yum安装nginx

yum install nginx

默认情况下,nginx配置文件是nginx.conf


一般情况下,nginx.conf文件在 /usr/local/nginx/conf 或者 /etc/nginx 或者 /usr/local/etc/nginx 目录下


为了启动nginx,直接在命令行里输入nginx回车即可

# 启动nginxnginx# fast shutdownnginx -s stop# graceful shutdownnginx -s quit# reloading the configuration filenginx -s reload# reopening the log filesnginx -s reopen# list of all running nginx processesps -ax | grep nginx



一旦master进程接收到重新加载配置的信号,它将检查新配置文件的语法是否正确,并尝试应用其中提供的配置。如果成功,master进程将启动新的worker进程,并发送消息给旧的worker进程,要求他们shutdown。否则,master进程将回滚所做的更改,并继续使用旧配置。旧的worker进程在接收到关闭命令后,停止接受新的连接,直到所有之前已经接受的连接全部处理完为止。之后,旧的worker进程退出。

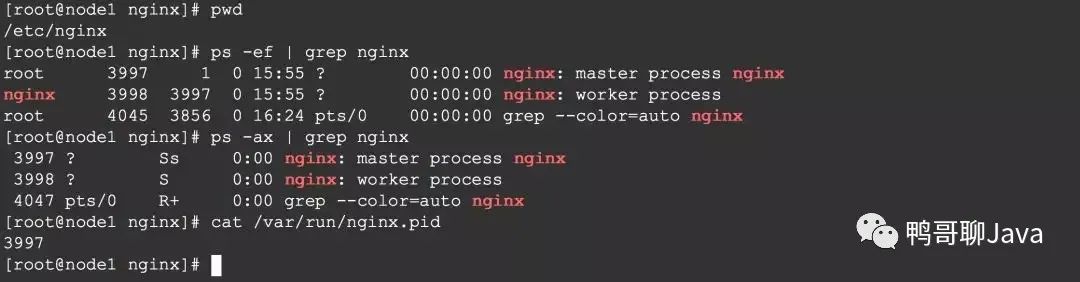

nginx的master进程的进程ID,默认情况下,放在nginx.pid文件中,该文件所在的目录一般是/usr/local/nginx/logs 或者 /var/run


还可以这样停止nginx

kill -s QUIT 3997

初始配置文件长这样:

user  nginx;worker_processes  1;
error_log /var/log/nginx/error.log warn;pid /var/run/nginx.pid;

events { worker_connections 1024;}

http { include /etc/nginx/mime.types; default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on; #tcp_nopush on;
keepalive_timeout 65;
#gzip on;
include /etc/nginx/conf.d/*.conf;}

3. ngx_http_mirror_module


The ngx_http_mirror_module module (1.13.4) implements mirroring of an original request by creating background mirror subrequests. Responses to mirror subrequests are ignored.

我是这样理解的,这里,mirror本意是镜子、镜像,这里可以理解就像一个镜像站点一样,将所有的请求都收集起来,这个镜像就代表了所有真实有效的原始请求。


有了这个镜像,后续我们才可能用这个镜像去做一些事情,比如重现一下所有的请求,这就实现了把线上的流程复制到别的地方。


官网给出的示例倒是很简单,如下:

location / {    mirror /mirror;    proxy_pass http://backend;}
location = /mirror { internal; proxy_pass http://test_backend$request_uri;}

如果请求体被镜像,那么在创建子请求之前会先读取请求体

location / {    mirror /mirror;    mirror_request_body off;    proxy_pass http://backend;}
location = /mirror { internal; proxy_pass http://log_backend; proxy_pass_request_body off; proxy_set_header Content-Length ""; proxy_set_header X-Original-URI $request_uri;}

前面我们安装了Nginx,但是里面没有包含我们所需的ngx_http_mirror_module模块,因此,真正要使用的时候最好还是采用自定义安装,即从源码构建


首先,下载源码 http://nginx.org/en/download.html


接下来,编译安装,例如:

./configure    --sbin-path=/usr/local/nginx/nginx    --conf-path=/usr/local/nginx/nginx.conf    --pid-path=/usr/local/nginx/nginx.pid    --with-http_ssl_module    --without-http_limit_req_module    --without-http_mirror_module    --with-pcre=../pcre-8.43    --with-zlib=../zlib-1.2.11    --add-module=/path/to/ngx_devel_kit    --add-module=/path/to/lua-nginx-module
make & make install

配置

upstream api.abc.com {  server 127.0.0.1:8080;}
upstream tapi.abc.com { server 127.0.0.1:8081;}
server { listen 80;   # 源站点 location /api { proxy_pass http://api.cjs.com; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
# 流量复制 mirror /newapi; mirror /mirror2; mirror /mirror3;
# 复制请求体 mirror_request_body on; }
# 镜像站点 location /tapi { proxy_pass http://tapi.cjs.com$request_uri; proxy_pass_request_body on; proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; }}

4. 文档


Nginx文档


http://nginx.org/en/docs/


http://nginx.org/en/docs/http/ngx_http_mirror_module.html


http://nginx.org/en/docs/beginners_guide.html


http://nginx.org/en/docs/http/ngx_http_core_module.html#location


http://nginx.org/en/docs/configure.html


第三方模板


http://luajit.org/


https://www.nginx.com/resources/wiki/


https://www.nginx.com/resources/wiki/modules/lua/


https://www.nginx.com/resources/wiki/modules/index.html


https://github.com/openresty/lua-nginx-module


补充

# 查看进程运行时间ps -eo pid,user,lstart,etime,cmd | grep nginx# 查看已经建立连接的数量netstat -an | grep ESTABLISHED | wc -l# 查看80端口的连接数netstat -an | grep ":80" | wc -l
