Dapr牵手.NET学习笔记：状态管理之docker-compose发布

说明：为了给出demo的全貌，这篇有点长，如果有上一篇的基础，会更容易阅读一些。

在分布式应用，有状态服务是常态，特别是多副本应用，就需要共用缓存来解决数据统一的状况，所以dapr也把状态管理做成一个标准组件。

下面通过docker-compose来发布OrderSystem项目和PaymentSystem项目，他们分别有自己的状态数据，并且测试它们之间的访问性。

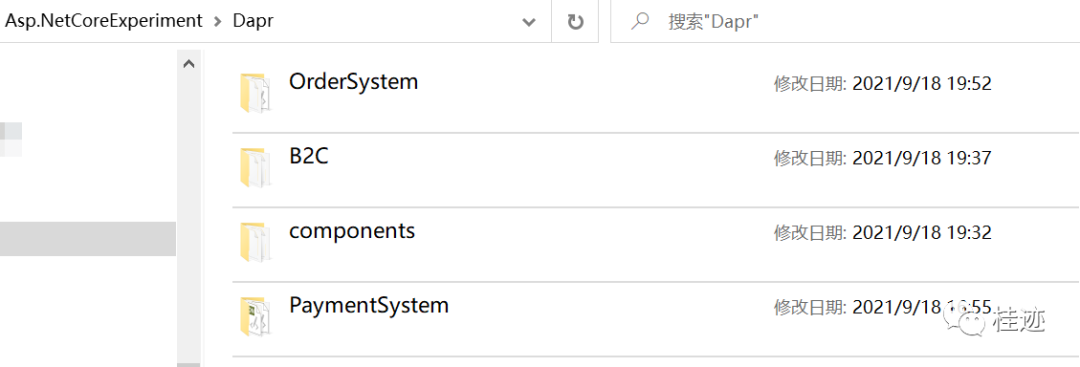

下面是项目的目录结构，components文件是dapr组件配置文件夹，B2C是docker-compose的文件夹

OrderSystem项目

HomeController.cs

using Microsoft.AspNetCore.Mvc;using Microsoft.Extensions.Configuration;using Microsoft.Extensions.Logging;using System;using System.Net;using System.Net.Http;using System.Threading.Tasks;
namespace OrderSystem.Controllers;[ApiController][Route("[controller]")]public class HomeController : ControllerBase{    private readonly ILogger _logger;    private readonly IHttpClientFactory _clientFactory;    private readonly string? _payUrl;    private readonly string _stateUrl;    public HomeController(ILogger logger, IHttpClientFactory clientFactory, IConfiguration configuration)    {        _stateUrl = configuration.GetSection("StateUrl").Value;        _payUrl = configuration.GetSection("payurl").Value;        _clientFactory = clientFactory;        _logger = logger;    }    [HttpGet("/order")]    public async Task Order()    {        try        {            _logger.LogInformation($"下单开始");            await Task.Delay(400);            _logger.LogInformation($"订单完成   调用支付系统");            var client = _clientFactory.CreateClient();            var content = await client.GetStringAsync(_payUrl);            return new JsonResult(new { order_result = "订单成功", pay_result = content });        }        catch (Exception exc)        {            _logger.LogCritical(exc, exc.Message);            return new JsonResult(new { order_result = "订单成功，支付失败", message = exc.Message });        }    }






    [HttpPost("/writekeys")]    public async Task WriteKeys([FromBody] KeyEntity[] keys)    {        var client = _clientFactory.CreateClient();        var jsonContent = System.Text.Json.JsonSerializer.Serialize(keys);        var content = new StringContent(jsonContent);        var response = await client.PostAsync(_stateUrl, content);        return Ok(await response.Content.ReadAsStringAsync());    }
    [HttpGet("/readekey/{key}")]    public async Task ReadKey(string key)    {        var client = _clientFactory.CreateClient();        var response = await client.GetAsync($"{_stateUrl}/{key}");        return new JsonResult(new { key = await response.Content.ReadAsStringAsync(), host = Dns.GetHostName() });    }    [HttpPost("/readekeys")]    public async Task ReadKeys([FromBody] string[] keys)    {        var client = _clientFactory.CreateClient();        var jsonContent = System.Text.Json.JsonSerializer.Serialize(keys);        var content = new StringContent(jsonContent);        var response = await client.PostAsync($"{_stateUrl}/bulk", content);        return Ok(await response.Content.ReadAsStringAsync());    }
    [HttpDelete("/deletekey/{key}")]    public async Task DeleteData(string key)    {        var client = _clientFactory.CreateClient();        var response = await client.DeleteAsync($"{_stateUrl}/{key}");        return Ok(await response.Content.ReadAsStringAsync());    }}public class KeyEntity{    public string Key { get; set; }    public string Value { get; set; }}

appsettings.json

{  "Urls": "http://*:80",  "Logging": {    "LogLevel": {      "Default": "Information",      "Microsoft": "Warning",      "Microsoft.Hosting.Lifetime": "Information"    }  },  "AllowedHosts": "*",  "PayUrl": "http://localhost:3500/v1.0/invoke/pay/method/pay",  "StateUrl": "http://localhost:3500/v1.0/state/statestore"}

OrderSystem项目的Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS baseWORKDIR /appEXPOSE 80
FROM mcr.microsoft.com/dotnet/sdk:6.0 AS buildWORKDIR /srcCOPY ["/OrderSystem/OrderSystem.csproj", "OrderSystem/"]RUN dotnet restore "OrderSystem/OrderSystem.csproj"COPY . .WORKDIR "/src/OrderSystem"RUN dotnet build "OrderSystem.csproj" -c Release -o /app/build
FROM build AS publishRUN dotnet publish "OrderSystem.csproj" -c Release -o /app/publish
FROM base AS finalWORKDIR /app



COPY --from=publish /app/publish .ENTRYPOINT ["dotnet", "OrderSystem.dll"]

PaymentSystem项目

HomeControllers.cs与OrderSystem的状态代码是一样的，这里就不占篇幅。

PaymentSystem项目的appsettings.json

{  "Urls": "http://*:80",  "Logging": {    "LogLevel": {      "Default": "Information",      "Microsoft": "Warning",      "Microsoft.Hosting.Lifetime": "Information"    }  },  "AllowedHosts": "*",  "StateUrl": "http://localhost:3500/v1.0/state/statestore"}

PaymentSystem项目的Dockerfile

FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS baseWORKDIR /appEXPOSE 80
FROM mcr.microsoft.com/dotnet/sdk:6.0 AS buildWORKDIR /srcCOPY ["/PaymentSystem/PaymentSystem.csproj", "PaymentSystem/"]RUN dotnet restore "PaymentSystem/PaymentSystem.csproj"COPY . .WORKDIR "/src/PaymentSystem"RUN dotnet build "PaymentSystem.csproj" -c Release -o /app/build
FROM build AS publishRUN dotnet publish "PaymentSystem.csproj" -c Release -o /app/publish
FROM base AS finalWORKDIR /appCOPY --from=publish /app/publish .ENTRYPOINT ["dotnet", "PaymentSystem.dll"]

OrderSystem项目和PaymentSystem项目的Dockerfile中的路径要和docker-compose.yml中的设置有关，所以分享出来，以供参考。

B2C

docker-compose.yml，这里定义了一个b2c-dapr，作为互通网络，打通应用与redis等服务的通道。其中ordersystem对宿主机的端口还是3500，paymentsystem对宿主机的端口分别是3601，3602

version: '3.4'
services:  #┌────────────────────────────────┐  #│ ordersystem app + Dapr sidecar │  #└────────────────────────────────┘  ordersystem:    image: ${DOCKER_REGISTRY-}ordersystem    depends_on:      - redis      - placement    build:      context: ../      dockerfile: /OrderSystem/Dockerfile    ports:      - "3500:3500"    volumes:         - ../OrderSystem:/OrderSystem      networks:      - b2c-dapr  ordersystem-dapr:     image: "daprio/daprd:latest"     command: [ "./daprd", "-app-id", "order", "-app-port", "80","-placement-host-address", "placement:50006","-components-path","/components"]     build:       context: ../     depends_on:       - ordersystem     network_mode: "service:ordersystem"     volumes:         - ../components:/components



    #┌───────────────────────────────────┐  #│ paymentsystem1 app + Dapr sidecar │  #└───────────────────────────────────┘    paymentsystem1:    image: ${DOCKER_REGISTRY-}paymentsystem    build:      context: ../      dockerfile: /PaymentSystem/Dockerfile    ports:      - "3601:3500"    volumes:         - ../PaymentSystem:/PaymentSystem          networks:      - b2c-dapr        paymentsystem1-dapr:     image: "daprio/daprd:latest"     command: [ "./daprd", "-app-id", "pay", "-app-port", "80","-placement-host-address", "placement:50006","-components-path","/components" ]     build:       context: ../     depends_on:       - paymentsystem1     network_mode: "service:paymentsystem1"     volumes:         - ../components:/components    #┌───────────────────────────────────┐  #│ paymentsystem2 app + Dapr sidecar │  #└───────────────────────────────────┘     paymentsystem2:    image: ${DOCKER_REGISTRY-}paymentsystem    build:      context: ../      dockerfile: /PaymentSystem/Dockerfile    volumes:         - ../PaymentSystem:/PaymentSystem                ports:      - "3602:3500"    networks:      - b2c-dapr        paymentsystem2-dapr:     image: "daprio/daprd:latest"     command: [ "./daprd", "-app-id", "pay", "-app-port", "80" ,"-placement-host-address", "placement:50006","-components-path","/components"]     build:       context: ../     depends_on:       - paymentsystem2     network_mode: "service:paymentsystem2"     volumes:         - ../components:/components
  #┌────────────────────────┐  #│ Dapr placement service │  #└────────────────────────┘    placement:    image: "daprio/dapr"    command: ["./placement", "-port", "50006"]    ports:      - "50006:50006"    networks:      - b2c-dapr
  #┌───────────────────┐  #│ Redis state store │  #└───────────────────┘    redis:



    image: "redis:latest"    ports:      - "6380:6379"    networks:      - b2c-daprnetworks:    b2c-dapr:

Dapr组件配置

statestore.yaml，其中value的值要改成redis，而不是localhost，这里要连接同一个网络里的redis服务

apiVersion: dapr.io/v1alpha1kind: Componentmetadata:  name: statestorespec:  type: state.redis  version: v1  metadata:  - name: redisHost    value: redis:6379  - name: redisPassword    value: ""  - name: actorStateStore    value: "true"

启动docker-compose

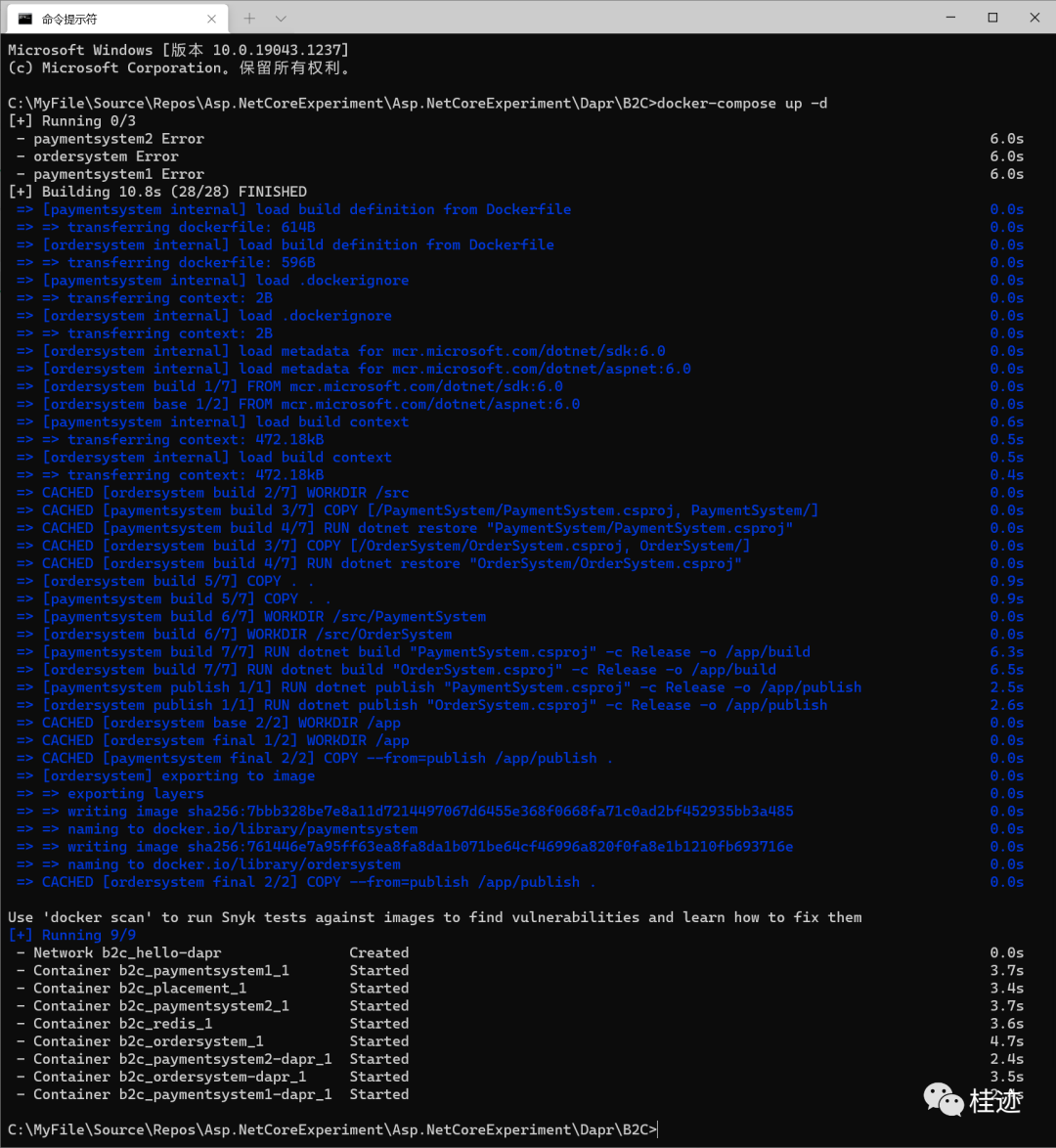

docker-compose up -d

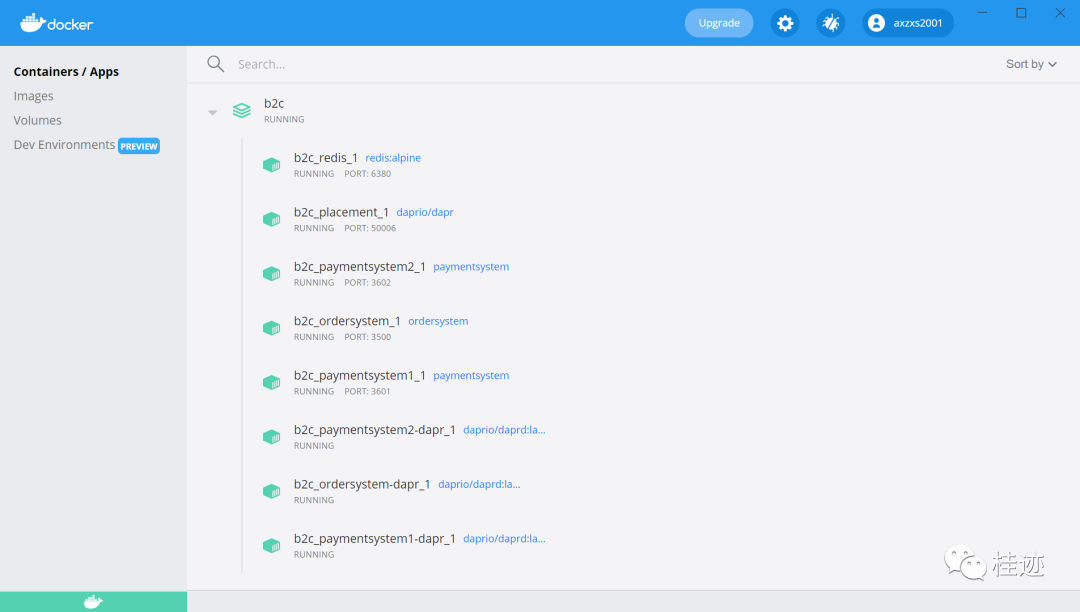

启动后各服务的状态

测试：

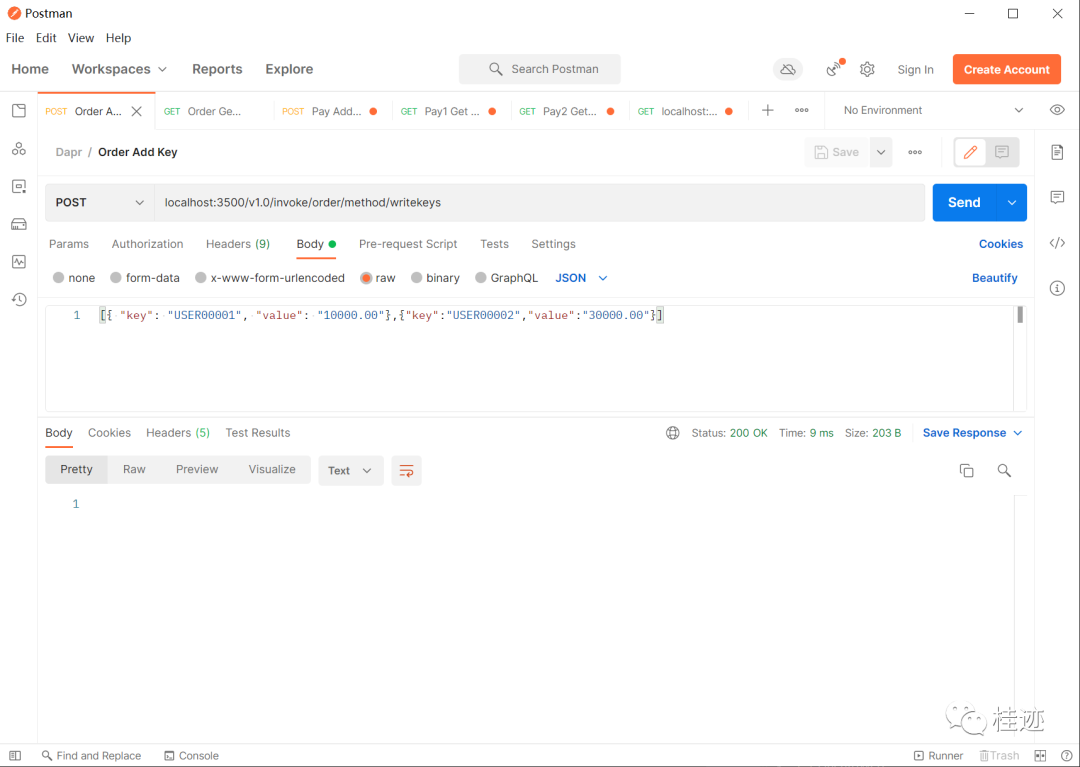

对order服务进行设置状态，这里调用的是dpar服务调用对外的接口，3500是order服务sidecar对外端口。

同理调用order服务的状态数据，返回设置的值

接下来测试从pay服务中调用order服务的状态，返回结果为空，这里的地址为：localhost:3601/v1.0/invoke/pay/method/readekey/USER00001

下面换成从pay1服务的3601中访问order服务的状态，结果有值，url为localhost:3601/v1.0/invoke/order/method/readekey/USER00001，根本原因可能你想到了，这本质上调的还是order服务的接口，只不过是利用pay1的sidecar调用order的sidecar实现的，因为服务调用是通着，所以能调用到，这里可以通过查看返回的host值证明。

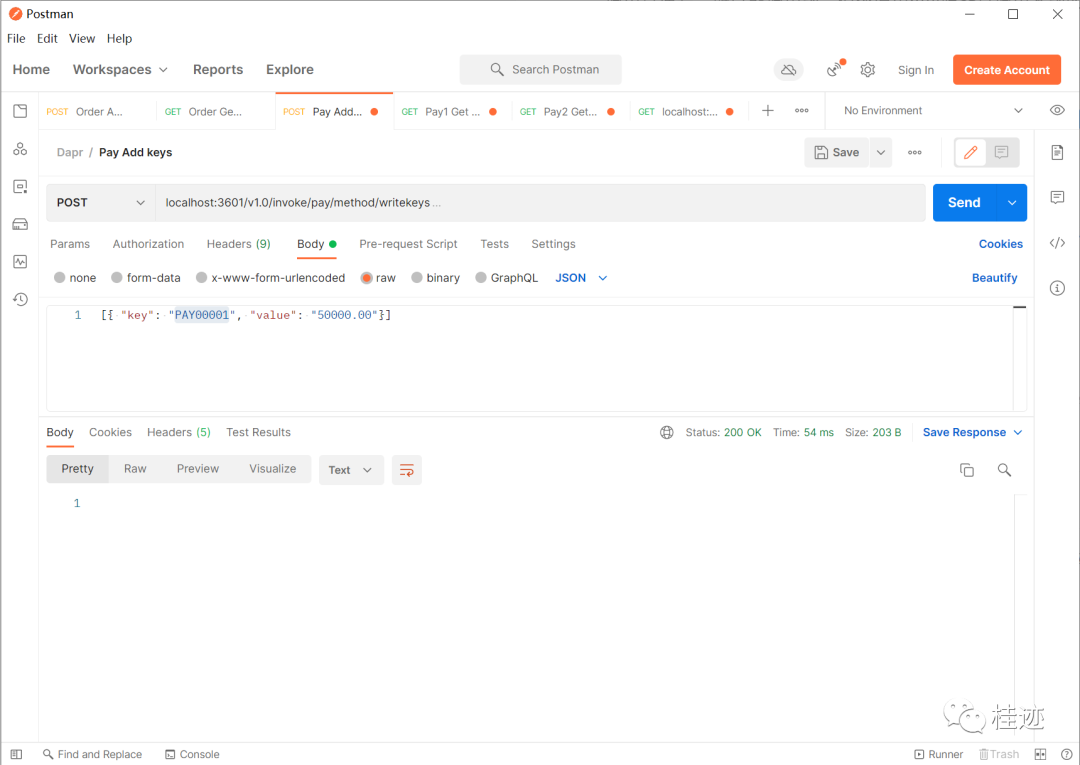

接下来测试pay服务，两个副本，访问状态数据的case。下面是通过3601设置状态。

通过pay1的sidecar对外端口访问，url是localhost:3601/v1.0/invoke/pay/method/readekey/PAY00001

通过pay2的sidecar对外端口访问，url是localhost:3602/v1.0/invoke/pay/method/readekey/PAY00001

可见状态数据很好的被隔了，如果跨服务访问状态数据，可以通过服务开放api来实现。

最后看一眼redis数据吧,清晰的展示了服务和数据的关系。
