defrelight(img, light=1, bias=0): w = img.shape[1] h = img.shape[0] #image = [] for i in range(0,w): for j in range(0,h): for c in range(3): tmp = int(img[j,i,c]*light + bias) if tmp > 255: tmp = 255 elif tmp 0:
tmp = 0 img[j,i,c] = tmp return img
for i, d in enumerate(dets): x1 = d.top() if d.top() > 0else0 y1 = d.bottom() if d.bottom() > 0else0 x2 = d.left() if d.left() > 0else0 y2 = d.right() if d.right() > 0else0
face = img[x1:y1,x2:y2] # 调整图片的对比度与亮度， 对比度与亮度值都取随机数，这样能增加样本的多样性 face = relight(face, random.uniform(0.5, 1.5), random.randint(-50, 50))
index += 1 key = cv2.waitKey(30) & 0xff if key == 27: break else: print('Finished!') # 释放摄像头 release camera camera.release() # 删除建立的窗口 delete all the windows cv2.destroyAllWindows() break
# Dlib 人脸识别模型 # Face recognition model, the object maps human faces into 128D vectors face_rec = dlib.face_recognition_model_v1("D:/No1WorkSpace/JupyterNotebook/model/dlib_face_recognition_resnet_model_v1.dat")

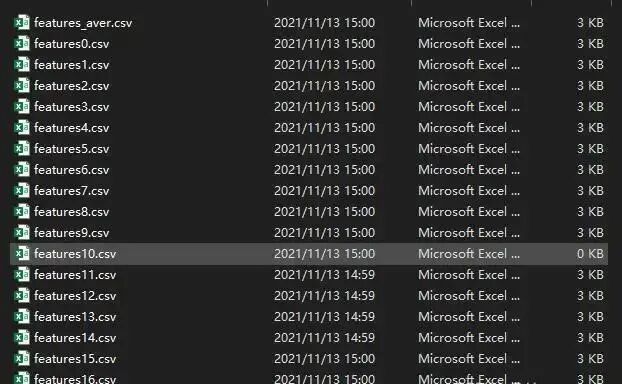

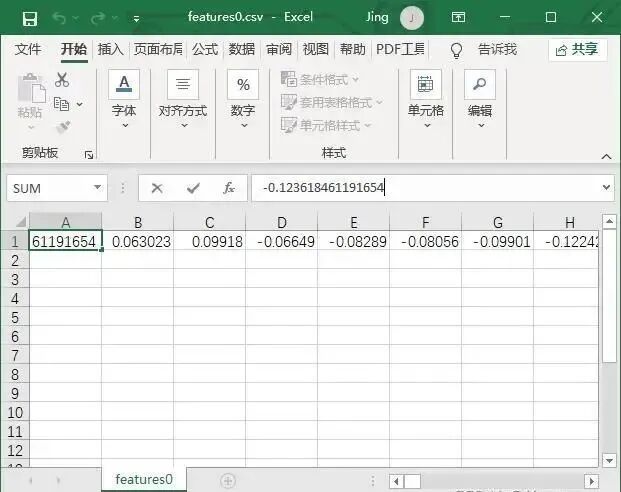

# 将文件夹中照片特征提取出来, 写入 CSV defreturn_features_mean_personX(path_faces_personX): features_list_personX = [] photos_list = os.listdir(path_faces_personX) if photos_list: for i in range(len(photos_list)): with open("D:/No1WorkSpace/JupyterNotebook/feature/featuresGiao"+str(i)+".csv", "w", newline="") as csvfile: writer = csv.writer(csvfile) # 调用return_128d_features()得到128d特征 print("%-40s %-20s" % ("正在读的人脸图像 / image to read:", path_faces_personX + "/" + photos_list[i])) features_128d = return_128d_features(path_faces_personX + "/" + photos_list[i]) print(features_128d) writer.writerow(features_128d) # 遇到没有检测出人脸的图片跳过 if features_128d == 0: i += 1 else: features_list_personX.append(features_128d) else: print("文件夹内图像文件为空 / Warning: No images in " + path_faces_personX + '/', '\n')

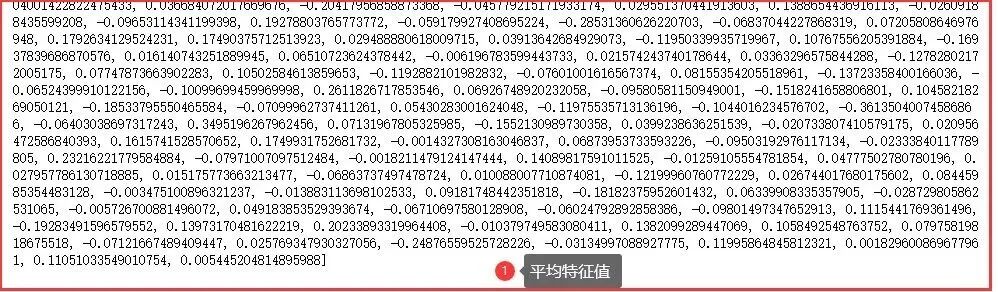

# 计算 128D 特征的均值 # N x 128D -> 1 x 128D if features_list_personX: features_mean_personX = np.array(features_list_personX).mean(axis=0) else: features_mean_personX = '0'
return features_mean_personX

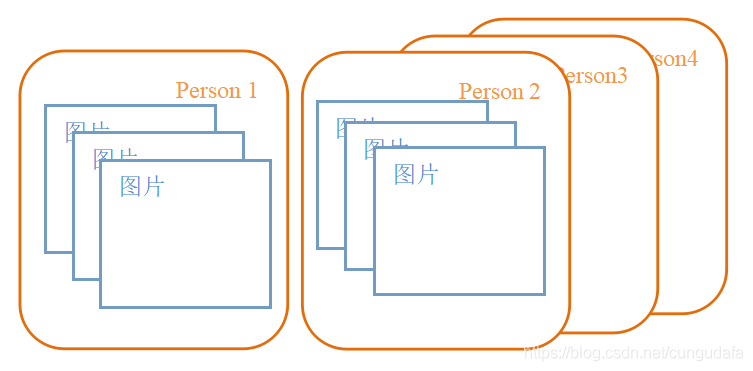

# 读取某人所有的人脸图像的数据 people = os.listdir(path_images_from_camera) people.sort()
with open("D:/No1WorkSpace/JupyterNotebook/feature/features_all.csv", "w", newline="") as csvfile: writer = csv.writer(csvfile) for person in people: print("##### " + person + " #####") # Get the mean/average features of face/personX, it will be a list with a length of 128D features_mean_personX = return_features_mean_personX(path_images_from_camera + person) writer.writerow(features_mean_personX) print("特征均值 / The mean of features:", list(features_mean_personX)) print('\n') print("所有录入人脸数据存入 / Save all the features of faces registered into: D:/myworkspace/JupyterNotebook/People/feature/features_all2.csv")
# 摄像头实时人脸识别 import os import dlib # 人脸处理的库 Dlib import csv # 存入表格 import time import sys import numpy as np # 数据处理的库 numpy from cv2 import cv2 as cv2 # 图像处理的库 OpenCv import pandas as pd # 数据处理的库 Pandas
# 人脸识别模型，提取128D的特征矢量 # face recognition model, the object maps human faces into 128D vectors # Refer this tutorial: http://dlib.net/python/index.html#dlib.face_recognition_model_v1 facerec = dlib.face_recognition_model_v1("D:/No1WorkSpace/JupyterNotebook/model/dlib_face_recognition_resnet_model_v1.dat")
# 计算两个128D向量间的欧式距离 # compute the e-distance between two 128D features defreturn_euclidean_distance(feature_1, feature_2): feature_1 = np.array(feature_1) feature_2 = np.array(feature_2) dist = np.sqrt(np.sum(np.square(feature_1 - feature_2))) return dist
# 用来存放所有录入人脸特征的数组 # the array to save the features of faces in the database features_known_arr = []
# 读取已知人脸数据 # print known faces for i in range(csv_rd.shape[0]): features_someone_arr = [] for j in range(0, len(csv_rd.loc[i, :])): features_someone_arr.append(csv_rd.loc[i, :][j]) features_known_arr.append(features_someone_arr) print("Faces in Database：", len(features_known_arr))
# Dlib 检测器和预测器 # The detector and predictor will be used detector = dlib.get_frontal_face_detector() predictor = dlib.shape_predictor('D:/No1WorkSpace/JupyterNotebook/model/shape_predictor_68_face_landmarks.dat')
# 创建 cv2 摄像头对象 # cv2.VideoCapture(0) to use the default camera of PC, # and you can use local video name by use cv2.VideoCapture(filename) cap = cv2.VideoCapture(0)
# 待会要写的字体 font to write later font = cv2.FONT_HERSHEY_COMPLEX
# 存储当前摄像头中捕获到的所有人脸的坐标/名字 # the list to save the positions and names of current faces captured pos_namelist = [] name_namelist = []
# 按下 q 键退出 # press 'q' to exit if kk == ord('q'): break else: # 检测到人脸 when face detected if len(faces) != 0: # 获取当前捕获到的图像的所有人脸的特征，存储到 features_cap_arr # get the features captured and save into features_cap_arr features_cap_arr = [] for i in range(len(faces)): shape = predictor(img_rd, faces[i]) features_cap_arr.append(facerec.compute_face_descriptor(img_rd, shape))
# 遍历捕获到的图像中所有的人脸
# traversal all the faces in the database for k in range(len(faces)): print("##### camera person", k+1, "#####") # 让人名跟随在矩形框的下方 # 确定人名的位置坐标 # 先默认所有人不认识，是 unknown # set the default names of faces with "unknown" name_namelist.append("unknown")
# 每个捕获人脸的名字坐标 the positions of faces captured pos_namelist.append(tuple([faces[k].left(), int(faces[k].bottom() + (faces[k].bottom() - faces[k].top())/4)]))

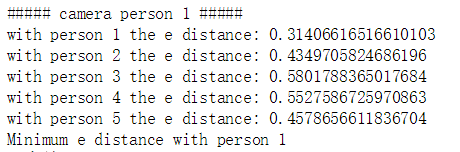

# 对于某张人脸，遍历所有存储的人脸特征 # for every faces detected, compare the faces in the database e_distance_list = [] for i in range(len(features_known_arr)): # 如果 person_X 数据不为空 if str(features_known_arr[i][0]) != '0.0': print("with person", str(i + 1), "the e distance: ", end='') e_distance_tmp = return_euclidean_distance(features_cap_arr[k], features_known_arr[i]) print(e_distance_tmp) e_distance_list.append(e_distance_tmp) else: # 空数据 person_X e_distance_list.append(999999999) # 找出最接近的一个人脸数据是第几个 # Find the one with minimum e distance similar_person_num = e_distance_list.index(min(e_distance_list)) print("Minimum e distance with person", int(similar_person_num)+1)
# 计算人脸识别特征与数据集特征的欧氏距离 # 距离小于0.4则标出为可识别人物 if min(e_distance_list) 0.4: # 这里可以修改摄像头中标出的人名 # Here you can modify the names shown on the camera # 1、遍历文件夹目录 folder_name = 'D:/No1WorkSpace/JupyterNotebook/Facetrainset/' # 最接近的人脸 sum=similar_person_num+1 key_id=1# 从第一个人脸数据文件夹进行对比 # 获取文件夹中的文件名:1wang、2zhou、3... file_names = os.listdir(folder_name) for name in file_names: # print(name+'->'+str(key_id)) if sum ==key_id: #winsound.Beep(300,500)# 响铃：300频率，500持续时间 name_namelist[k] = name[1:]#人名删去第一个数字（用于视频输出标识） key_id += 1 # 播放欢迎光临音效 #playsound('D:/myworkspace/JupyterNotebook/People/music/welcome.wav') # print("May be person "+str(int(similar_person_num)+1)) # -----------筛选出人脸并保存到visitor文件夹------------ for i, d in enumerate(faces): x1 = d.top() if d.top() > 0else0 y1 = d.bottom() if d.bottom() > 0else0 x2 = d.left() if d.left() > 0else0 y2 = d.right() if d.right() > 0else0 face = img_rd[x1:y1,x2:y2] size = 64 face = cv2.resize(face, (size,size)) # 要存储visitor人脸图像文件的路径 path_visitors_save_dir = "D:/No1WorkSpace/JupyterNotebook/KnownFacetrainset/" # 存储格式：2019-06-24-14-33-40wang.jpg now_time = time.strftime("%Y-%m-%d-%H-%M-%S", time.localtime()) save_name = str(now_time)+str(name_namelist[k])+'.jpg' # print(save_name) # 本次图片保存的完整url save_path = path_visitors_save_dir+'/'+ save_name # 遍历visitor文件夹所有文件名 visitor_names = os.listdir(path_visitors_save_dir) visitor_name='' for name in visitor_names: # 名字切片到分钟数：2019-06-26-11-33-00wangyu.jpg visitor_name=(name[0:16]+'-00'+name[19:]) # print(visitor_name) visitor_save=(save_name[0:16]+'-00'+save_name[19:]) # print(visitor_save) # 一分钟之内重复的人名不保存 if visitor_save!=visitor_name: cv2.imwrite(save_path, face) print('新存储：'+path_visitors_save_dir+'/'+str(now_time)+str(name_namelist[k])+'.jpg') else: print('重复，未保存！')
else: # 播放无法识别音效 #playsound('D:/myworkspace/JupyterNotebook/People/music/sorry.wav') print("Unknown person") # -----保存图片------- # -----------筛选出人脸并保存到visitor文件夹------------ for i, d in enumerate(faces): x1 = d.top() if d.top() > 0else0 y1 = d.bottom() if d.bottom() > 0else0 x2 = d.left() if d.left() > 0else0 y2 = d.right() if d.right() > 0else0 face = img_rd[x1:y1,x2:y2] size = 64 face = cv2.resize(face, (size,size)) # 要存储visitor-》unknown人脸图像文件的路径 path_visitors_save_dir = "D:/No1WorkSpace/JupyterNotebook/UnKnownFacetrainset/" # 存储格式：2019-06-24-14-33-40unknown.jpg now_time = time.strftime("%Y-%m-%d-%H-%M-%S", time.localtime()) # print(save_name) # 本次图片保存的完整url save_path = path_visitors_save_dir+'/'+ str(now_time)+'unknown.jpg' cv2.imwrite(save_path, face) print('新存储：'+path_visitors_save_dir+'/'+str(now_time)+'unknown.jpg')
# 矩形框 # draw rectangle for kk, d in enumerate(faces): # 绘制矩形框 cv2.rectangle(img_rd, tuple([d.left(), d.top()]), tuple([d.right(), d.bottom()]), (0, 255, 255), 2) print('\n')

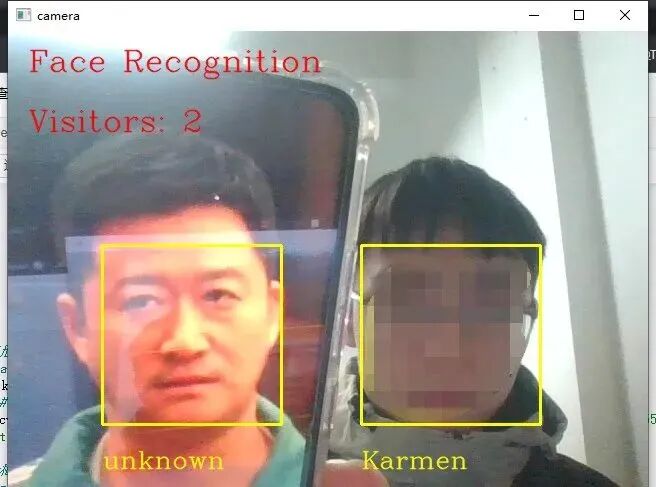

# 在人脸框下面写人脸名字 # write names under rectangle for i in range(len(faces)): cv2.putText(img_rd, name_namelist[i], pos_namelist[i], font, 0.8, (0, 255, 255), 1, cv2.LINE_AA)
print("Faces in camera now:", name_namelist, "\n")
