Raster4ML:用于机器学习的地理空间栅格处理库

链接:https://github.com/remotesensinglab/raster4ml

When geospatial raster data is concerned in a machine learning pipeline, it is often required to extract meaningful features, such as vegetation indices (e.g., NDVI, EVI, NDRE, etc.) or textures. This package provides easy-to-use functions that can automatically calculates the features with one or several lines of codes in Python. It also has the functionality of extracting statistics based on shapefile (i.e., point or polygon) from a raster data. Any type of raster data is supported regardless of satellite or UAVs.

Key Features

  • Stack raster bands
  • Automatically calculate vegetation indices (supports 350+ indices)
  • Extract raster values based on shapefile
  • Clip raster based on polygon

Documentation

Detailed documentation with tutorials can be found here: https://raster4ml.readthedocs.io/

How to Use?

  1. Stacking bands
    stack_bands(image_paths=['Band_1.tif''Band_2.tif''Band_3.tif',
                             'Band_4.tif''Band_5.tif''Band_6.tif'],
                out_file='Stack.tif')
  2. Vegetation index calculation
    VI = VegetationIndices(image_path='Landsat8.tif',
                           wavelengths=[442.96, 482.04, 561.41, 654.59, 864.67, 1608.86, 2200.73])
    VI.calculate(out_dir='vegetation_indices')

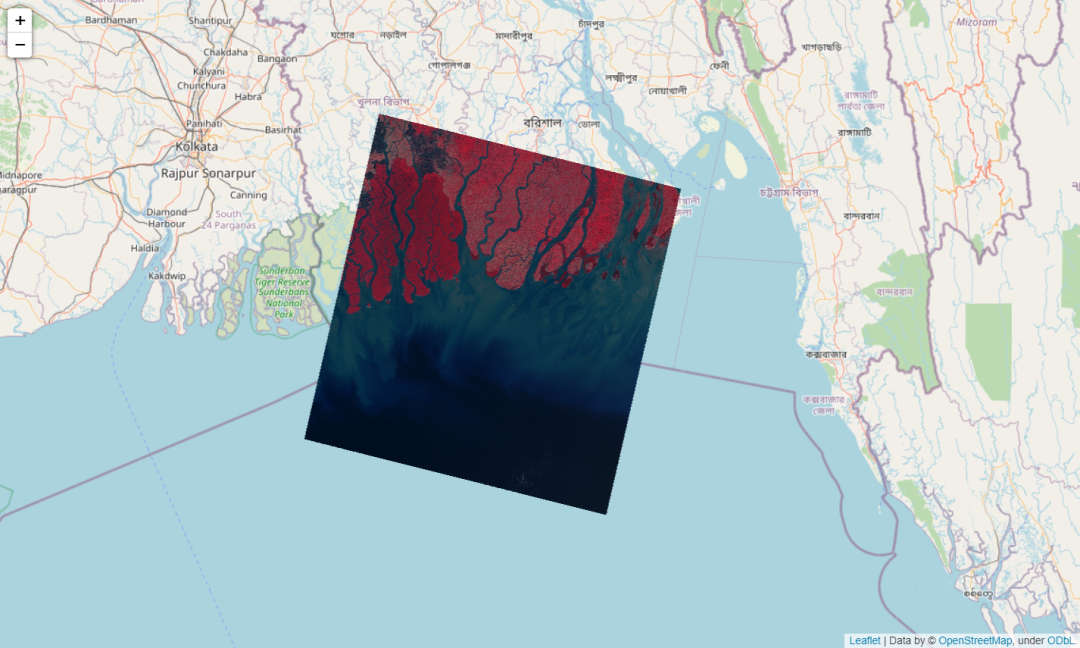

  3. Dynamic visualization in Jupyter Notebook
    m = Map()
    m.add_raster(image_path='Landsat8.tif', bands=[4, 3, 2])
    Output:

How to Install?

Dependencies

Raster4ML is built on top of geopandas, rasterio, fiona, pyproj, rtree, shapely, numpy, and pandas.

Virtual Environment

It is prefered to use a virtual environment for working with this package. Use Anaconda or Miniconda to create a seperate environment and then install the package and its dependencies there.

conda create --name raster4ml python=3
conda activate raster4ml

Windows

To install on Windows, first download the wheel files for GDAL, rasterio, and fiona from Christoph Gohlke's website (🤗Thanks Christoph🤗). Go to his website, press Ctrl+F and type gdal. Download the GDAL file that mostly matches your computer configuration (64-bit or 32-bit) and Python version.

After downloading it, cd into the downloaded directory while the raster4ml environment is activated. Then install using pip. Do the same for rasterio and fiona.

pip install GDAL‑3.4.3‑cp310‑cp310‑win_amd64.whl
pip install rasterio‑1.2.10‑cp310‑cp310‑win_amd64.whl
pip install Fiona‑1.8.21‑cp310‑cp310‑win_amd64.whl

If these three are installed, the rest of the dependencies can be installed directly through Raster4ML's pip distribution.

pip install raster4ml

Tutorials

There are two tutorials provided. Find them in docs/tutorials.

Questions?

Please report bugs at https://github.com/remotesensinglab/raster4ml/issues.

If you are reporting a bug, please include:

  • Your operating system name and version.
  • Any details about your local setup that might be helpful in troubleshooting.
  • Detailed steps to reproduce the bug.
