Python为兰勃脱投影(Lambert)地图添加经纬度刻度(3)

气象学家 • 1 年前 • 574 次点击

本文作者:天津气候中心 郝立生 博士/研究员
联系邮箱:hls54515@163.com

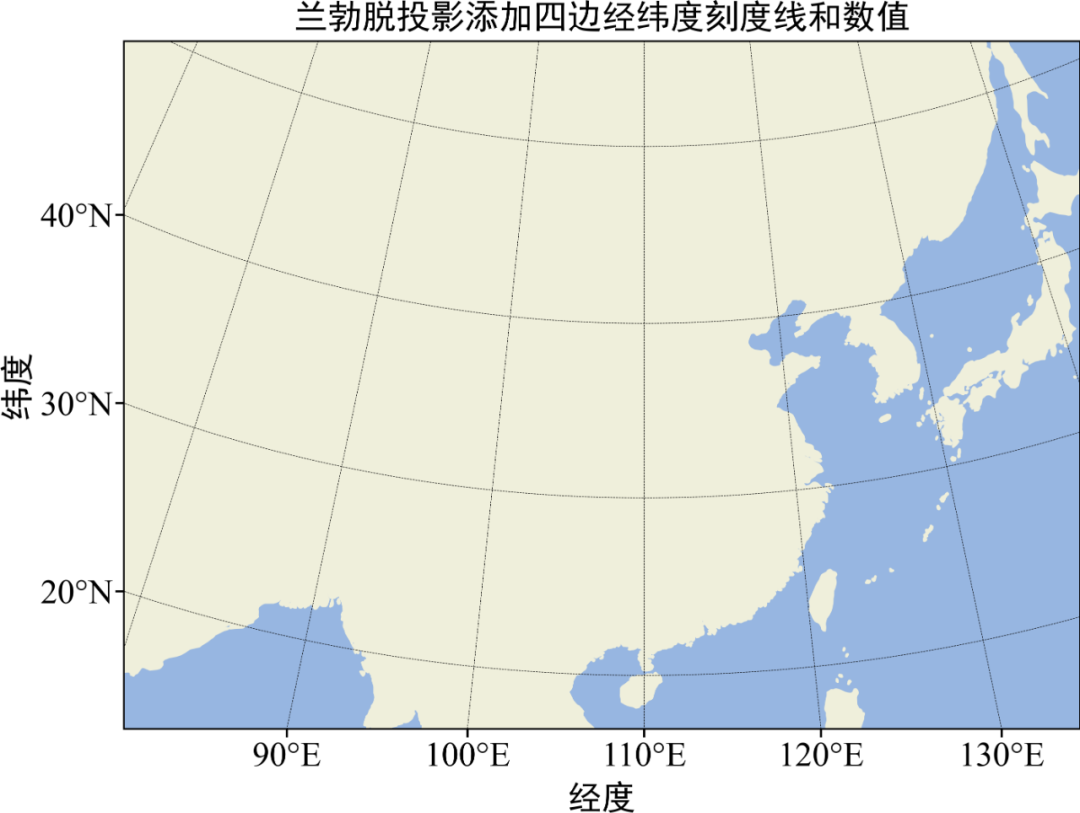

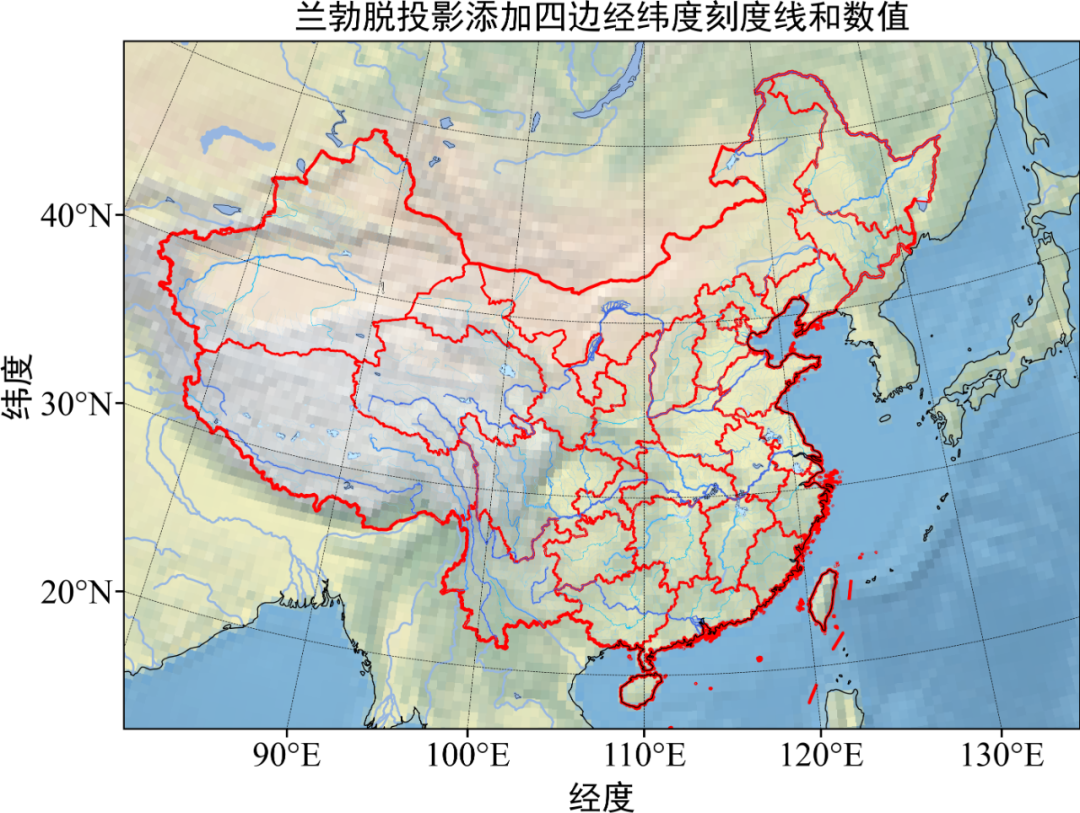

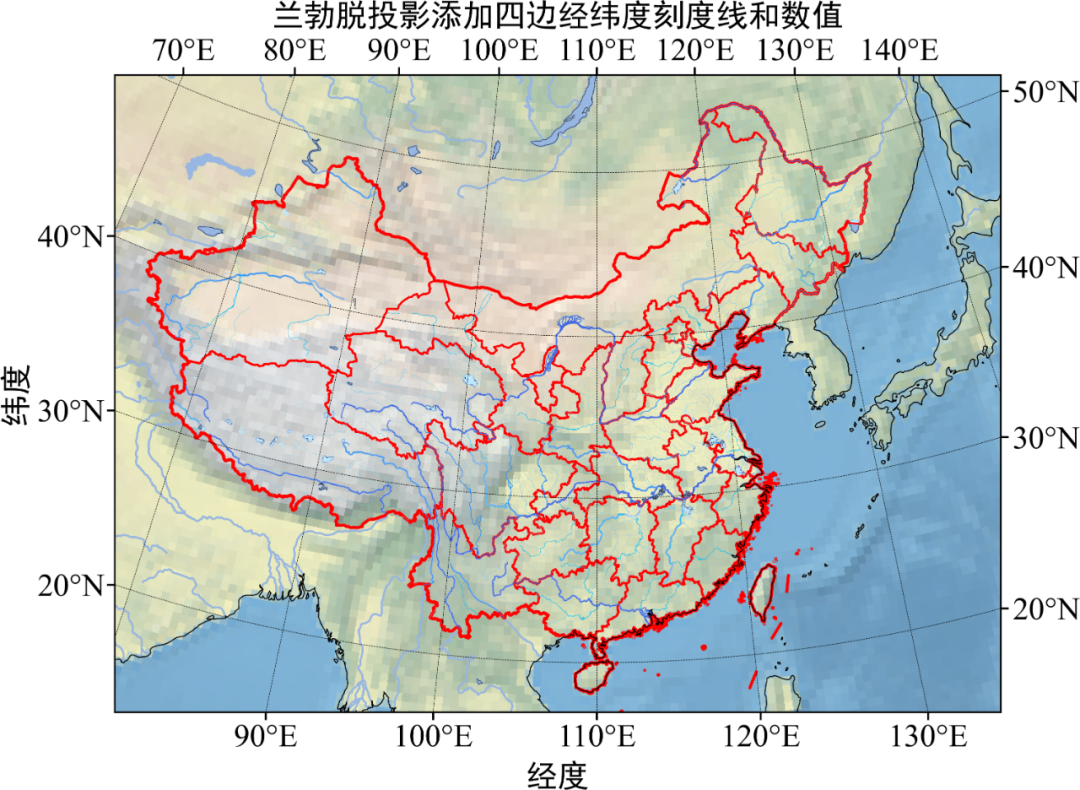

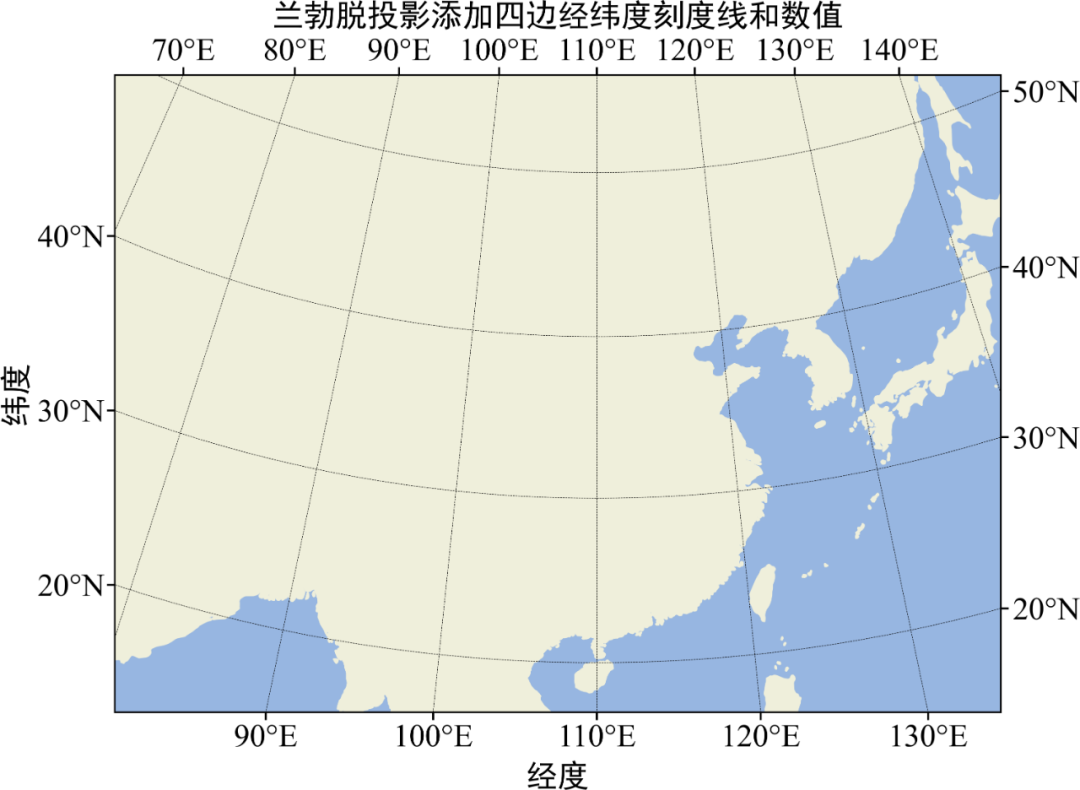

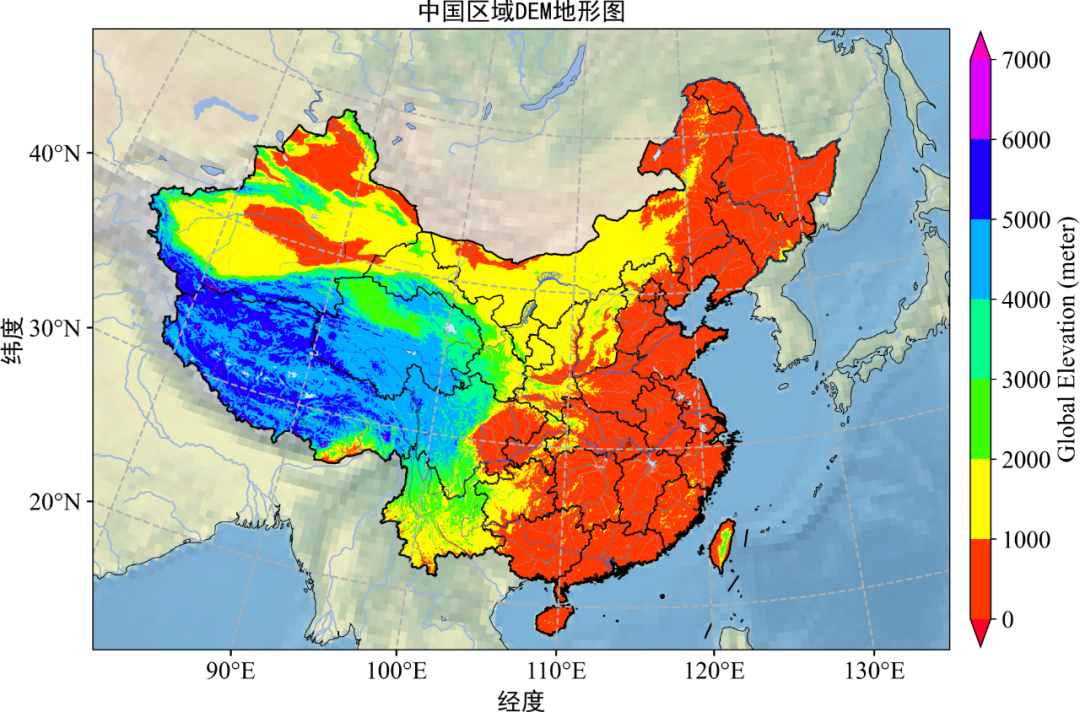

总有人问兰勃脱投影加经纬度刻度的问题,我整理一个添加四边刻度线和数值的代码,想怎么加就怎么加,供参考使用。这个代码对普通柱状图同样也适用。
" Created on by Haolishen on 2021.6.2, in TianJin"import numpy as npimport matplotlib.pyplot as pltimport cartopy.crs as ccrsimport cartopy.feature as cfeature from cartopy.mpl.gridliner import LATITUDE_FORMATTER, LONGITUDE_FORMATTERimport warnings;   warnings.filterwarnings('ignore')plt.rcParams['font.family'] ='Times New Roman' plt.rcParams['font.size'] = 12                # 自定义获取经纬度刻度位置函数def get_lambert_ticks(ax, ticks0, tick_location): import shapely.geometry as sgeom xmin,xmax,ymin,ymax = ax.get_extent() lonmin,lonmax,latmin,latmax = ax.get_extent(ccrs.PlateCarree()) axises = {'left': [(xmin, ymin), (xmin, ymax)],'right': [(xmax, ymin), (xmax, ymax)], 'bottom': [(xmin, ymin), (xmax, ymin)], 'top': [(xmin, ymax), (xmax, ymax)],} line_axis = sgeom.LineString(axises[tick_location]) ticks = [] N = 50 for tick1 in ticks0: if( (tick_location.upper()=='TOP') | (tick_location.upper()=='BOTTOM')): xy = np.vstack((np.zeros(N)+tick1, np.linspace(latmin-5, latmax+5, N, endpoint=True))).T elif( (tick_location.upper()=='LEFT') | (tick_location.upper()=='RIGHT')): xy = np.vstack((np.linspace(lonmin-5, lonmax+5, N, endpoint=True), np.zeros(N)+tick1)).T proj_xy = (ax.projection.transform_points(ccrs.Geodetic(), xy[:,0], xy[:,1]))[:,:2] line_lonlat = sgeom.LineString(proj_xy) locs = line_axis.intersection(line_lonlat) if not locs: tick = [None] else: if( (tick_location.upper()=='TOP') | (tick_location.upper()=='BOTTOM')): tick = locs.xy[0] elif( (tick_location.upper()=='LEFT') | (tick_location.upper()=='RIGHT')): tick = locs.xy[1] ticks.append(tick[0]) # 去掉看不到的刻度 ticklabels = ticks0 while True: try: index = ticks.index(None) except ValueError: break ticks.pop(index) ticklabels.pop(index) return ticks, ticklabels# 自定义添加左侧刻度的函数def lambert_yticks_left(ax, ticks, length, width, pad, fontdict=None): " Draw ticks on the left y-axis of a Lamber Conformal projection. " yticks, yticklabels = get_lambert_ticks(ax, ticks, 'left') ax.yaxis.tick_left() ax.set_yticks(yticks) ax.set_yticklabels([ax.yaxis.get_major_formatter()(ytick) for ytick in yticklabels],fontdict) ax.tick_params(axis='y',which='major',direction='out',length=length, width=width, pad=pad) return# 自定义添加右侧刻度的函数def lambert_yticks_right(ax, ticks,length, width, pad, fontdict=None): " Draw ticks on the right y-axis of a Lamber Conformal projection. " yticks, yticklabels = get_lambert_ticks(ax, ticks, 'right') ax2 = ax.secondary_yaxis('right') #新建ax3,使ax3与ax2完全相同 ax2.yaxis.tick_right() ax2.set_yticks(yticks) ax2.set_yticklabels([ax.yaxis.get_major_formatter()(ytick) for ytick in yticklabels],fontdict) ax2.tick_params(axis='y',which='major',direction='out',length=length, width=width, pad=pad) return# 自定义添加底边刻度的函数def lambert_xticks_bottom(ax, ticks, length, width, pad, fontdict=None): " Draw ticks on the bottom x-axis of a Lambert Conformal projection. " xticks, xticklabels = get_lambert_ticks(ax, ticks, 'bottom') ax.xaxis.tick_bottom() ax.set_xticks(xticks) ax.set_xticklabels([ax.xaxis.get_major_formatter()(xtick) for xtick in xticklabels],fontdict) ax.tick_params(axis='x',which='major',direction='out',length=length, width=width, pad=pad) return# 自定义添加顶部刻度的函数def lambert_xticks_top(ax, ticks, length, width, pad, fontdict=None): " Draw ticks on the top x-axis of a Lambert Conformal projection. " xticks, xticklabels = get_lambert_ticks(ax, ticks, 'top') ax2 = ax.secondary_xaxis('top') #新建ax3,使ax3与ax2完全相同 ax2.xaxis.tick_top() ax2.set_xticks(xticks) ax2.set_xticklabels([ax.xaxis.get_major_formatter()(xtick) for xtick in xticklabels],fontdict) ax2.tick_params(axis='x',which='major',direction='out',length=length, width=width, pad=pad) return#-----------------------------------------------------------------------------# 主程序段proj = ccrs.LambertConformal(central_longitude=110,central_latitude=30.0,standard_parallels=(25,47))extent = [80, 135, 17, 53]#2 设置绘图窗口fig = plt.figure(figsize=(8,6)) #创建页面ax = plt.axes(projection=proj)ax.set_extent(extent, crs=ccrs.PlateCarree()) ax.add_feature(cfeature.OCEAN)ax.add_feature(cfeature.LAND)# 添加经纬网格线# 添加经纬度网格和刻度ax.gridlines(draw_labels=None, xlocs=range(0 ,180,10), ylocs=range(0,90,10), linestyle='--', linewidth=0.25, color='k')xticks = [lon for lon in np.arange(70,160,10)]yticks = [lat for lat in np.arange(0,60,10)] ax.xaxis.set_major_formatter(LONGITUDE_FORMATTER) ax.yaxis.set_major_formatter(LATITUDE_FORMATTER)fig.canvas.draw() #这个不能少,调用fig.canvas.draw()函数才能够更新显示lambert_xticks_top(ax, xticks, length=4, width=1.0, pad=0, fontdict={'family':'Times New Roman','size':12,'color':'k','rotation':0} ) lambert_yticks_right(ax, yticks, length=4, width=1.0, pad=2, fontdict={'family':'Times New Roman','size':12,'color':'k','rotation':0} )lambert_xticks_bottom(ax, xticks, length=4, width=1.0, pad=2, fontdict={'family':'Times New Roman','size':12,'color':'k','rotation':0} ) lambert_yticks_left(ax, yticks,   length=4, width=1.0, pad=1, fontdict={'family':'Times New Roman','size':12,'color':'k','rotation':0} )plt.savefig(r'cartopy-lambert-loblat.png',dpi=600,bbox_inches='tight')
