为了大家能够对人工智能常用的 Python
库有一个初步的了解,以选择能够满足自己需求的库进行学习,对目前较为常见的人工智能库进行简要全面的介绍。
1、NumpyNumPy(Numerical Python)
是 Python
的一个扩展程序库,支持大量的维度数组与矩阵运算,此外也针对数组运算提供大量的数学函数库,Numpy
底层使用C语言
编写,数组中直接存储对象,而不是存储对象指针,所以其运算效率远高于纯Python代
码。
我们可以在示例中对比下纯Python
与使用Numpy库
在计算列表sin值的速度对比:
import numpy as npimport mathimport randomimport time start = time.time()for i in range(10 ): list_1 = list(range(1 ,10000 )) for j in range(len(list_1)): list_1[j] = math.sin(list_1[j]) print("使用纯Python用时{}s" .format(time.time()-start)) start = time.time()for i in range(10 ): list_1 = np.array(np.arange(1 ,10000 )) list_1 = np.sin(list_1) print("使用Numpy用时{}s" .format(time.time()-start))
从如下运行结果,可以看到使用 Numpy
库的速度快于纯 Python 编写的代码:
使用纯Python用时0.017444372177124023 s 使用Numpy用时0.001619577407836914 s
2、OpenCVOpenCV
是一个的跨平台计算机视觉库,可以运行在 Linux、Windows 和 Mac OS 操作系统上。它轻量级而且高效——由一系列 C 函数和少量 C++ 类构成,同时也提供了 Python
接口,实现了图像处理和计算机视觉方面的很多通用算法。
下面代码尝试使用一些简单的滤镜,包括图片的平滑处理、高斯模糊等:
import numpy as npimport cv2 as cvfrom matplotlib import pyplot as plt img = cv.imread('h89817032p0.png' ) kernel = np.ones((5 ,5 ),np.float32)/25 dst = cv.filter2D(img,-1 ,kernel) blur_1 = cv.GaussianBlur(img,(5 ,5 ),0 ) blur_2 = cv.bilateralFilter(img,9 ,75 ,75 ) plt.figure(figsize=(10 ,10 )) plt.subplot(221 ),plt.imshow(img[:,:,::-1 ]),plt.title('Original' ) plt.xticks([]), plt.yticks([]) plt.subplot(222 ),plt.imshow(dst[:,:,::-1 ]),plt.title('Averaging' ) plt.xticks([]), plt.yticks([]) plt.subplot(223 ),plt.imshow(blur_1[:,:,::-1 ]),plt.title('Gaussian' ) plt.xticks([]), plt.yticks([]) plt.subplot(224 ),plt.imshow(blur_1[:,:,::-1 ]),plt.title('Bilateral' ) plt.xticks([]), plt.yticks([]) plt.show()
OpenCV 3、Scikit-imagescikit-image
是基于scipy
的图像处理库,它将图片作为numpy
数组进行处理。

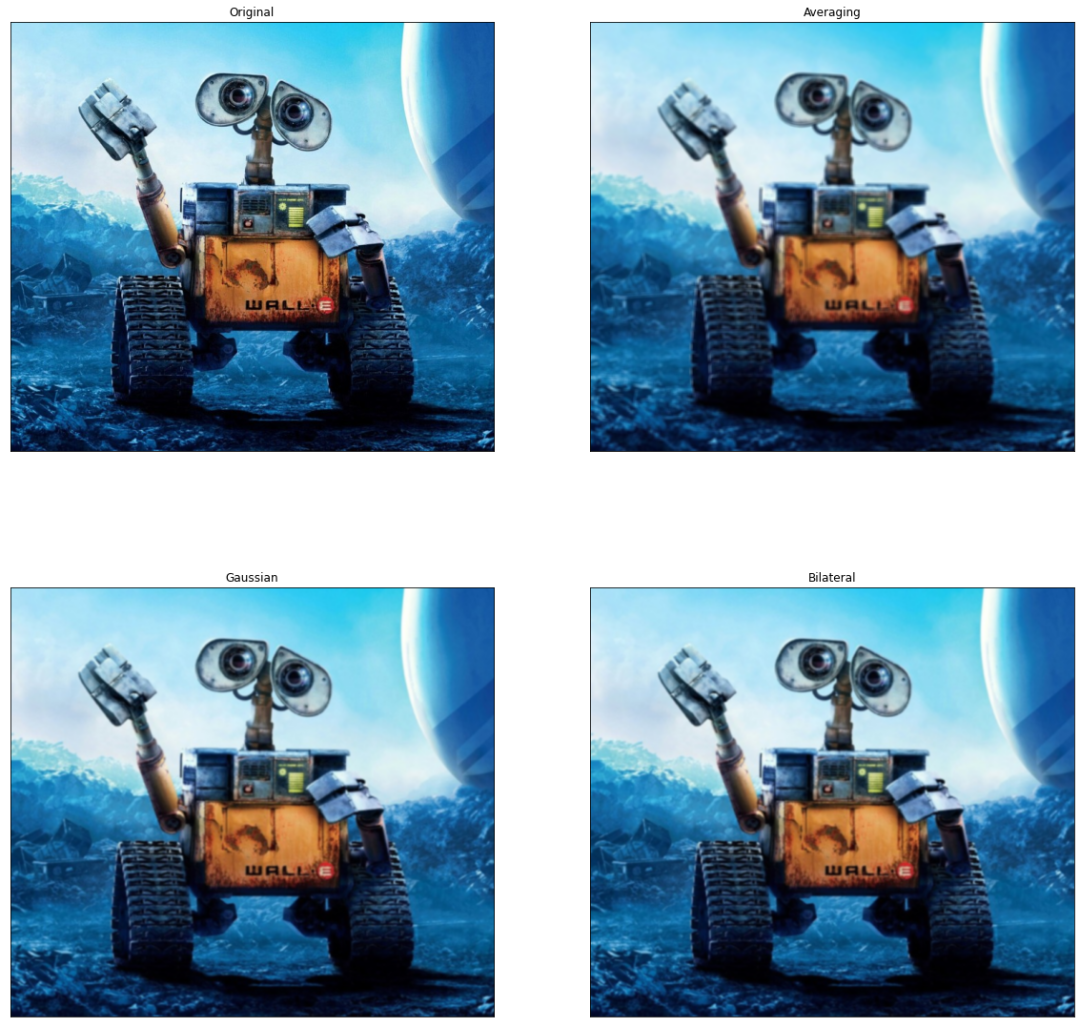

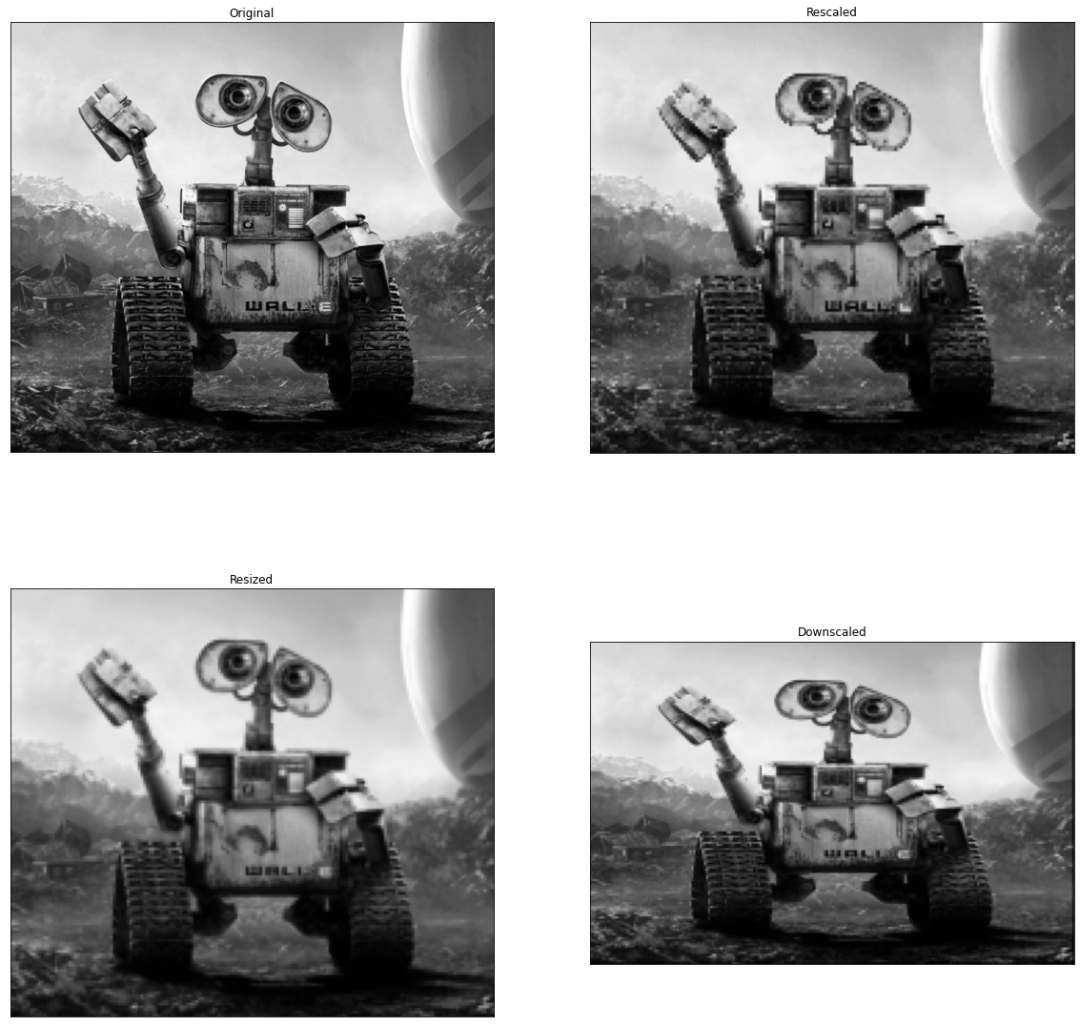

例如,可以利用scikit-image
改变图片比例,scikit-image
提供了rescale
、resize
以及downscale_local_mean
等函数。
from skimage import data, color, io
from skimage.transform import rescale, resize, downscale_local_mean image = color.rgb2gray(io.imread('h89817032p0.png' )) image_rescaled = rescale(image, 0.25 , anti_aliasing=False ) image_resized = resize(image, (image.shape[0 ] // 4 , image.shape[1 ] // 4 ), anti_aliasing=True ) image_downscaled = downscale_local_mean(image, (4 , 3 )) plt.figure(figsize=(20 ,20 )) plt.subplot(221 ),plt.imshow(image, cmap='gray' ),plt.title('Original' ) plt.xticks([]), plt.yticks([]) plt.subplot(222 ),plt.imshow(image_rescaled, cmap='gray' ),plt.title('Rescaled' ) plt.xticks([]), plt.yticks([]) plt.subplot(223 ),plt.imshow(image_resized, cmap='gray' ),plt.title('Resized' ) plt.xticks([]), plt.yticks([]) plt.subplot(224 ),plt.imshow(image_downscaled, cmap='gray' ),plt.title('Downscaled' ) plt.xticks([]), plt.yticks([]) plt.show()
Scikit-image 4、PILPython Imaging Library(PIL)
已经成为 Python
事实上的图像处理标准库了,这是由于,PIL
功能非常强大,但API却非常简单易用。
但是由于PIL仅支持到 Python 2.7
,再加上年久失修,于是一群志愿者在 PIL
的基础上创建了兼容的版本,名字叫 Pillow
,支持最新 Python 3.x
,又加入了许多新特性,因此,我们可以跳过 PIL
,直接安装使用 Pillow
。

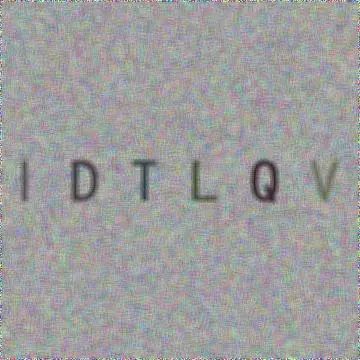

5、Pillow使用 Pillow
生成字母验证码图片:
from PIL import Image, ImageDraw, ImageFont, ImageFilterimport random# 随机字母: def rndChar () : return chr(random.randint(65 , 90 ))# 随机颜色1: def rndColor () : return (random.randint(64 , 255 ), random.randint(64 , 255 ), random.randint(64 , 255 ))# 随机颜色2:
def rndColor2 () : return (random.randint(32 , 127 ), random.randint(32 , 127 ), random.randint(32 , 127 ))# 240 x 60: width = 60 * 6 height = 60 * 6 image = Image.new('RGB' , (width, height), (255 , 255 , 255 ))# 创建Font对象: font = ImageFont.truetype('/usr/share/fonts/wps-office/simhei.ttf' , 60 )# 创建Draw对象: draw = ImageDraw.Draw(image)# 填充每个像素: for x in range(width): for y in range(height): draw.point((x, y), fill=rndColor())# 输出文字: for t in range(6 ): draw.text((60 * t + 10 , 150 ), rndChar(), font=font, fill=rndColor2())# 模糊: image = image.filter(ImageFilter.BLUR) image.save('code.jpg' , 'jpeg' )
验证码 6、SimpleCVSimpleCV
是一个用于构建计算机视觉应用程序的开源框架。使用它,可以访问高性能的计算机视觉库,如 OpenCV,而不必首先了解位深度、文件格式、颜色空间、缓冲区管理、特征值或矩阵等术语。但其对于 Python3 的支持很差很差,在 Python3.7 中使用如下代码:
from SimpleCV import Image, Color, Display# load an image from imgur img = Image('http://i.imgur.com/lfAeZ4n.png' )# use a keypoint detector to find areas of interest feats = img.findKeypoints()# draw the list of keypoints feats.draw(color=Color.RED)# show the resulting image. img.show()# apply the stuff we found to the image. output = img.applyLayers()# save the results. output.save('juniperfeats.png' )
会报如下错误,因此不建议在 Python3
中使用:
SyntaxError: Missing parentheses in call to 'print' . Did you mean print('unit test' )?
7、MahotasMahotas
是一个快速计算机视觉算法库,其构建在 Numpy
之上,目前拥有超过100种图像处理和计算机视觉功能,并在不断增长。
使用 Mahotas
加载图像,并对像素进行操作:
import numpy as np
import mahotasimport mahotas.demosfrom mahotas.thresholding import soft_thresholdfrom matplotlib import pyplot as pltfrom os import path f = mahotas.demos.load('lena' , as_grey=True ) f = f[128 :,128 :] plt.gray()# Show the data: print("Fraction of zeros in original image: {0}" .format(np.mean(f==0 ))) plt.imshow(f) plt.show()

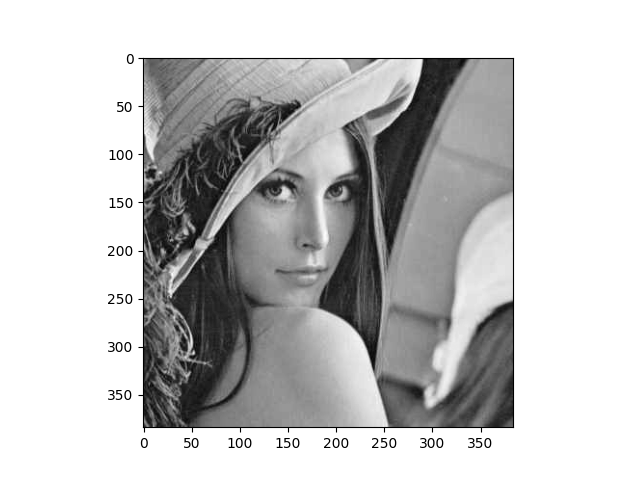

Mahotas 8、IlastikIlastik
能够给用户提供良好的基于机器学习的生物信息图像分析服务,利用机器学习算法,轻松地分割,分类,跟踪和计数细胞或其他实验数据。大多数操作都是交互式的,并不需要机器学习专业知识。可以参考https://www.ilastik.org/documentation/basics/installation.html进行安装使用。
9、Scikit-learnScikit-learn
是针对 Python
编程语言的免费软件机器学习库。它具有各种分类,回归和聚类算法,包括支持向量机,随机森林,梯度提升,k均值和 DBSCAN 等多种机器学习算法。
使用Scikit-learn
实现KMeans
算法:
import timeimport numpy as npimport matplotlib.pyplot as pltfrom sklearn.cluster import MiniBatchKMeans, KMeansfrom sklearn.metrics.pairwise import pairwise_distances_argminfrom sklearn.datasets import make_blobs# Generate sample data np.random.seed(0 ) batch_size = 45 centers = [[1 , 1 ], [-1 , -1 ], [1 , -1 ]] n_clusters = len(centers) X, labels_true = make_blobs(n_samples=3000 , centers=centers, cluster_std=0.7 )# Compute clustering with Means k_means = KMeans(init='k-means++' , n_clusters=3 , n_init=10 ) t0 = time.time() k_means.fit(X) t_batch = time.time() - t0# Compute clustering with MiniBatchKMeans mbk = MiniBatchKMeans(init='k-means++' , n_clusters=3 , batch_size=batch_size, n_init=10 , max_no_improvement=10 , verbose=0 ) t0 = time.time() mbk.fit(X) t_mini_batch = time.time() - t0# Plot result fig = plt.figure(figsize=(8 , 3 )) fig.subplots_adjust(left=0.02 , right=0.98 , bottom=0.05 , top=0.9 ) colors = ['#4EACC5' , '#FF9C34' , '#4E9A06' ]# We want to have the same colors for the same cluster from the # MiniBatchKMeans and the KMeans algorithm. Let's pair the cluster centers per # closest one. k_means_cluster_centers = k_means.cluster_centers_ order = pairwise_distances_argmin(k_means.cluster_centers_, mbk.cluster_centers_) mbk_means_cluster_centers = mbk.cluster_centers_[order]
k_means_labels = pairwise_distances_argmin(X, k_means_cluster_centers) mbk_means_labels = pairwise_distances_argmin(X, mbk_means_cluster_centers)# KMeans for k, col in zip(range(n_clusters), colors): my_members = k_means_labels == k cluster_center = k_means_cluster_centers[k] plt.plot(X[my_members, 0 ], X[my_members, 1 ], 'w' , markerfacecolor=col, marker='.' ) plt.plot(cluster_center[0 ], cluster_center[1 ], 'o' , markerfacecolor=col, markeredgecolor='k' , markersize=6 ) plt.title('KMeans' ) plt.xticks(()) plt.yticks(()) plt.show()

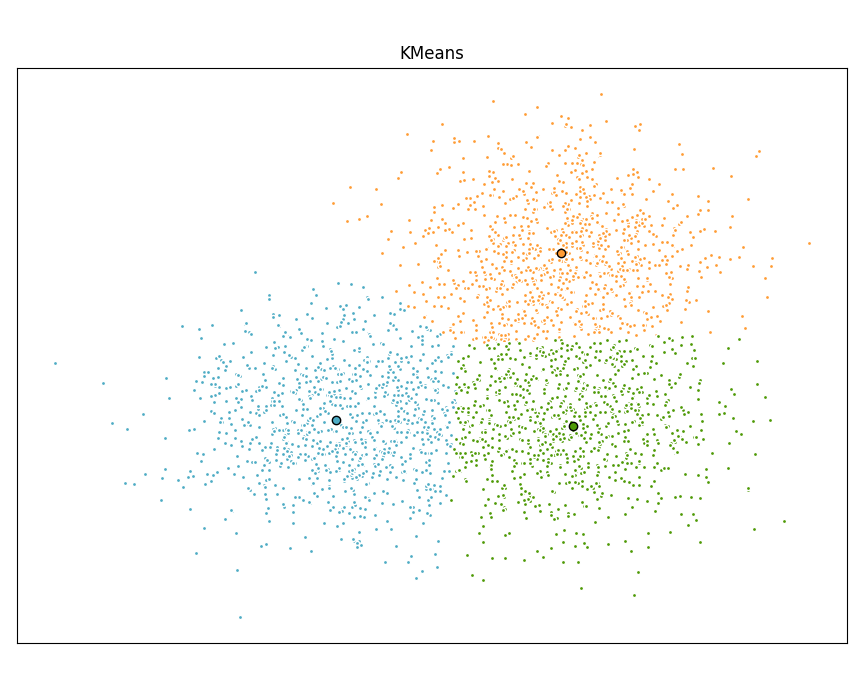

KMeans 10、SciPySciPy
库提供了许多用户友好和高效的数值计算,如数值积分、插值、优化、线性代数等。
SciPy
库定义了许多数学物理的特殊函数,包括椭圆函数、贝塞尔函数、伽马函数、贝塔函数、超几何函数、抛物线圆柱函数等等。
from scipy import specialimport matplotlib.pyplot as pltimport numpy as npdef drumhead_height (n, k, distance, angle, t) : kth_zero = special.jn_zeros(n, k)[-1 ] return np.cos(t) * np.cos(n*angle) * special.jn(n, distance*kth_zero) theta = np.r_[0 :2 *np.pi:50j ] radius = np.r_[0 :1 :50j ] x = np.array([r * np.cos(theta) for r in radius]) y = np.array([r * np.sin(theta) for r in radius]) z = np.array([drumhead_height(1 , 1 , r, theta, 0.5 ) for r in radius]) fig = plt.figure() ax = fig.add_axes(rect=(0 , 0.05 , 0.95 , 0.95 ), projection='3d' ) ax.plot_surface(x, y, z, rstride=1 , cstride=1 , cmap='RdBu_r' , vmin=-0.5 , vmax=0.5 ) ax.set_xlabel('X' ) ax.set_ylabel('Y' ) ax.set_xticks(np.arange(-1 , 1.1 , 0.5 )) ax.set_yticks(np.arange(-1 , 1.1 , 0.5 )) ax.set_zlabel('Z' ) plt.show()

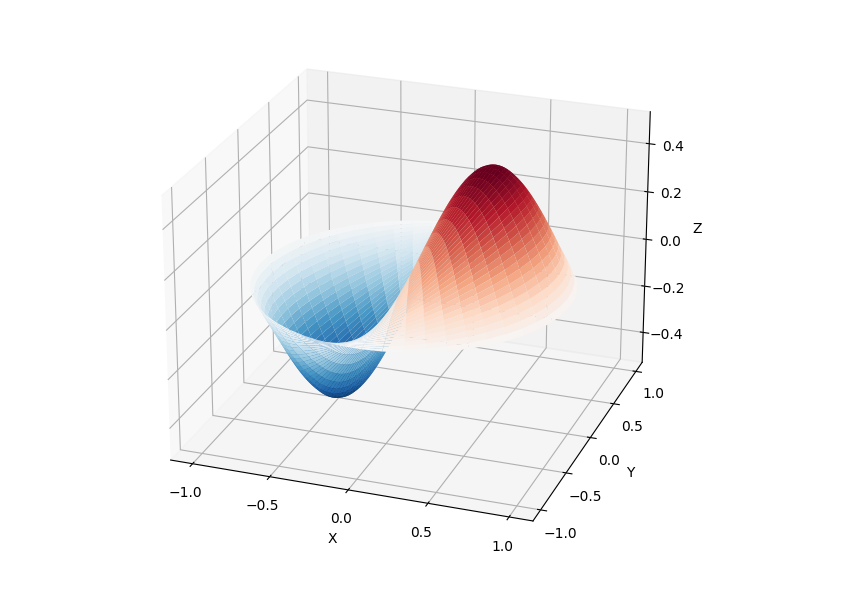

SciPy 11、NLTKNLTK
是构建Python程序以处理自然语言的库。它为50多个语料库和词汇资源(如 WordNet
)提供了易于使用的接口,以及一套用于分类、分词、词干、标记、解析和语义推理的文本处理库、工业级自然语言处理 (Natural Language Processing, NLP)
库的包装器。
NLTK被称为 “a wonderful tool for teaching, and working in, computational linguistics using Python”
。

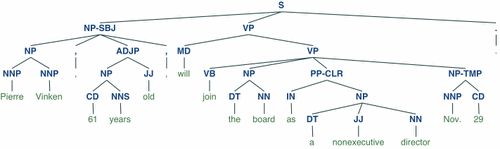

import nltkfrom nltk.corpus import treebank# 首次使用需要下载 nltk.download('punkt' ) nltk.download('averaged_perceptron_tagger' ) nltk.download('maxent_ne_chunker' ) nltk.download('words' ) nltk.download('treebank' ) sentence = """At eight o'clock on Thursday morning Arthur didn't feel very good.""" # Tokenize tokens = nltk.word_tokenize(sentence) tagged = nltk.pos_tag(tokens)# Identify named entities entities = nltk.chunk.ne_chunk(tagged)# Display a parse tree t = treebank.parsed_sents('wsj_0001.mrg' )[0 ] t.draw()
NLTK 12、spaCyspaCy
是一个免费的开源库,用于 Python
中的高级 NLP。它可以用于构建处理大量文本的应用程序;也可以用来构建信息提取或自然语言理解系统,或者对文本进行预处理以进行深度学习。
import spacy texts = [ "Net income was $9.4 million compared to the prior year of $2.7 million." , "Revenue exceeded twelve billion dollars, with a loss of $1b." , ] nlp = spacy.load("en_core_web_sm" ) for doc in nlp.pipe(texts, disable=["tok2vec" , "tagger" , "parser" , "attribute_ruler" , "lemmatizer" ]): # Do something with the doc here print([(ent.text, ent.label_) for ent in doc.ents])
nlp.pipe
生成 Doc 对象,因此我们可以对它们进行迭代并访问命名实体预测:
[('$9.4 million' , 'MONEY' ), ('the prior year' , 'DATE' ), ('$2.7 million' , 'MONEY' )] [('twelve billion dollars' , 'MONEY' ), ('1b' , 'MONEY' )]
13、LibROSAlibrosa
是一个用于音乐和音频分析的 Python 库,它提供了创建音乐信息检索系统所必需的功能和函数。
# Beat tracking example import librosa# 1. Get the file path to an included audio example filename = librosa.example('nutcracker' )
# 2. Load the audio as a waveform `y` # Store the sampling rate as `sr` y, sr = librosa.load(filename)# 3. Run the default beat tracker tempo, beat_frames = librosa.beat.beat_track(y=y, sr=sr) print('Estimated tempo: {:.2f} beats per minute' .format(tempo))# 4. Convert the frame indices of beat events into timestamps beat_times = librosa.frames_to_time(beat_frames, sr=sr)
14、PandasPandas
是一个快速、强大、灵活且易于使用的开源数据分析和操作工具, Pandas
可以从各种文件格式比如 CSV、JSON、SQL、Microsoft Excel 导入数据,可以对各种数据进行运算操作,比如归并、再成形、选择,还有数据清洗和数据加工特征。Pandas
广泛应用在学术、金融、统计学等各个数据分析领域。

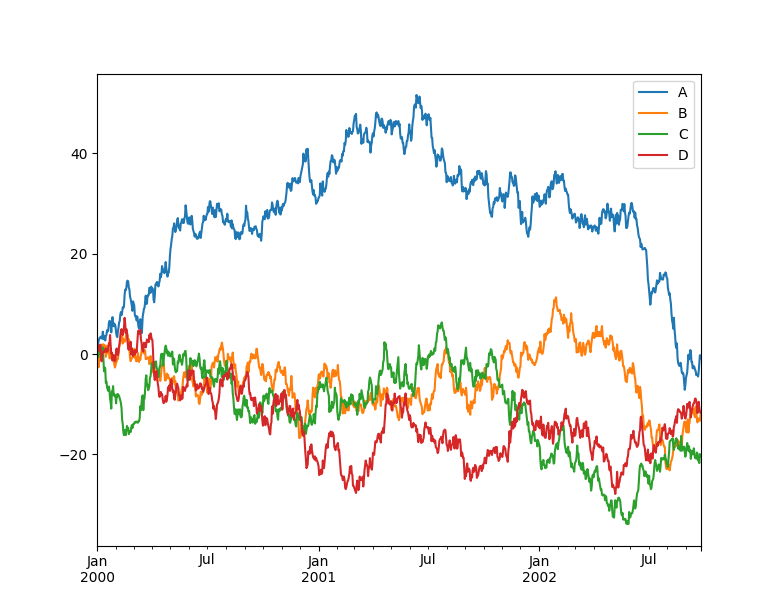

import matplotlib.pyplot as pltimport pandas as pdimport numpy as np ts = pd.Series(np.random.randn(1000 ), index=pd.date_range("1/1/2000" , periods=1000 )) ts = ts.cumsum() df = pd.DataFrame(np.random.randn(1000 , 4 ), index=ts.index, columns=list("ABCD" )) df = df.cumsum() df.plot() plt.show()
Pandas 15、MatplotlibMatplotlib
是Python的绘图库,它提供了一整套和 matlab
相似的命令 API,可以生成出版质量级别的精美图形,Matplotlib
使绘图变得非常简单,在易用性和性能间取得了优异的平衡。

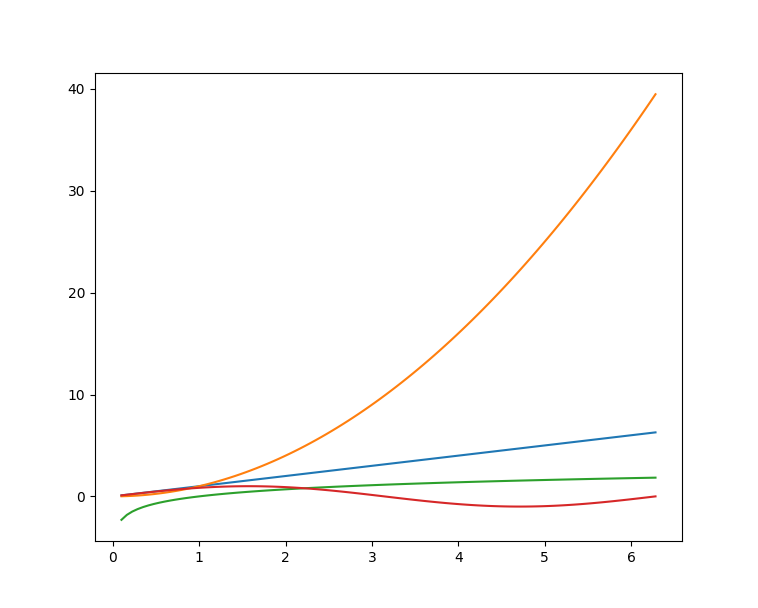

使用 Matplotlib
绘制多曲线图:
# plot_multi_curve.py import numpy as npimport matplotlib.pyplot as plt x = np.linspace(0.1 , 2 * np.pi, 100 ) y_1 = x y_2 = np.square(x) y_3 = np.log(x) y_4 = np.sin(x) plt.plot(x,y_1) plt.plot(x,y_2) plt.plot(x,y_3) plt.plot(x,y_4) plt.show()
Matplotlib 16、SeabornSeaborn
是在 Matplotlib
的基础上进行了更高级的API封装的Python数据可视化库,从而使得作图更加容易,应该把 Seaborn
视为 Matplotlib
的补充,而不是替代物。

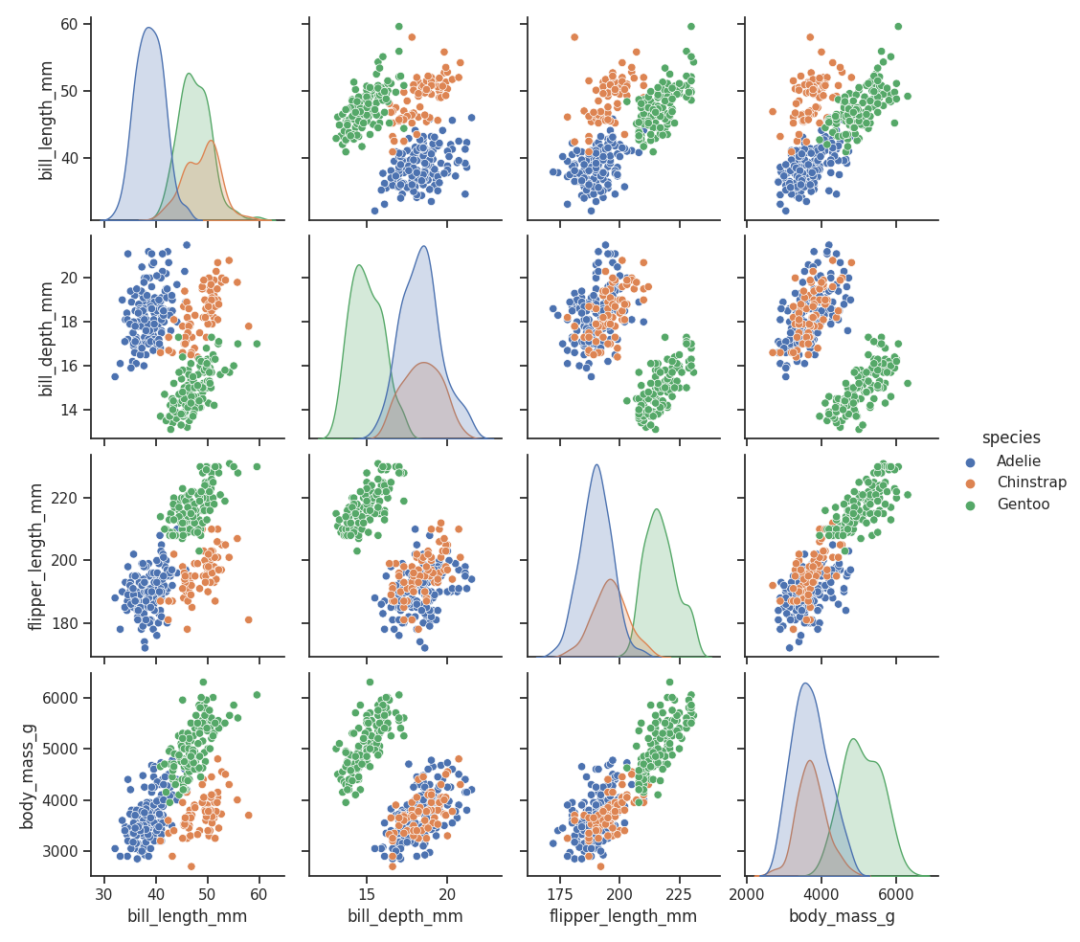

import seaborn as snsimport matplotlib.pyplot as plt sns.set_theme(style="ticks" ) df = sns.load_dataset("penguins" ) sns.pairplot(df, hue="species" ) plt.show()
seaborn 17、OrangeOrange
是一个开源的数据挖掘和机器学习软件,提供了一系列的数据探索、可视化、预处理以及建模组件。Orange
拥有漂亮直观的交互式用户界面,非常适合新手进行探索性数据分析和可视化展示;同时高级用户也可以将其作为 Python
的一个编程模块进行数据操作和组件开发。
使用 pip
即可安装 Orange
,好评~
$ pip install orange3
安装完成后,在命令行输入 orange-canvas
命令即可启动 Orange
图形界面:
$ orange-canvas

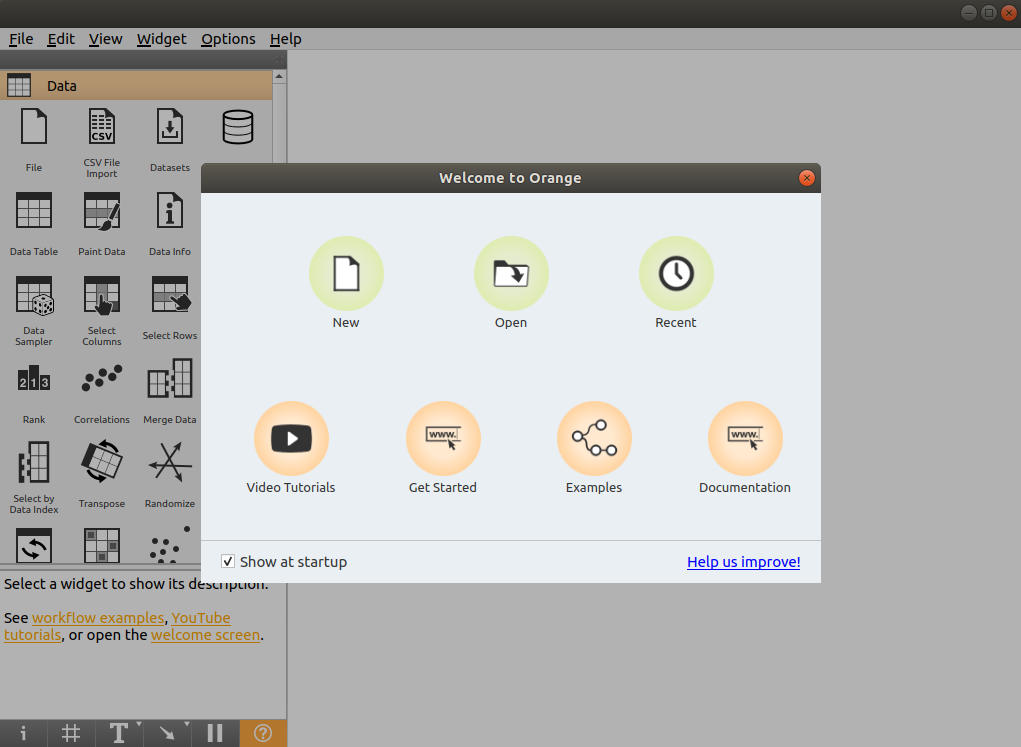

启动完成后,即可看到 Orange
图形界面,进行各种操作。
Orange 18、PyBrainPyBrain
是 Python
的模块化机器学习库。它的目标是为机器学习任务和各种预定义的环境提供灵活、易于使用且强大的算法来测试和比较算法。PyBrain
是 Python-Based Reinforcement Learning, Artificial Intelligence and Neural Network Library
的缩写。
我们将利用一个简单的例子来展示 PyBrain
的用法,构建一个多层感知器 (Multi Layer Perceptron, MLP)。
首先,我们创建一个新的前馈网络对象:
from pybrain.structure import FeedForwardNetwork n = FeedForwardNetwork()
接下来,构建输入、隐藏和输出层:
from pybrain.structure import LinearLayer, SigmoidLayer inLayer = LinearLayer(2 ) hiddenLayer = SigmoidLayer(3 ) outLayer = LinearLayer(1 )
为了使用所构建的层,必须将它们添加到网络中:
n.addInputModule(inLayer) n.addModule(hiddenLayer) n.addOutputModule(outLayer)
可以添加多个输入和输出模块。为了向前计算和反向误差传播,网络必须知道哪些层是输入、哪些层是输出。
这就需要明确确定它们应该如何连接。为此,我们使用最常见的连接类型,全连接层,由 FullConnection 类实现:
from pybrain.structure import FullConnection in_to_hidden = FullConnection(inLayer, hiddenLayer) hidden_to_out = FullConnection(hiddenLayer, outLayer)
与层一样,我们必须明确地将它们添加到网络中:
n.addConnection(in_to_hidden) n.addConnection(hidden_to_out)
所有元素现在都已准备就位,最后,我们需要调用.sortModules()方法使MLP可用:
n.sortModules()
这个调用会执行一些内部初始化,这在使用网络之前是必要的。
19、MilkMILK(MACHINE LEARNING TOOLKIT)
是 Python 语言的机器学习工具包。它主要是包含许多分类器比如 SVMS、K-NN、随机森林以及决策树中使用监督分类法,它还可执行特征选择,可以形成不同的例如无监督学习、密切关系传播和由 MILK 支持的 K-means 聚类等分类系统。
使用 MILK
训练一个分类器:
import numpy as npimport milk features = np.random.rand(100 ,10 ) labels = np.zeros(100 ) features[50 :] += .5 labels[50 :] = 1 learner = milk.defaultclassifier() model = learner.train(features, labels)
# Now you can use the model on new examples: example = np.random.rand(10 ) print(model.apply(example)) example2 = np.random.rand(10 ) example2 += .5 print(model.apply(example2))
20、TensorFlowTensorFlow
是一个端到端开源机器学习平台。它拥有一个全面而灵活的生态系统,一般可以将其分为 TensorFlow1.x 和 TensorFlow2.x,TensorFlow1.x 与 TensorFlow2.x 的主要区别在于 TF1.x 使用静态图而 TF2.x 使用Eager Mode动态图。
这里主要使用TensorFlow2.x作为示例,展示在 TensorFlow2.x 中构建卷积神经网络 (Convolutional Neural Network, CNN)。
import tensorflow as tffrom tensorflow.keras import datasets, layers, models# 数据加载 (train_images, train_labels), (test_images, test_labels) = datasets.cifar10.load_data()# 数据预处理 train_images, test_images = train_images / 255.0 , test_images / 255.0 # 模型构建 model = models.Sequential() model.add(layers.Conv2D(32 , (3 , 3 ), activation='relu' , input_shape=(32 , 32 , 3 ))) model.add(layers.MaxPooling2D((2 , 2 ))) model.add(layers.Conv2D(64 , (3 , 3 ), activation='relu' )) model.add(layers.MaxPooling2D((2 , 2 ))) model.add(layers.Conv2D(64 , (3 , 3 ), activation='relu' )) model.add(layers.Flatten()) model.add(layers.Dense(64 , activation='relu' )) model.add(layers.Dense(10 ))# 模型编译与训练 model.compile(optimizer='adam' , loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True ), metrics=['accuracy' ]) history = model.fit(train_images, train_labels, epochs=10 , validation_data=(test_images, test_labels))
想要了解更多Tensorflow2.x的示例,可以参考专栏 Tensorflow.
21、PyTorchPyTorch
的前身是 Torch,其底层和 Torch 框架一样,但是使用 Python 重新写了很多内容,不仅更加灵活,支持动态图,而且提供了 Python 接口。
# 导入库 import torchfrom torch import nnfrom torch.utils.data import DataLoaderfrom torchvision import datasetsfrom torchvision.transforms import ToTensor, Lambda, Composeimport matplotlib.pyplot as plt# 模型构建 device = "cuda" if torch.cuda.is_available() else "cpu" print("Using {} device" .format(device))# Define model class NeuralNetwork (nn.Module) : def __init__ (self) : super(NeuralNetwork, self).__init__() self.flatten = nn.Flatten() self.linear_relu_stack = nn.Sequential( nn.Linear(28 *28 , 512 ), nn.ReLU(), nn.Linear(512 , 512 ), nn.ReLU(), nn.Linear(512 , 10 ), nn.ReLU() ) def forward (self, x) : x = self.flatten(x) logits = self.linear_relu_stack(x) return logits
model = NeuralNetwork().to(device)# 损失函数和优化器 loss_fn = nn.CrossEntropyLoss() optimizer = torch.optim.SGD(model.parameters(), lr=1e-3 )# 模型训练 def train (dataloader, model, loss_fn, optimizer) : size = len(dataloader.dataset) for batch, (X, y) in enumerate(dataloader): X, y = X.to(device), y.to(device) # Compute prediction error pred = model(X) loss = loss_fn(pred, y) # Backpropagation optimizer.zero_grad() loss.backward() optimizer.step() if batch % 100 == 0 : loss, current = loss.item(), batch * len(X) print(f"loss: {loss:>7 f} [{current:>5 d} /{size:>5 d} ]" )
22、TheanoTheano
是一个 Python 库,它允许定义、优化和有效地计算涉及多维数组的数学表达式,建在 NumPy 之上。
在 Theano
中实现计算雅可比矩阵:
import theanoimport theano.tensor as T x = T.dvector('x' ) y = x ** 2 J, updates = theano.scan(lambda i, y,x : T.grad(y[i], x), sequences=T.arange(y.shape[0 ]), non_sequences=[y,x]) f = theano.function([x], J, updates=updates) f([4 , 4 ])
23、KerasKeras
是一个用 Python 编写的高级神经网络 API,它能够以 TensorFlow, CNTK, 或者 Theano 作为后端运行。Keras 的开发重点是支持快速的实验,能够以最小的时延把想法转换为实验结果。
from keras.models import Sequentialfrom keras.layers import Dense# 模型构建 model = Sequential() model.add(Dense(units=64 , activation='relu' , input_dim=100 )) model.add(Dense(units=10 , activation='softmax' ))# 模型编译与训练 model.compile(loss='categorical_crossentropy' , optimizer='sgd' , metrics=['accuracy' ]) model.fit(x_train, y_train, epochs=5 , batch_size=32 )
24、Caffe在 Caffe2 官方网站上,这样说道:Caffe2
现在是 PyTorch
的一部分。虽然这些 api 将继续工作,但鼓励使用 PyTorch api。
25、MXNetMXNet
是一款设计为效率和灵活性的深度学习框架。它允许混合符号编程和命令式编程,从而最大限度提高效率和生产力。
使用 MXNet
构建手写数字识别模型:
import mxnet as mxfrom mxnet import gluonfrom mxnet.gluon import nnfrom mxnet import autograd as agimport mxnet.ndarray as F# 数据加载 mnist = mx.test_utils.get_mnist() batch_size = 100 train_data = mx.io.NDArrayIter(mnist['train_data' ], mnist['train_label' ], batch_size, shuffle=True ) val_data = mx.io.NDArrayIter(mnist['test_data' ], mnist['test_label' ], batch_size)# CNN模型 class Net (gluon.Block) : def __init__ (self, **kwargs) : super(Net, self).__init__(**kwargs) self.conv1 = nn.Conv2D(20 , kernel_size=(5 ,5 )) self.pool1 = nn.MaxPool2D(pool_size=(2 ,2 ), strides = (2 ,2 )) self.conv2 = nn.Conv2D(50 , kernel_size=(5 ,5 )) self.pool2 = nn.MaxPool2D(pool_size=(2 ,2 ), strides = (2 ,2 )) self.fc1 = nn.Dense(500 ) self.fc2 = nn.Dense(10 ) def forward (self, x) : x = self.pool1(F.tanh(self.conv1(x))) x = self.pool2(F.tanh(self.conv2(x))) # 0 means copy over size from corresponding dimension. # -1 means infer size from the rest of dimensions. x = x.reshape((0 , -1 )) x = F.tanh(self.fc1(x)) x = F.tanh(self.fc2(x)) return x net = Net()# 初始化与优化器定义 # set the context on GPU is available otherwise CPU ctx = [mx.gpu() if mx.test_utils.list_gpus() else mx.cpu()] net.initialize(mx.init.Xavier(magnitude=2.24 ), ctx=ctx) trainer = gluon.Trainer(net.collect_params(), 'sgd' , {'learning_rate' : 0.03 })# 模型训练 # Use Accuracy as the evaluation metric. metric = mx.metric.Accuracy() softmax_cross_entropy_loss = gluon.loss.SoftmaxCrossEntropyLoss()for i in range(epoch): # Reset the train data iterator. train_data.reset() for batch in train_data: data = gluon.utils.split_and_load(batch.data[0 ], ctx_list=ctx, batch_axis=0 ) label = gluon.utils.split_and_load(batch.label[0 ], ctx_list=ctx, batch_axis=0 ) outputs = [] # Inside training scope with ag.record(): for x, y in zip(data, label): z = net(x) # Computes softmax cross entropy loss. loss = softmax_cross_entropy_loss(z, y) # Backpropogate the error for one iteration. loss.backward() outputs.append(z) metric.update(label, outputs) trainer.step(batch.data[0 ].shape[0 ]) # Gets the evaluation result. name, acc = metric.get() # Reset evaluation result to initial state. metric.reset() print('training acc at epoch %d: %s=%f' %(i, name, acc))
26、PaddlePaddle飞桨 (PaddlePaddle)
以百度多年的深度学习技术研究和业务应用为基础,集深度学习核心训练和推理框架、基础模型库、端到端开发套件、丰富的工具组件于一体。是中国首个自主研发、功能完备、开源开放的产业级深度学习平台。
使用 PaddlePaddle
实现 LeNtet5
:
# 导入需要的包 import paddleimport numpy as npfrom paddle.nn import Conv2D, MaxPool2D, Linear## 组网 import paddle.nn.functional as F# 定义 LeNet 网络结构 class LeNet (paddle.nn.Layer) : def __init__ (self, num_classes=1 ) : super(LeNet, self).__init__() # 创建卷积和池化层 # 创建第1个卷积层 self.conv1 = Conv2D(in_channels=1 , out_channels=6 , kernel_size=5 ) self.max_pool1 = MaxPool2D(kernel_size=2 , stride=2 ) # 尺寸的逻辑:池化层未改变通道数;当前通道数为6 # 创建第2个卷积层 self.conv2 = Conv2D(in_channels=6 , out_channels=16 , kernel_size=5 ) self.max_pool2 = MaxPool2D(kernel_size=2 , stride=2 ) # 创建第3个卷积层 self.conv3 = Conv2D(in_channels=16 , out_channels=120 , kernel_size=4 ) # 尺寸的逻辑:输入层将数据拉平[B,C,H,W] -> [B,C*H*W] # 输入size是[28,28],经过三次卷积和两次池化之后,C*H*W等于120 self.fc1 = Linear(in_features=120 , out_features=64 ) # 创建全连接层,第一个全连接层的输出神经元个数为64, 第二个全连接层输出神经元个数为分类标签的类别数 self.fc2 = Linear(in_features=64 , out_features=num_classes) # 网络的前向计算过程 def forward (self, x) : x = self.conv1(x) # 每个卷积层使用Sigmoid激活函数,后面跟着一个2x2的池化 x = F.sigmoid(x) x = self.max_pool1(x) x = F.sigmoid(x) x = self.conv2(x) x = self.max_pool2(x) x = self.conv3(x) # 尺寸的逻辑:输入层将数据拉平[B,C,H,W] -> [B,C*H*W] x = paddle.reshape(x, [x.shape[0 ], -1 ]) x = self.fc1(x) x = F.sigmoid(x) x = self.fc2(x) return x
27、CNTKCNTK(Cognitive Toolkit)
是一个深度学习工具包,通过有向图将神经网络描述为一系列计算步骤。在这个有向图中,叶节点表示输入值或网络参数,而其他节点表示对其输入的矩阵运算。CNTK
可以轻松地实现和组合流行的模型类型,如 CNN
等。
CNTK
用网络描述语言 (network description language, NDL)
描述一个神经网络。简单的说,要描述输入的 feature,输入的 label,一些参数,参数和输入之间的计算关系,以及目标节点是什么。
NDLNetworkBuilder=[ run=ndlLR ndlLR=[ # sample and label dimensions SDim=$dimension$ LDim=1 features=Input(SDim, 1 ) labels=Input(LDim, 1 ) # parameters to learn B0 = Parameter(4 ) W0 = Parameter(4 , SDim) B = Parameter(LDim) W = Parameter(LDim, 4 ) # operations t0 = Times(W0, features) z0 = Plus(t0, B0) s0 = Sigmoid(z0) t = Times(W, s0) z = Plus(t, B) s = Sigmoid(z) LR = Logistic(labels, s) EP = SquareError(labels, s) # root nodes FeatureNodes=(features) LabelNodes=(labels) CriteriaNodes=(LR) EvalNodes=(EP) OutputNodes=(s,t,z,s0,W0) ] ]
