SQL （结构化查询语言）数据库在二十世纪 70 年代初开始流行。

当时，存储非常昂贵，因此软件工程师对其数据库进行规范化以减少数据重复。

此外，二十世纪70年代的软件工程师，通常也遵循瀑布式软件开发模型。在开始开发之前详细规划项目。软件工程师精心创建复杂的实体关系 (E-R) 图，确保已仔细考虑需要存储的所有数据。

由于采用了这种预先计划模型，因此如果开发周期中的需求发生变化，软件工程师就难以调整适应。结果，项目经常超出预算，超过截止日期，无法满足用户需求。

• 复杂性导致不可预测性。SQL 的表现力使得推断每个查询的成本以及工作负载的成本具有挑战性。虽然更简单的查询语言可能会使应用程序逻辑复杂化，但它们可以更轻松地配置仅响应简单请求的数据存储系统。
• 有很多方法可以对问题进行建模。关系数据模型是严格的：分配给每个表的模式指定每一行中的数据。如果我们存储结构化程度较低的数据，或者存储的列中变化较大的行，则关系模型可能会受到不必要的限制。同样，应用程序开发人员可能不会发现关系模型非常适合对每种数据进行建模。例如，很多应用程序逻辑是用面向对象的语言编写的，包括列表、队列和集合等高级概念，一些程序员希望他们的持久层对此进行建模。
• 如果数据增长超过了一台服务器的容量，那么数据库中的表将不得不跨计算机进行分区。为避免 JOIN 必须跨网络获取不同表中的数据，我们必须对其进行非规范化。非规范化将人们可能想要一次查找的不同表中的所有数据存储在一个地方。这使我们的数据库看起来像一个键查找存储系统，让我们想知道其他数据模型可能更适合这些数据。

• Complexity leads to unpredictability. SQL's expressiveness makes it challenging to reason about the cost of each query, and thus the cost of a workload. While simpler query languages might complicate application logic, they make it easier to provision data storage systems, which only respond to simple requests.
• There are many ways to model a problem. The relational data model is strict: the schema assigned to each table specifies the data in each row. If we are storing less structured data, or rows with more variance in the columns they store, the relational model may be needlessly restrictive. Similarly, application developers might not find the relational model perfect for modeling every kind of data. For example, a lot of application logic is written in object-oriented languages and includes high-level concepts such as lists, queues, and sets, and some programmers would like their persistence layer to model this.
• If the data grows past the capacity of one server, then the tables in the database will have to be partitioned across computers. To avoid JOINs having to cross the network in order to get data in different tables, we will have to denormalize it. Denormalization stores all of the data from different tables that one might want to look up at once in a single place. This makes our database look like a key-lookup storage system, leaving us wondering what other data models might better suit the data.

SQL vs NoSQL - Difference B/W SQL & NoSQL Databases

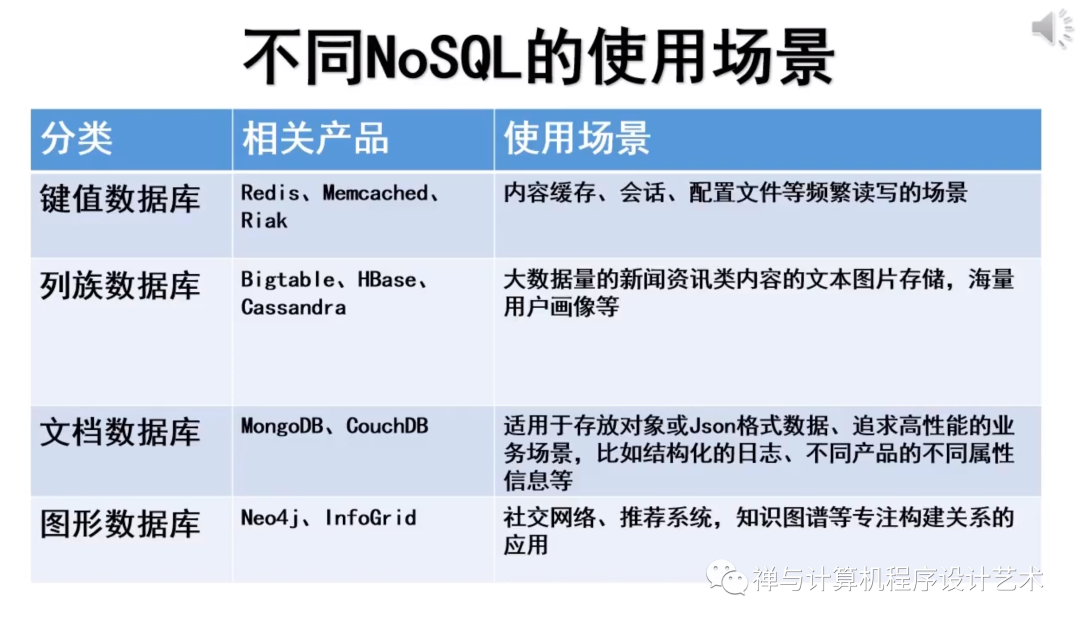

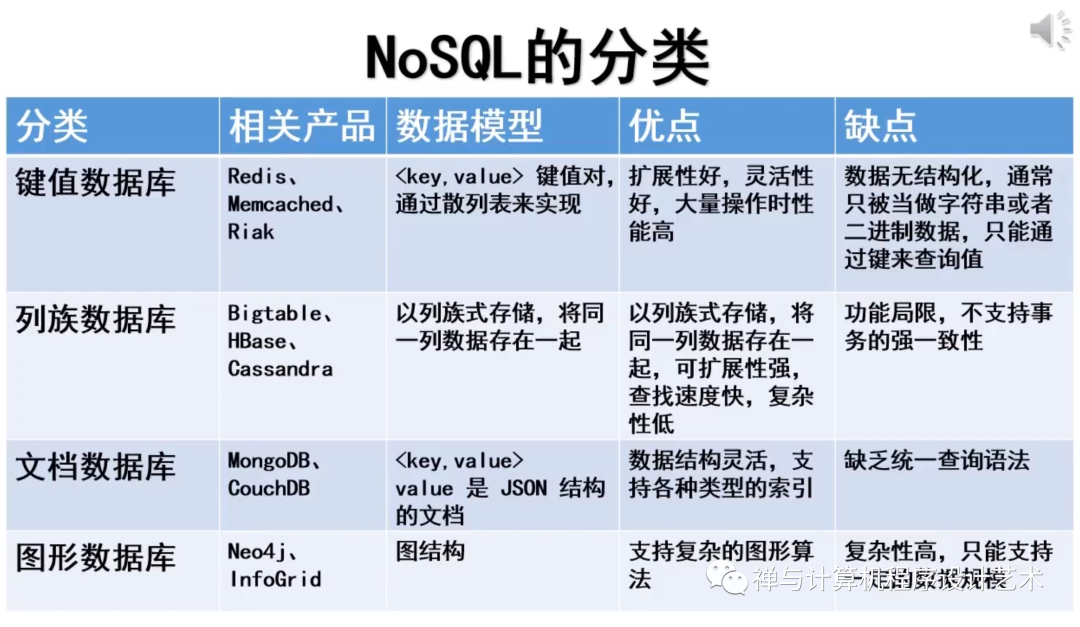

NoSQL 数据库有哪些类型？

随着时间的推移，出现了四种主要的 NoSQL 数据库类型：[文档数据库] (https://www.mongodb.com/document-databases)，[键值数据库] (https://www.mongodb.com/key-value-database)，宽列存储数据库和图形数据库让我们一起来看看每种类型。

• 数据和查询模型：您的数据是表示为行、对象、数据结构还是文档？你能要求数据库计算多条记录的聚合吗？
• 持久性：当你改变一个值时，它会立即进入稳定存储吗？它是否存储在多台机器上以防其中一台机器崩溃？
• 可扩展性：您的数据是否适合单个服务器？读写量是否需要多个磁盘来处理工作负载？
• 分区：出于可扩展性、可用性或持久性的原因，数据是否需要存在于多个服务器上？您如何知道哪个记录在哪个服务器上？
• 一致性：如果您在多个服务器上对记录进行分区和复制，当记录更改时服务器如何协调？
• 事务语义：当你运行一系列操作时，一些数据库允许你将它们包装在一个事务中，这为事务和当前运行的所有其他事务提供了 ACID（原子性、一致性、隔离性和持久性）保证的一些子集。您的业务逻辑是否需要这些通常伴随性能权衡的保证？
• 单服务器性能：如果您想将数据安全地存储在磁盘上，哪些磁盘数据结构最适合读取密集型或写入密集型工作负载？写入磁盘是您的瓶颈吗？
• 分析工作负载：我们将非常关注运行响应式的以用户为中心的 Web 应用程序所需的那种查找繁重的工作负载。在许多情况下，您将希望构建数据集大小的报告，例如聚合多个用户的统计数据。您的用例和工具链是否需要此类功能？

• Data and query model: Is your data represented as rows, objects, data structures, or documents? Can you ask the database to calculate aggregates over multiple records?
• Durability: When you change a value, does it immediately go to stable storage? Does it get stored on multiple machines in case one crashes?
• Scalability: Does your data fit on a single server? Do the amount of reads and writes require multiple disks to handle the workload?
• Partitioning: For scalability, availability, or durability reasons, does the data need to live on multiple servers? How do you know which record is on which server?
• Consistency: If you've partitioned and replicated your records across multiple servers, how do the servers coordinate when a record changes?
• Transactional semantics: When you run a series of operations, some databases allow you to wrap them in a transaction, which provides some subset of ACID (Atomicity, Consistency, Isolation, and Durability) guarantees on the transaction and all others currently running. Does your business logic require these guarantees, which often come with performance tradeoffs?
• Single-server performance: If you want to safely store data on disk, what on-disk data structures are best-geared toward read-heavy or write-heavy workloads? Is writing to disk your bottleneck?
• Analytical workloads: We're going to pay a lot of attention to lookup-heavy workloads of the kind you need to run a responsive user-focused web application. In many cases, you will want to build dataset-sized reports, aggregating statistics across multiple users for example. Does your use-case and toolchain require such functionality?

There are various ways to classify NoSQL databases, with different categories and subcategories, some of which overlap. What follows is a non-exhaustive classification by data model, with examples:

NoSQL 数据和查询模型

基于键的 NoSQL 数据模型——一切皆是映射

In key lookup-based systems, complex join operations or multiple-key retrieval of the same data might require creative uses of key names. A programmer wishing to look up an employee by his employee ID and to look up all employees in a department might create two key types. For example, the key employee:30 would point to an employee record for employee ID 30, and employee_departments:20 might contain a list of all employees in department 20. A join operation gets pushed into application logic: to retrieve employees in department 20, an application first retrieves a list of employee IDs from key employee_departments:20, and then loops over key lookups for each  employee:ID in the employee list.

键值存储

Key-Value Stores

The simplest form of NoSQL store is a key-value store. Each key is mapped to a value containing arbitrary data. The NoSQL store has no knowledge of the contents of its payload, and simply delivers the data to the application. In our Employee database example, one might map the key employee:30 to a blob containing JSON or a binary format such as Protocol Buffers4, Thrift5, or Avro6 in order to encapsulate the information about employee 30.

If a developer uses structured formats to store complex data for a key, she must operate against the data in application space: a key-value data store generally offers no mechanisms for querying for keys based on some property of their values. Key-value stores shine in the simplicity of their query model, usually consisting of set, get, and delete primitives, but discard the ability to add simple in-database filtering capabilities due to the opacity of their values. Voldemort, which is based on Amazon's Dynamo, provides a distributed key-value store. BDB7 offers a persistence library that has a key-value interface.

关键数据结构存储

Key-Data Structure Stores

Key-data structure stores, made popular by Redis8, assign each value a type. In Redis, the available types a value can take on are integer, string, list, set, and sorted set. In addition to set/get/delete, type-specific commands, such as increment/decrement for integers, or push/pop for lists, add functionality to the query model without drastically affecting performance characteristics of requests. By providing simple type-specific functionality while avoiding multi-key operations such as aggregation or joins, Redis balances functionality and performance.

关键文件存储

Key-Document Stores

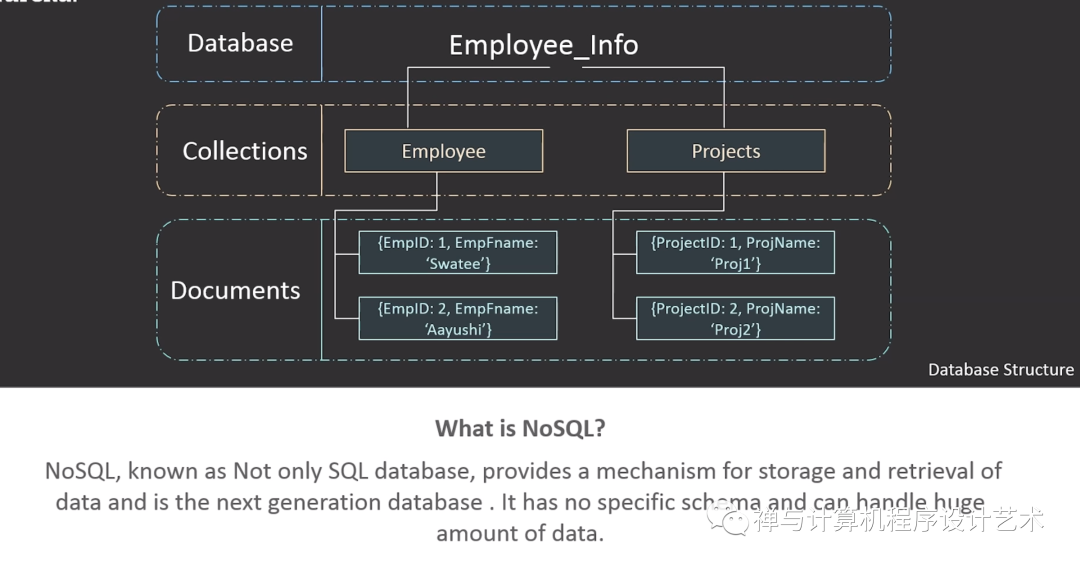

Key-document stores, such as CouchDB9, MongoDB10, and Riak11, map a key to some document that contains structured information. These systems store documents in a JSON or JSON-like format. They store lists and dictionaries, which can be embedded recursively inside one-another.

MongoDB separates the keyspace into collections, so that keys for Employees and Department, for example, do not collide. CouchDB and Riak leave type-tracking to the developer. The freedom and complexity of document stores is a double-edged sword: application developers have a lot of freedom in modeling their documents, but application-based query logic can become exceedingly complex.

BigTable 列族存储

BigTable Column Family Stores

HBase and Cassandra base their data model on the one used by Google's BigTable. In this model, a key identifies a row, which contains data stored in one or more Column Families (CFs). Within a CF, each row can contain multiple columns. The values within each column are timestamped, so that several versions of a row-column mapping can live within a CF.

Conceptually, one can think of Column Families as storing complex keys of the form (row ID, CF, column, timestamp), mapping to values which are sorted by their keys. This design results in data modeling decisions which push a lot of functionality into the keyspace. It is particularly good at modeling historical data with timestamps. The model naturally supports sparse column placement since row IDs that do not have certain columns do not need an explicit NULL value for those columns. On the flip side, columns which have few or no NULL values must still store the column identifier with each row, which leads to greater space consumption.

Each project data model differs from the original BigTable model in various ways, but Cassandra's changes are most notable. Cassandra introduces the notion of a supercolumn within each CF to allow for another level of mapping, modeling, and indexing. It also does away with a notion of locality groups, which can physically store multiple column families together for performance reasons.

图存储

Graph Storage

One class of NoSQL stores are graph stores. Not all data is created equal, and the relational and key-oriented data models of storing and querying data are not the best for all data. Graphs are a fundamental data structure in computer science, and systems such as HyperGraphDB12 and Neo4J13 are two popular NoSQL storage systems for storing graph-structured data. Graph stores differ from the other stores we have discussed thus far in almost every way: data models, data traversal and querying patterns, physical layout of data on disk, distribution to multiple machines, and the transactional semantics of queries. We can not do these stark differences justice given space limitations, but you should be aware that certain classes of data may be better stored and queried as a graph.

复杂查询

Complex Queries

There are notable exceptions to key-only lookups in NoSQL systems. MongoDB allows you to index your data based on any number of properties and has a relatively high-level language for specifying which data you want to retrieve. BigTable-based systems support scanners to iterate over a column family and select particular items by a filter on a column. CouchDB allows you to create different views of the data, and to run MapReduce tasks across your table to facilitate more complex lookups and updates. Most of the systems have bindings to Hadoop or another MapReduce framework to perform dataset-scale analytical queries.

事务

Transactions

NoSQL systems generally prioritize performance over transactional semantics. Other SQL-based systems allow any set of statements—from a simple primary key row retrieval, to a complicated join between several tables which is then subsequently averaged across several fields—to be placed in a transaction.

These SQL databases will offer ACID guarantees between transactions. Running multiple operations in a transaction is Atomic (the A in ACID), meaning all or none of the operations happen. Consistency (the C) ensures that the transaction leaves the database in a consistent, uncorrupted state. Isolation (the I) makes sure that if two transactions touch the same record, they will do without stepping on each other's feet. Durability (the D, covered extensively in the next section), ensures that once a transaction is committed, it's stored in a safe place.

ACID-compliant transactions keep developers sane by making it easy to reason about the state of their data. Imagine multiple transactions, each of which has multiple steps (e.g., first check the value of a bank account, then subtract $60, then update the value). ACID-compliant databases often are limited in how they can interleave these steps while still providing a correct result across all transactions. This push for correctness results in often-unexpected performance characteristics, where a slow transaction might cause an otherwise quick one to wait in line.

Most NoSQL systems pick performance over full ACID guarantees, but do provide guarantees at the key level: two operations on the same key will be serialized, avoiding serious corruption to key-value pairs. For many applications, this decision will not pose noticeable correctness issues, and will allow quick operations to execute with more regularity. It does, however, leave more considerations for application design and correctness in the hands of the developer.

Redis is the notable exception to the no-transaction trend. On a single server, it provides a MULTI command to combine multiple operations atomically and consistently, and a WATCH command to allow isolation. Other systems provide lower-level test-and-set functionality which provides some isolation guarantees.

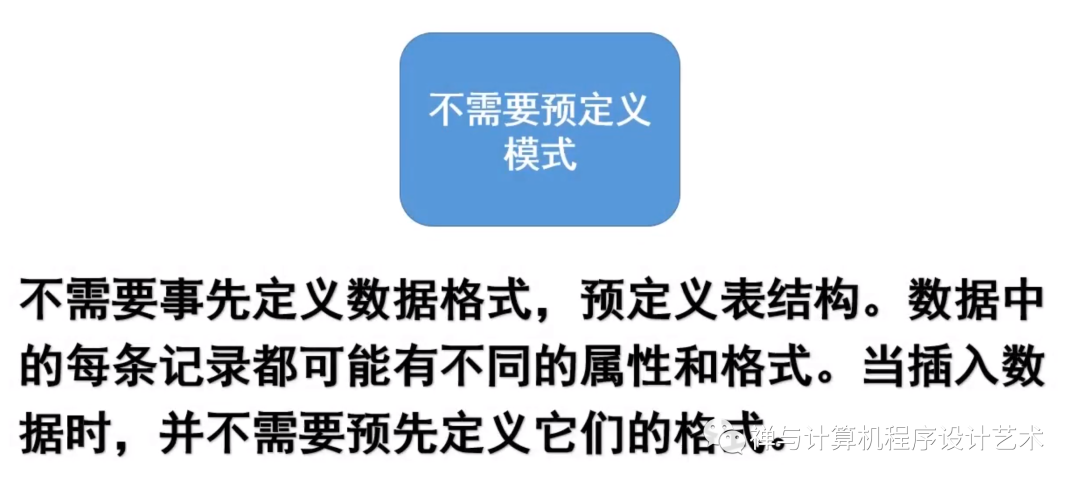

无模式存储

Schema-free Storage

A cross-cutting property of many NoSQL systems is the lack of schema enforcement in the database. Even in document stores and column family-oriented stores, properties across similar entities are not required to be the same. This has the benefit of supporting less structured data requirements and requiring less performance expense when modifying schemas on-the-fly. The decision leaves more responsibility to the application developer, who now has to program more defensively. For example, is the lack of a lastname property on an employee record an error to be rectified, or a schema update which is currently propagating through the system? Data and schema versioning is common in application-level code after a few iterations of a project which relies on sloppy-schema NoSQL systems.

数据持久性 Data Durability

Ideally, all data modifications on a storage system would immediately be safely persisted and replicated to multiple locations to avoid data loss. However, ensuring data safety is in tension with performance, and different NoSQL systems make different data durability guarantees in order to improve performance. Failure scenarios are varied and numerous, and not all NoSQL systems protect you against these issues.

A simple and common failure scenario is a server restart or power loss. Data durability in this case involves having moved the data from memory to a hard disk, which does not require power to store data. Hard disk failure is handled by copying the data to secondary devices, be they other hard drives in the same machine (RAID mirroring) or other machines on the network. However, a data center might not survive an event which causes correlated failure (a tornado, for example), and some organizations go so far as to copy data to backups in data centers several hurricane widths apart. Writing to hard drives and copying data to multiple servers or data centers is expensive, so different NoSQL systems trade off durability guarantees for performance.

单机持久性 Single-server Durability

The simplest form of durability is a single-server durability, which ensures that any data modification will survive a server restart or power loss. This usually means writing the changed data to disk, which often bottlenecks your workload. Even if you order your operating system to write data to an on-disk file, the operating system may buffer the write, avoiding an immediate modification on disk so that it can group several writes together into a single operation. Only when the fsync system call is issued does the operating system make a best-effort attempt to ensure that buffered updates are persisted to disk.

Typical hard drives can perform 100-200 random accesses (seeks) per second, and are limited to 30-100 MB/sec of sequential writes. Memory can be orders of magnitudes faster in both scenarios. Ensuring efficient single-server durability means limiting the number of random writes your system incurs, and increasing the number of sequential writes per hard drive. Ideally, you want a system to minimize the number of writes between fsync calls, maximizing the number of those writes that are sequential, all the while never telling the user their data has been successfully written to disk until that write has been  fsynced. Let's cover a few techniques for improving performance of single-server durability guarantees.

控制fsync频率

Control fsync Frequency

Memcached14 is an example of a system which offers no on-disk durability in exchange for extremely fast in-memory operations. When a server restarts, the data on that server is gone: this makes for a good cache and a poor durable data store.

Redis offers developers several options for when to call fsync. Developers can force an fsync call after every update, which is the slow and safe choice. For better performance, Redis can fsync its writes every N seconds. In a worst-case scenario, the you will lose last N seconds worth of operations, which may be acceptable for certain uses. Finally, for use cases where durability is not important (maintaining coarse-grained statistics, or using Redis as a cache), the developer can turn off fsync calls entirely: the operating system will eventually flush the data to disk, but without guarantees of when this will happen.

通过日志记录增加顺序写入

Increase Sequential Writes by Logging

Several data structures, such as B+Trees, help NoSQL systems quickly retrieve data from disk. Updates to those structures result in updates in random locations in the data structures' files, resulting in several random writes per update if you fsync after each update. To reduce random writes, systems such as Cassandra, HBase, Redis, and Riak append update operations to a sequentially-written file called a log. While other data structures used by the system are only periodically fsynced, the log is frequently fsynced. By treating the log as the ground-truth state of the database after a crash, these storage engines are able to turn random updates into sequential ones.

While NoSQL systems such as MongoDB perform writes in-place in their data structures, others take logging even further. Cassandra and HBase use a technique borrowed from BigTable of combining their logs and lookup data structures into one log-structured merge tree. Riak provides similar functionality with a log-structured hash table. CouchDB has modified the traditional B+Tree so that all changes to the data structure are appended to the structure on physical storage. These techniques result in improved write throughput, but require a periodic log compaction to keep the log from growing unbounded.

通过分组写入提高吞吐量

Increase Throughput by Grouping Writes

Cassandra groups multiple concurrent updates within a short window into a single fsync  call. This design, called group commit, results in higher latency per update, as users have to wait on several concurrent updates to have their own update be acknowledged. The latency bump comes at an increase in throughput, as multiple log appends can happen with a single fsync. As of this writing, every HBase update is persisted to the underlying storage provided by the Hadoop Distributed File System (HDFS)15, which has recently seen patches to allow support of appends that respect fsync and group commit.

多服务器持久性

Multi-server Durability

Because hard drives and machines often irreparably fail, copying important data across machines is necessary. Many NoSQL systems offer multi-server durability for data.

Redis takes a traditional master-slave approach to replicating data. All operations executed against a master are communicated in a log-like fashion to slave machines, which replicate the operations on their own hardware. If a master fails, a slave can step in and serve the data from the state of the operation log that it received from the master. This configuration might result in some data loss, as the master does not confirm that the slave has persisted an operation in its log before acknowledging the operation to the user.

CouchDB facilitates a similar form of directional replication, where servers can be configured to replicate changes to documents on other stores.

MongoDB provides the notion of replica sets, where some number of servers are responsible for storing each document. MongoDB gives developers the option of ensuring that all replicas have received updates, or to proceed without ensuring that replicas have the most recent data. Many of the other distributed NoSQL storage systems support multi-server replication of data.

HBase, which is built on top of HDFS, receives multi-server durability through HDFS. All writes are replicated to two or more HDFS nodes before returning control to the user, ensuring multi-server durability.

Riak, Cassandra, and Voldemort support more configurable forms of replication. With subtle differences, all three systems allow the user to specify N, the number of machines which should ultimately have a copy of the data, and W<N, the number of machines that should confirm the data has been written before returning control to the user.

To handle cases where an entire data center goes out of service, multi-server replication across data centers is required. Cassandra, HBase, and Voldemort have rack-aware configurations, which specify the rack or data center in which various machines are located. In general, blocking the user's request until a remote server has acknowledged an update incurs too much latency. Updates are streamed without confirmation when performed across wide area networks to backup data centers.

扩展性能

Scaling for Performance

Having just spoken about handling failure, let's imagine a rosier situation: success! If the system you build reaches success, your data store will be one of the components to feel stress under load. A cheap and dirty solution to such problems is to scale up your existing machinery: invest in more RAM and disks to handle the workload on one machine. With more success, pouring money into more expensive hardware will become infeasible. At this point, you will have to replicate data and spread requests across multiple machines to distribute load. This approach is called scale out, and is measured by the horizontal scalability of your system.

The ideal horizontal scalability goal is linear scalability, in which doubling the number of machines in your storage system doubles the query capacity of the system. The key to such scalability is in how the data is spread across machines. Sharding is the act of splitting your read and write workload across multiple machines to scale out your storage system. Sharding is fundamental to the design of many systems, namely Cassandra, HBase, Voldemort, and Riak, and more recently MongoDB and Redis. Some projects such as CouchDB focus on single-server performance and do not provide an in-system solution to sharding, but secondary projects provide coordinators to partition the workload across independent installations on multiple machines.

Let's cover a few interchangeable terms you might encounter. We will use the terms sharding and partitioning interchangeably. The terms machine, server, or node refer to some physical computer which stores part of the partitioned data. Finally, a cluster or ring refers to the set of machines which participate in your storage system.

Sharding means that no one machine has to handle the write workload on the entire dataset, but no one machine can answer queries about the entire dataset. Most NoSQL systems are key-oriented in both their data and query models, and few queries touch the entire dataset anyway. Because the primary access method for data in these systems is key-based, sharding is typically key-based as well: some function of the key determines the machine on which a key-value pair is stored.

We'll cover two methods of defining the key-machine mapping: hash partitioning and range partitioning.

除非必须，否则不要分片

读取副本

缓存

Do Not Shard Until You Have To

Sharding adds system complexity, and where possible, you should avoid it. Let's cover two ways to scale without sharding: read replicas and caching.

Read Replicas

Many storage systems see more read requests than write requests. A simple solution in these cases is to make copies of the data on multiple machines. All write requests still go to a master node. Read requests go to machines which replicate the data, and are often slightly stale with respect to the data on the write master.

If you are already replicating your data for multi-server durability in a master-slave configuration, as is common in Redis, CouchDB, or MongoDB, the read slaves can shed some load from the write master. Some queries, such as aggregate summaries of your dataset, which might be expensive and often do not require up-to-the-second freshness, can be executed against the slave replicas. Generally, the less stringent your demands for freshness of content, the more you can lean on read slaves to improve read-only query performance.

Caching

Caching the most popular content in your system often works surprisingly well. Memcached dedicates blocks of memory on multiple servers to cache data from your data store. Memcached clients take advantage of several horizontal scalability tricks to distribute load across Memcached installations on different servers. To add memory to the cache pool, just add another Memcached host.

Because Memcached is designed for caching, it does not have as much architectural complexity as the persistent solutions for scaling workloads. Before considering more complicated solutions, think about whether caching can solve your scalability woes. Caching is not solely a temporary band-aid: Facebook has Memcached installations in the range of tens of terabytes of memory!

Read replicas and caching allow you to scale up your read-heavy workloads. When you start to increase the frequency of writes and updates to your data, however, you will also increase the load on the master server that contains all of your up-to-date data. For the rest of this section, we will cover techniques for sharding your write workload across multiple servers.

通过协调器分片

Sharding Through Coordinators

The CouchDB project focuses on the single-server experience. Two projects, Lounge and BigCouch, facilitate sharding CouchDB workloads through an external proxy, which acts as a front end to standalone CouchDB instances. In this design, the standalone installations are not aware of each other. The coordinator distributes requests to individual CouchDB instances based on the key of the document being requested.

Twitter has built the notions of sharding and replication into a coordinating framework called Gizzard16 . Gizzard takes standalone data stores of any type—you can build wrappers for SQL or NoSQL storage systems—and arranges them in trees of any depth to partition keys by key range. For fault tolerance, Gizzard can be configured to replicate data to multiple physical machines for the same key range.

一致性哈希环

哈希环实例 Hash Rings by Example

复制数据

实现更好的分配

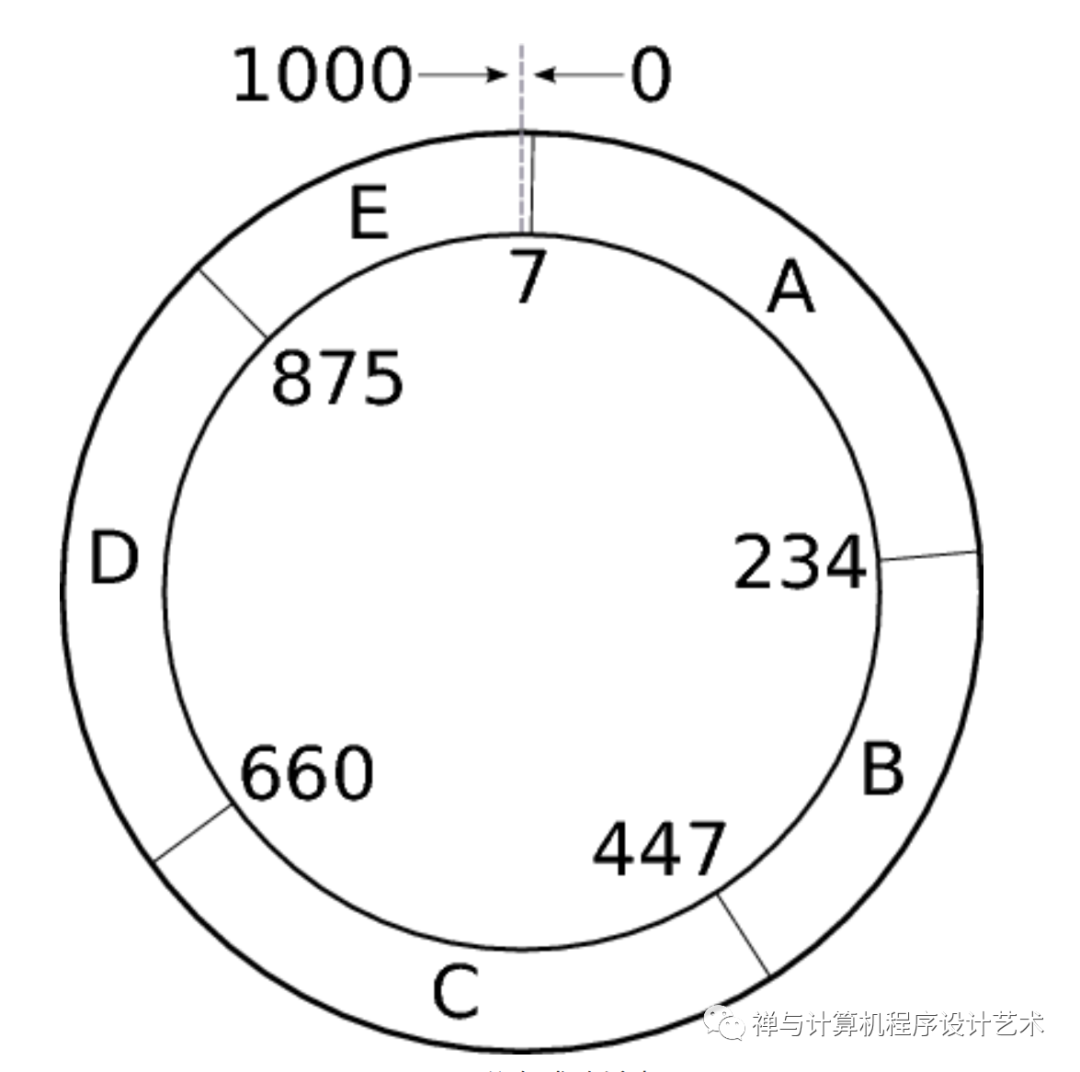

Consistent hash rings work as follows. Say we have a hash function H that maps keys to uniformly distributed large integer values. We can form a ring of numbers in the range [1, L] that wraps around itself with these values by taking H(key) mod L for some relatively large integer L. This will map each key into the range [1,L]. A consistent hash ring of servers is formed by taking each server's unique identifier (say its IP address), and applying H to it. You can get an intuition for how this works by looking at the hash ring formed by five servers (A -E) in Figure 13.1.

There, we picked L = 1000. Let's say that H(A) mod L = 7, H(B) mod L = 234, H(C) mod L = 447, H(D) mod L = 660, and H(E) mod L = 875. We can now tell which server a key should live on. To do this, we map all keys to a server by seeing if it falls in the range between that server and the next one in the ring. For example, A is responsible for keys whose hash value falls in the range [7,233], and E is responsible for keys in the range [875, 6] (this range wraps around on itself at 1000). So if H('employee30') mod L = 899, it will be stored by server E, and if H('employee31') mod L = 234, it will be stored on server B.

Replicating Data

Replication for multi-server durability is achieved by passing the keys and values in one server's assigned range to the servers following it in the ring. For example, with a replication factor of 3, keys mapped to the range [7,233] will be stored on servers A, B, and C. If A were to fail, its neighbors B and C would take over its workload. In some designs, E would replicate and take over A's workload temporarily, since its range would expand to include A's.

Achieving Better Distribution

While hashing is statistically effective at uniformly distributing a keyspace, it usually requires many servers before it distributes evenly. Unfortunately, we often start with a small number of servers that are not perfectly spaced apart from one-another by the hash function. In our example, A's key range is of length 227, whereas E's range is 132. This leads to uneven load on different servers. It also makes it difficult for servers to take over for one-another when they fail, since a neighbor suddenly has to take control of the entire range of the failed server.

To solve the problem of uneven large key ranges, many DHTs including Riak create several `virtual' nodes per physical machine. For example, with 4 virtual nodes, server A will act as server A_1, A_2, A_3, and A_4. Each virtual node hashes to a different value, giving it more opportunity to manage keys distributed to different parts of the keyspace. Voldemort takes a similar approach, in which the number of partitions is manually configured and usually larger than the number of servers, resulting in each server receiving a number of smaller partitions.

Cassandra does not assign multiple small partitions to each server, resulting in sometimes uneven key range distributions. For load-balancing, Cassandra has an asynchronous process which adjusts the location of servers on the ring depending on their historic load.

范围分区

Range Partitioning

In the range partitioning approach to sharding, some machines in your system keep metadata about which servers contain which key ranges. This metadata is consulted to route key and range lookups to the appropriate servers.

Like the consistent hash ring approach, this range partitioning splits the keyspace into ranges, with each key range being managed by one machine and potentially replicated to others.

Unlike the consistent hashing approach, two keys that are next to each other in the key's sort order are likely to appear in the same partition. This reduces the size of the routing metadata, as large ranges are compressed to [start, end] markers.

In adding active record-keeping of the range-to-server mapping, the range partitioning approach allows for more fine-grained control of load-shedding from heavily loaded servers. If a specific key range sees higher traffic than other ranges, a load manager can reduce the size of the range on that server, or reduce the number of shards that this server serves. The added freedom to actively manage load comes at the expense of extra architectural components which monitor and route shards.

BigTable 方式

The BigTable Way

Google's BigTable paper describes a range-partitioning hierarchical technique for sharding data into tablets. A tablet stores a range of row keys and values within a column family. It maintains all of the necessary logs and data structures to answer queries about the keys in its assigned range. Tablet servers serve multiple tablets depending on the load each tablet is experiencing.

Each tablet is kept at a size of 100-200 MB. As tablets change in size, two small tablets with adjoining key ranges might be combined, or a large tablet might be split in two. A master server analyzes tablet size, load, and tablet server availability. The master adjusts which tablet server serves which tablets at any time.

The master server maintains the tablet assignment in a metadata table. Because this metadata can get large, the metadata table is also sharded into tablets that map key ranges to tablets and tablet servers responsible for those ranges. This results in a three-layer hierarchy traversal for clients to find a key on its hosting tablet server, as depicted in Figure 13.2.

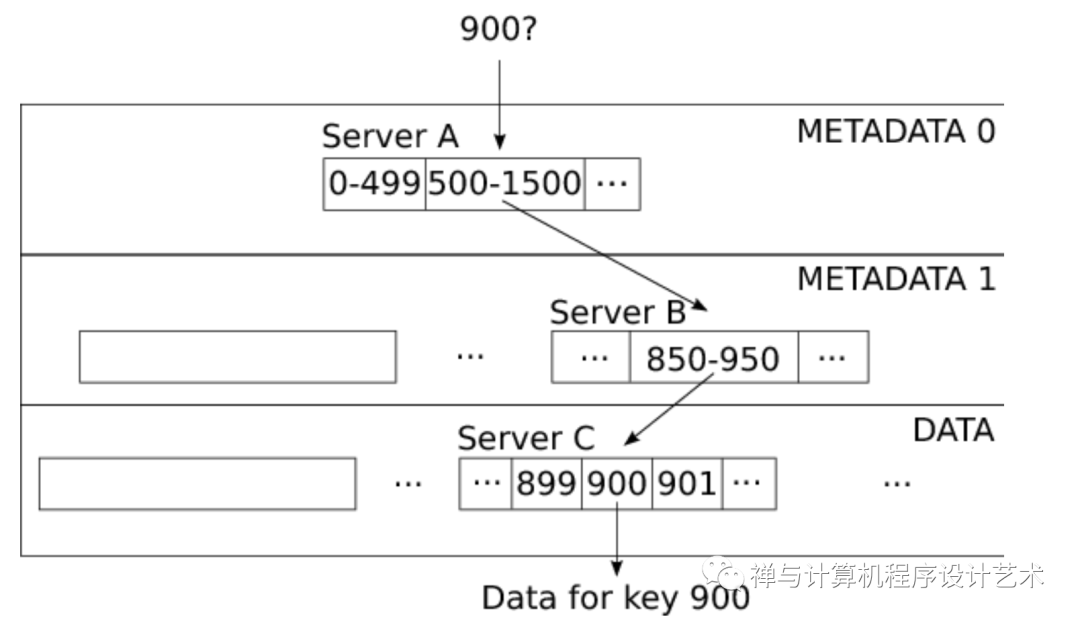

Let's look at an example. A client searching for key 900 will query server A, which stores the tablet for metadata level 0. This tablet identifies the metadata level 1 tablet on server 6 containing key ranges 500-1500. The client sends a request to server B with this key, which responds that the tablet containing keys 850-950 is found on a tablet on server C. Finally, the client sends the key request to server C, and gets the row data back for its query. Metadata tablets at level 0 and 1 may be cached by the client, which avoids putting undue load on their tablet servers from repeat queries. The BigTable paper explains that this 3-level hierarchy can accommodate 261 bytes worth of storage using 128MB tablets.

处理失败

Handling Failures

The master is a single point of failure in the BigTable design, but can go down temporarily without affecting requests to tablet servers. If a tablet server fails while serving tablet requests, it is up to the master to recognize this and re-assign its tablets while requests temporarily fail.

In order to recognize and handle machine failures, the BigTable paper describes the use of Chubby, a distributed locking system for managing server membership and liveness. ZooKeeper17 is the open source implementation of Chubby, and several Hadoop-based projects utilize it to manage secondary master servers and tablet server reassignment.

基于范围分区的 NoSQL 项目

Range Partitioning-based NoSQL Projects

HBase employs BigTable's hierarchical approach to range-partitioning. Underlying tablet data is stored in Hadoop's distributed filesystem (HDFS). HDFS handles data replication and consistency among replicas, leaving tablet servers to handle requests, update storage structures, and initiate tablet splits and compactions.

MongoDB handles range partitioning in a manner similar to that of BigTable. Several configuration nodes store and manage the routing tables that specify which storage node is responsible for which key ranges. These configuration nodes stay in sync through a protocol called two-phase commit, and serve as a hybrid of BigTable's master for specifying ranges and Chubby for highly available configuration management. Separate routing processes, which are stateless, keep track of the most recent routing configuration and route key requests to the appropriate storage nodes. Storage nodes are arranged in replica sets to handle replication.

Cassandra provides an order-preserving partitioner if you wish to allow fast range scans over your data. Cassandra nodes are still arranged in a ring using consistent hashing, but rather than hashing a key-value pair onto the ring to determine the server to which it should be assigned, the key is simply mapped onto the server which controls the range in which the key naturally fits. For example, keys 20 and 21 would both be mapped to server A in our consistent hash ring in Figure 13.1, rather than being hashed and randomly distributed in the ring.

Twitter's Gizzard framework for managing partitioned and replicated data across many back ends uses range partitioning to shard data. Routing servers form hierarchies of any depth, assigning ranges of keys to servers below them in the hierarchy. These servers either store data for keys in their assigned range, or route to yet another layer of routing servers. Replication in this model is achieved by sending updates to multiple machines for a key range. Gizzard routing nodes manage failed writes in different manner than other NoSQL systems. Gizzard requires that system designers make all updates idempotent (they can be run twice). When a storage node fails, routing nodes cache and repeatedly send updates to the node until the update is confirmed.

使用哪种分区方案

Which Partitioning Scheme to Use

Given the hash- and range-based approaches to sharding, which is preferable? It depends. Range partitioning is the obvious choice to use when you will frequently be performing range scans over the keys of your data. As you read values in order by key, you will not jump to random nodes in the network, which would incur heavy network overhead. But if you do not require range scans, which sharding scheme should you use?

Hash partitioning gives reasonable distribution of data across nodes, and random skew can be reduced with virtual nodes. Routing is simple in the hash partitioning scheme: for the most part, the hash function can be executed by clients to find the appropriate server. With more complicated rebalancing schemes, finding the right node for a key becomes more difficult.

Range partitioning requires the upfront cost of maintaining routing and configuration nodes, which can see heavy load and become central points of failure in the absence of relatively complex fault tolerance schemes. Done well, however, range-partitioned data can be load-balanced in small chunks which can be reassigned in high-load situations. If a server goes down, its assigned ranges can be distributed to many servers, rather than loading the server's immediate neighbors during downtime.

一致性

Consistency

Having spoken about the virtues of replicating data to multiple machines for durability and spreading load, it's time to let you in on a secret: keeping replicas of your data on multiple machines consistent with one-another is hard. In practice, replicas will crash and get out of sync, replicas will crash and never come back, networks will partition two sets of replicas, and messages between machines will get delayed or lost. There are two major approaches to data consistency in the NoSQL ecosystem. The first is strong consistency, where all replicas remain in sync. The second is eventual consistency, where replicas are allowed to get out of sync, but eventually catch up with one-another. Let's first get into why the second option is an appropriate consideration by understanding a fundamental property of distributed computing. After that, we'll jump into the details of each approach.

关于CAP

• 一致性：当您读取一条数据时，它的所有副本是否总是在逻辑上同意该数据的同一版本？（这种一致性的概念不同于 ACID 中的 C。）
• 可用性：无论有多少副本不可访问，副本是否响应读写请求？
• Partition tolerance：即使某些副本暂时失去了网络通信能力，系统还能继续运行吗？

A Little Bit About CAP

Why are we considering anything short of strong consistency guarantees over our data? It all comes down to a property of distributed systems architected for modern networking equipment. The idea was first proposed by Eric Brewer as the CAP Theorem, and later proved by Gilbert and Lynch [GL02]. The theorem first presents three properties of distributed systems which make up the acronym CAP:

• Consistency: do all replicas of a piece of data always logically agree on the same version of that data by the time you read it? (This concept of consistency is different than the C in ACID.)

• Availability: Do replicas respond to read and write requests regardless of how many replicas are inaccessible?

• Partition tolerance: Can the system continue to operate even if some replicas temporarily lose the ability to communicate with each other over the network?

The theorem then goes on to say that a storage system which operates on multiple computers can only achieve two of these properties at the expense of a third. Also, we are forced to implement partition-tolerant systems. On current networking hardware using current messaging protocols, packets can be lost, switches can fail, and there is no way to know whether the network is down or the server you are trying to send a message to is unavailable. All NoSQL systems should be partition-tolerant. The remaining choice is between consistency and availability. No NoSQL system can provide both at the same time.

Opting for consistency means that your replicated data will not be out of sync across replicas. An easy way to achieve consistency is to require that all replicas acknowledge updates. If a replica goes down and you can not confirm data updates on it, then you degrade availability on its keys. This means that until all replicas recover and respond, the user can not receive successful acknowledgment of their update operation. Thus, opting for consistency is opting for a lack of round-the-clock availability for each data item.

Opting for availability means that when a user issues an operation, replicas should act on the data they have, regardless of the state of other replicas. This may lead to diverging consistency of data across replicas, since they weren't required to acknowledge all updates, and some replicas may have not noted all updates.

The implications of the CAP theorem lead to the strong consistency and eventual consistency approaches to building NoSQL data stores. Other approaches exist, such as the relaxed consistency and relaxed availability approach presented in Yahoo!'s PNUTS [CRS+08] system. None of the open source NoSQL systems we discuss has adopted this technique yet, so we will not discuss it further.

强一致性

• 如果我们设置R=1，并且机器C首先响应 20,000 美元，我们的员工将不会很高兴。
• 但是，如果我们设置R=2，协调器将看到来自 的值C，等待来自A或 的第二次响应B ，这将与C的过时值发生冲突，最后收到来自第三台机器的响应，这将确认 $30,000 是多数意见.

Strong Consistency

Systems which promote strong consistency ensure that the replicas of a data item will always be able to come to consensus on the value of a key. Some replicas may be out of sync with one-another, but when the user asks for the value of employee30:salary, the machines have a way to consistently agree on the value the user sees. How this works is best explained with numbers.

Say we replicate a key on N machines. Some machine, perhaps one of the N, serves as a coordinator for each user request. The coordinator ensures that a certain number of the N machines has received and acknowledged each request. When a write or update occurs to a key, the coordinator does not confirm with the user that the write occurred until W replicas confirm that they have received the update. When a user wants to read the value for some key, the coordinator responds when at least R have responded with the same value. We say that the system exemplifies strong consistency if R+W>N.

Putting some numbers to this idea, let's say that we're replicating each key across N=3 machines (call them A, B, and C). Say that the key employee30:salary is initially set to the value $20,000, but we want to give employee30 a raise to $30,000. Let's require that at least W=2 of A, B, or C acknowledge each write request for a key. When A and B confirm the write request for (employee30:salary, $30,000), the coordinator lets the user know that employee30:salary is safely updated. Let's assume that machine C never received the write request for employee30:salary, so it still has the value $20,000. When a coordinator gets a read request for key employee30:salary, it will send that request to all 3 machines:

• If we set R=1, and machine C responds first with $20,000, our employee will not be very happy.

• However, if we set R=2, the coordinator will see the value from C, wait for a second response from A or B, which will conflict with C's outdated value, and finally receive a response from the third machine, which will confirm that $30,000 is the majority opinion.

So in order to achieve strong consistency in this case, we need to set R=2} so that R+W3}.

What happens when W replicas do not respond to a write request, or R replicas do not respond to a read request with a consistent response? The coordinator can timeout eventually and send the user an error, or wait until the situation corrects itself. Either way, the system is considered unavailable for that request for at least some time.

Your choice of R and W  affect how many machines can act strangely before your system becomes unavailable for different actions on a key. If you force all of your replicas to acknowledge writes, for example, then W=N, and write operations will hang or fail on any replica failure. A common choice is R + W = N + 1, the minimum required for strong consistency while still allowing for temporary disagreement between replicas. Many strong consistency systems opt for W=N and R=1, since they then do not have to design for nodes going out of sync.

HBase bases its replicated storage on HDFS, a distributed storage layer. HDFS provides strong consistency guarantees. In HDFS, a write cannot succeed until it has been replicated to all N (usually 2 or 3) replicas, so W = N. A read will be satisfied by a single replica, so R = 1. To avoid bogging down write-intensive workloads, data is transferred from the user to the replicas asynchronously in parallel. Once all replicas acknowledge that they have received copies of the data, the final step of swapping the new data in to the system is performed atomically and consistently across all replicas.

 最终一致性

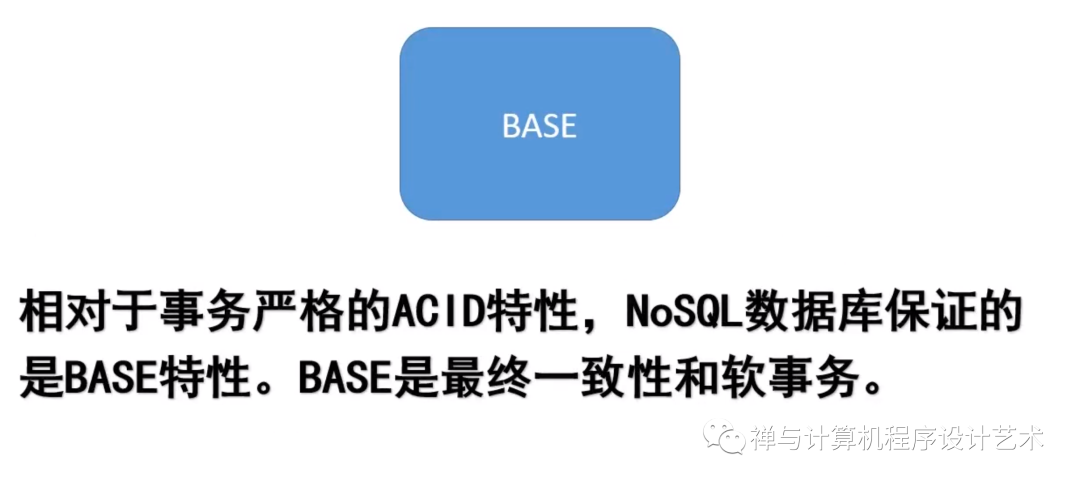

Eventual Consistency

Dynamo-based systems, which include Voldemort, Cassandra, and Riak, allow the user to specify N, R, and W to their needs, even if R + W <= N. This means that the user can achieve either strong or eventual consistency. When a user picks eventual consistency, and even when the programmer opts for strong consistency but W is less than N, there are periods in which replicas might not see eye-to-eye. To provide eventual consistency among replicas, these systems employ various tools to catch stale replicas up to speed. Let's first cover how various systems determine that data has gotten out of sync, then discuss how they synchronize replicas, and finally bring in a few dynamo-inspired methods for speeding up the synchronization process.

版本控制和冲突

Versioning and Conflicts

Because two replicas might see two different versions of a value for some key, data versioning and conflict detection is important. The dynamo-based systems use a type of versioning called vector clocks. A vector clock is a vector assigned to each key which contains a counter for each replica. For example, if servers A, B, and C are the three replicas of some key, the vector clock will have three entries, (N_A, N_B, N_C), initialized to  (0,0,0).

Each time a replica modifies a key, it increments its counter in the vector. If B modifies a key that previously had version (39, 1, 5), it will change the vector clock to (39, 2, 5). When another replica, say C, receives an update from B about the key's data, it will compare the vector clock from B to its own. As long as its own vector clock counters are all less than the ones delivered from B, then it has a stale version and can overwrite its own copy with B's. If B and C have clocks in which some counters are greater than others in both clocks, say (39, 2, 5) and (39, 1, 6), then the servers recognize that they received different, potentially unreconcilable updates over time, and identify a conflict.

解决冲突

Conflict Resolution

Conflict resolution varies across the different systems. The Dynamo paper leaves conflict resolution to the application using the storage system. Two versions of a shopping cart can be merged into one without significant loss of data, but two versions of a collaboratively edited document might require human reviewer to resolve conflict. Voldemort follows this model, returning multiple copies of a key to the requesting client application upon conflict.

Cassandra, which stores a timestamp on each key, uses the most recently timestamped version of a key when two versions are in conflict. This removes the need for a round-trip to the client and simplifies the API. This design makes it difficult to handle situations where conflicted data can be intelligently merged, as in our shopping cart example, or when implementing distributed counters. Riak allows both of the approaches offered by Voldemort and Cassandra. CouchDB provides a hybrid: it identifies a conflict and allows users to query for conflicted keys for manual repair, but deterministically picks a version to return to users until conflicts are repaired.

读取修复

Read Repair

If R replicas return non-conflicting data to a coordinator, the coordinator can safely return the non-conflicting data to the application. The coordinator may still notice that some of the replicas are out of sync. The Dynamo paper suggests, and Cassandra, Riak, and Voldemort implement, a technique called read repair for handling such situations. When a coordinator identifies a conflict on read, even if a consistent value has been returned to the user, the coordinator starts conflict-resolution protocols between conflicted replicas. This proactively fixes conflicts with little additional work. Replicas have already sent their version of the data to the coordinator, and faster conflict resolution will result in less divergence in the system.

提示切换

Hinted Handoff

Cassandra, Riak, and Voldemort all employ a technique called hinted handoff to improve write performance for situations where a node temporarily becomes unavailable. If one of the replicas for a key does not respond to a write request, another node is selected to temporarily take over its write workload. Writes for the unavailable node are kept separately, and when the backup node notices the previously unavailable node become available, it forwards all of the writes to the newly available replica. The Dynamo paper utilizes a 'sloppy quorum' approach and allows the writes accomplished through hinted handoff to count toward the W required write acknowledgments. Cassandra and Voldemort will not count a hinted handoff against W, and will fail a write which does not have W confirmations from the originally assigned replicas. Hinted handoff is still useful in these systems, as it speeds up recovery when an unavailable node returns.

反熵

Anti-Entropy

When a replica is down for an extended period of time, or the machine storing hinted handoffs for an unavailable replica goes down as well, replicas must synchronize from one-another. In this case, Cassandra and Riak implement a Dynamo-inspired process called anti-entropy. In anti-entropy, replicas exchange Merkle Trees to identify parts of their replicated key ranges which are out of sync. A Merkle tree is a hierarchical hash verification: if the hash over the entire keyspace is not the same between two replicas, they will exchange hashes of smaller and smaller portions of the replicated keyspace until the out-of-sync keys are identified. This approach reduces unnecessary data transfer between replicas which contain mostly similar data.

Gossip

Gossip

Finally, as distributed systems grow, it is hard to keep track of how each node in the system is doing. The three Dynamo-based systems employ an age-old high school technique known as gossip to keep track of other nodes. Periodically (every second or so), a node will pick a random node it once communicated with to exchange knowledge of the health of the other nodes in the system. In providing this exchange, nodes learn which other nodes are down, and know where to route clients in search of a key.

结语 A Final Word

NoSQL生态系统仍处于起步阶段，我们讨论的许多系统的架构、设计和接口都可能会改变。本文的重要内容不是每个 NoSQL 系统当前所做的事情，而是导致构成这些系统的功能组合的设计决策。NoSQL 将大量设计工作留给了应用程序设计人员。了解这些系统的架构组件不仅可以帮助您构建下一个伟大的 NoSQL 合并，还可以让您负责任地使用当前版本。

The NoSQL ecosystem is still in its infancy, and many of the systems we've discussed will change architectures, designs, and interfaces. The important takeaways in this chapter are not what each NoSQL system currently does, but rather the design decisions that led to a combination of features that make up these systems. NoSQL leaves a lot of design work in the hands of the application designer. Understanding the architectural components of these systems will not only help you build the next great NoSQL amalgamation, but also allow you to use current versions responsibly.
