【CSDN 编者按】自己在家锻炼时，我们很难知道自己的动作是否标准。本文作者用Python写了一个可以检测俯卧撑动作是否标准的程序，一起来看看他是怎么做的。
原文链接：https://aryanvij02.medium.com/push-ups-with-python-mediapipe-open-a544bd9b4351
GitHub 地址：https://github.com/aryanvij02/PushUpCounter
本文为CSDN翻译，转载请注明来源出处。
在新加坡军队中，有一种测试叫做IPPT（个人身体素质测试）。这个测试的困难不在于它对体力的要求有多高，而在于用来计算做俯卧撑和仰卧起坐次数的电子机器。
和大多数人一样，我的俯卧撑动作总是不达标（根据机器的意见）。此外，由于缺乏参照机器标准的练习，许多NSMen（已经完成两年强制性服役的人）在IPPT测试中都难以取得好成绩。
因此，我决定使用mediapipe和OpenCV创建一个程序，跟踪我们的俯卧撑动作，确保我们每一个俯卧撑动作都达标。

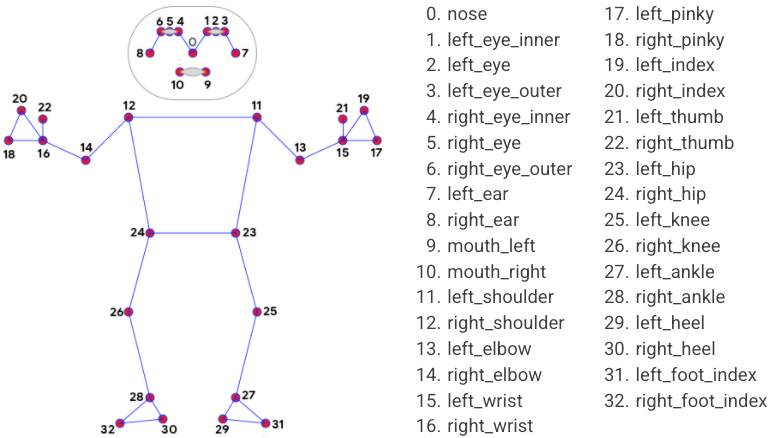

由mediapipe姿势模块检测到的肢体关节
import cv2 import mediapipe as mp import math class poseDetector() : def __init__(self, mode=False, complexity=1, smooth_landmarks=True, enable_segmentation=False, smooth_segmentation=True, detectionCon=0.5, trackCon=0.5): self.mode = mode self.complexity = complexity self.smooth_landmarks = smooth_landmarks self.enable_segmentation = enable_segmentation self.smooth_segmentation = smooth_segmentation self.detectionCon = detectionCon
self.trackCon = trackCon self.mpDraw = mp.solutions.drawing_utils self.mpPose = mp.solutions.pose self.pose = self.mpPose.Pose(self.mode, self.complexity, self.smooth_landmarks, self.enable_segmentation, self.smooth_segmentation, self.detectionCon, self.trackCon) def findPose (self, img, draw=True): imgRGB = cv2.cvtColor(img, cv2.COLOR_BGR2RGB) self.results = self.pose.process(imgRGB) if self.results.pose_landmarks: if draw: self.mpDraw.draw_landmarks(img,self.results.pose_landmarks, self.mpPose.POSE_CONNECTIONS) return img def findPosition(self, img, draw=True): self.lmList = [] if self.results.pose_landmarks: for id, lm in enumerate(self.results.pose_landmarks.landmark): h, w, c = img.shape cx, cy = int(lm.x * w), int(lm.y * h) self.lmList.append([id, cx, cy]) if draw: cv2.circle(img, (cx, cy), 5, (255,0,0), cv2.FILLED) return self.lmList def findAngle(self, img, p1, p2, p3, draw=True): x1, y1 = self.lmList[p1][1:] x2, y2 = self.lmList[p2][1:] x3, y3 = self.lmList[p3][1:] angle = math.degrees(math.atan2(y3-y2, x3-x2) - math.atan2(y1-y2, x1-x2)) if angle < 0: angle += 360 if angle > 180: angle = 360 - angle elif angle > 180: angle = 360 - angle if draw: cv2.line(img, (x1, y1), (x2, y2), (255,255,255), 3) cv2.line(img, (x3, y3), (x2, y2), (255,255,255), 3) cv2.circle(img, (x1, y1), 5, (0,0,255), cv2.FILLED) cv2.circle(img, (x1, y1), 15, (0,0,255), 2) cv2.circle(img, (x2, y2), 5, (0,0,255), cv2.FILLED) cv2.circle(img, (x2, y2), 15, (0,0,255), 2)
cv2.circle(img, (x3, y3), 5, (0,0,255), cv2.FILLED) cv2.circle(img, (x3, y3), 15, (0,0,255), 2) cv2.putText(img, str(int(angle)), (x2-50, y2+50), cv2.FONT_HERSHEY_PLAIN, 2, (0,0,255), 2) return angle def main(): detector = poseDetector() cap = cv2.VideoCapture(0) while cap.isOpened(): ret, img = cap.read() if ret: img = detector.findPose(img) cv2.imshow('Pose Detection', img) if cv2.waitKey(10) & 0xFF == ord('q'): break cap.release() cv2.destroyAllWindows() if __name__ == "__main__": main()
以上是这个程序的代码。
上面的代码来源于PoseModule.py，有以下几个功能：
接下来是实际的俯卧撑计数的代码。我们使用PoseModule并确定一个俯卧撑合格与否的标准。
import cv2 import mediapipe as mp import numpy as np import PoseModule as pm cap = cv2.VideoCapture(0) detector = pm.poseDetector() count = 0 direction = 0 form = 0 feedback = "Fix Form"
while cap.isOpened(): ret, img = cap.read() #640 x 480 width = cap.get(3) # float `width` height = cap.get(4) # float `height` img = detector.findPose(img, False) lmList = detector.findPosition(img, False) if len(lmList) != 0: elbow = detector.findAngle(img, 11, 13, 15) shoulder = detector.findAngle(img, 13, 11, 23) hip = detector.findAngle(img, 11, 23,25) per = np.interp(elbow, (90, 160), (0, 100)) bar = np.interp(elbow, (90, 160), (380, 50)) if elbow > 160 and shoulder > 40 and hip > 160: form = 1 if form == 1: if per == 0: if elbow <= 90 and hip > 160: feedback = "Up" if direction == 0: count += 0.5 direction = 1 else: feedback = "Fix Form" if per == 100: if elbow > 160 and shoulder > 40 and hip > 160: feedback = "Down" if direction == 1: count += 0.5 direction = 0 else: feedback = "Fix Form" print(count) if form == 1: cv2.rectangle(img, (580, 50), (600, 380), (0, 255, 0), 3) cv2.rectangle(img, (580, int(bar)), (600, 380), (0, 255, 0), cv2.FILLED) cv2.putText(img, f'{int(per)}%', (565, 430), cv2.FONT_HERSHEY_PLAIN, 2, (255, 0, 0), 2) cv2.rectangle(img, (0, 380), (100, 480), (0, 255, 0), cv2.FILLED) cv2.putText(img, str(int(count)), (25, 455), cv2.FONT_HERSHEY_PLAIN, 5, (255, 0, 0), 5) cv2.rectangle(img,
(500, 0), (640, 40), (255, 255, 255), cv2.FILLED) cv2.putText(img, feedback, (500, 40 ), cv2.FONT_HERSHEY_PLAIN, 2, (0, 255, 0), 2) cv2.imshow('Pushup counter', img) if cv2.waitKey(10) & 0xFF == ord('q'): break cap.release() cv2.destroyAllWindows()
有个需要注意的地方在第17-21行。确定从相机捕捉到的图像的分辨率，并在绘制俯卧撑计数的矩形时调整像素值，等等。(第68-82行)。
我们完成了！一个能确保动作标准的俯卧撑计数软件。没有完全俯下？不算数! 膝盖放在了地上？不算数！
快乐的做俯卧撑吧！
