一只区块链猫卖77万元?3步教你在区块链上开一家宠物店!

51CTO官微 • 7 年前 • 897 次点击

转自公众号:区块链社区HiBlock

微信号:HiBlock-Net


最近,区块链技术被炒得火热的除了比特币屡创天价外,一种区块链撸猫的游戏突然火遍以太坊,短短一周时间就让以太坊网络几乎瘫痪。



这款把以太坊网络“攻击”瘫痪的游戏就是CryptoKitties,俗称区块链撸猫。许多猫的售价高达数百至数千ETH,折合人民币相当于几十万。就这样一个游戏,一只猫最高的成交价是77万(贫穷限制了我的想象力)。


CryptoKitties有哪些规则?到底怎么玩?


要想在区块链上愉快地撸猫,就得先去市场上买一只猫。先挑便宜的买:


一次性买两:


买到后,就可以让它两下崽了:


下崽是个技术活。每只猫都有256个属性,控制着毛色、花纹、胡须、牙齿等等,可以理解成256种不同的基因。两只猫繁殖的时候,基因以一定的概率遗传。


基因也会突变,如果遇到基因突变,就会生出奇形怪状的小猫。例如,带翅膀的猫:


针对宠物商店这一现象级游戏应用,我们给出了一个在以太坊上构建去中心化区块链应用的教程,3步教你在以太坊上开一家宠物店。


  • 首先准备并部署开发环境

  • 其次编写并部署智能合约

  • 最后测试合约并创建交互


大家都搞区块链,来不及解释了,赶紧上车就对了,按照这个教程自己写个宠物商店吧。


以下是根据开发过程整理的流程文档。


1

开发环境的准备


本地环境Mac


这个教程会用到的环境:

  • 开发环境:node.js, npm (本文用到的node version, v9.11.1 npm version v5.6.0)

  • 编译部署环境:truffle (version 4.1.5, solidity 0.4.21)

  • 以太坊私链:ganache (version 1.1.0)


问题:

这里碰到第一个坑,以前安装过老版本node.js,提示必须升级新版本,但总提示:brew link error 无法找到:/usr/local/Cellar/


解决方案:

uninstall, install, link 最终解决


安装开发环境

BobJianglocal:pet-shop-tutorial bobjiang$ brew uninstall node --force

BobJianglocal:pet-shop-tutorial bobjiang$ brew uninstall npm --force
BobJianglocal:pet-shop-tutorial bobjiang$ brew link node
BobJianglocal:pet-shop-tutorial bobjiang$ brew install node
BobJianglocal:pet-shop-tutorial bobjiang$


安装truffle

BobJianglocal:pet-shop-tutorial bobjiang$ npm install -g truffle


安装ganache

下载ganache(地址:http://truffleframework.com/ganache/)


2

从Truffle box创建项目

BobJianglocal:pet-shop-tutorial bobjiang$ mkdir pet-shop-tutorial
BobJianglocal:pet-shop-tutorial bobjiang$ cd pet-shop-tutorial/
BobJianglocal:pet-shop-tutorial bobjiang$ truffle unbox pet-shop


truffle框架目录介绍:

  • contracts/ : 智能合约文件存在这里,后缀.sol (solidity)

  • migrations/ : 部署脚本

  • test/ : 测试脚本

  • truffle.js :truffle的配置文件


3

编写智能合约


在 contracts/ 目录下创建 Adoption.sol 文件,内容如下:

pragma solidity ^0.4.17;

contract Adoption {
   address[16] public adopters;

   //adopting a pet
   function adopt(uint petId) public returns (uint) {
     require(petId >= 0 && petId <= 15);
     adopters[petId] = msg.sender;
     return petId;
   }

   //retrieve the adopters
   function getAdopters() public view returns (address[16]) {
     return adopters;
   }
}


4

编译部署合约


编译合约

BobJianglocal:pet-shop-tutorial bobjiang$ truffle compile
Compiling ./contracts/Adoption.sol...
Compiling ./contracts/Migrations.sol...

Compilation warnings encountered:

/Users/bobjiang/Documents/hiblock.net/truffle/pet-shop-tutorial/contracts/Migrations.sol:11:3: Warning: No visibility specified. Defaulting to "public".
 function Migrations() {
 ^ (Relevant source part starts here and spans across multiple lines).
,/Users/bobjiang/Documents/hiblock.net/truffle/pet-shop-tutorial/contracts/Migrations.sol:15:3: Warning: No visibility specified. Defaulting to "public".
 function setCompleted(uint completed) restricted {
 ^ (Relevant source part starts here and spans across multiple lines).
,/Users/bobjiang/Documents/hiblock.net/truffle/pet-shop-tutorial/contracts/Migrations.sol:19:3: Warning: No visibility specified. Defaulting to "public".
 function upgrade(address new_address) restricted {
 ^ (Relevant source part starts here and spans across multiple lines).

Writing artifacts to ./build/contracts

上面有警告的地方,可以忽略。(原来给的文件里面没有指定函数的可见性)


部署合约

1.在 migratios/ 目录内创建新文件 2_deploy_contracts.js 内容如下:

var Adoption = artifacts.require("Adoption");

module.exports = function(deployer) {
   deployer.deploy(Adoption);
};


2.确保安装好了 ganache

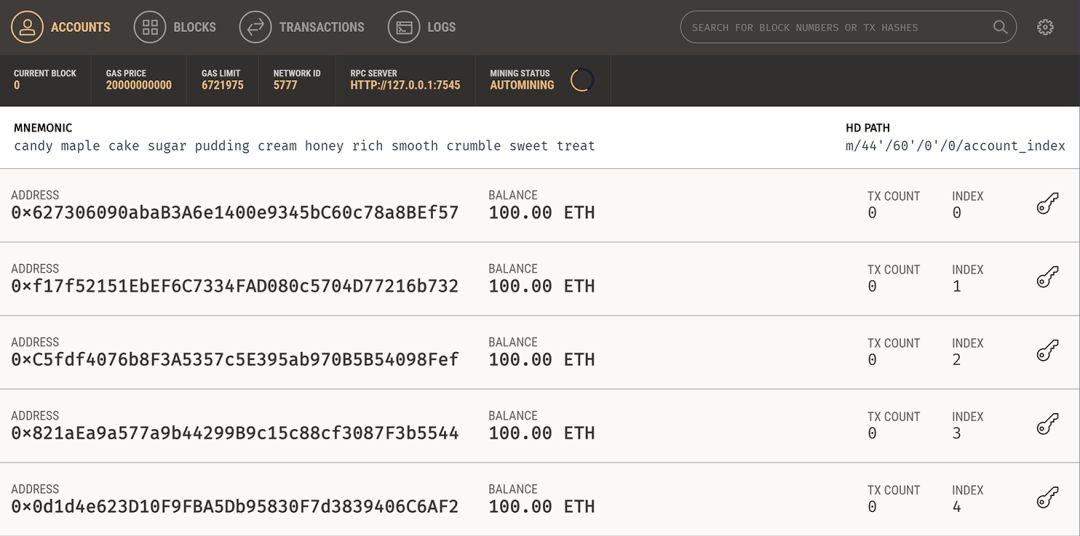

安装好后第一次启动的界面如下(借用的源文档图片)


3.智能合约部署到以太坊(私链)上

BobJianglocal:pet-shop-tutorial bobjiang$ truffle migrate
Using network 'development'.

Running migration: 1_initial_migration.js
 Deploying Migrations...
 ... 0x579459f9d2e89ed07356c7565056e082b540c5f441ffcdc1e4676f42536451d5
 Migrations: 0x651ee6754b509e0f3413fcb6c88c6c20dc8c9d28
Saving successful migration to network...
 ... 0xfafeb069ba502196abeabef2c097bdd9e4db9ab02c98a9b98d8db47f7d205a9b
Saving artifacts...
Running migration: 2_deploy_contracts.js
 Deploying Adoption...
 ... 0xaee412f76fe2ed3853f8e138f009cd8fca23835547a39e23188affef55665460
 Adoption: 0x104ba492f5d8f4e0df6971ae09ca0c9b496ff15b
Saving successful migration to network...
 ... 0x9219eeba1a1eb945d4fe1fb1bf6cdb2b70218c22b264134cfd97e2f4dfe026ef
Saving artifacts...

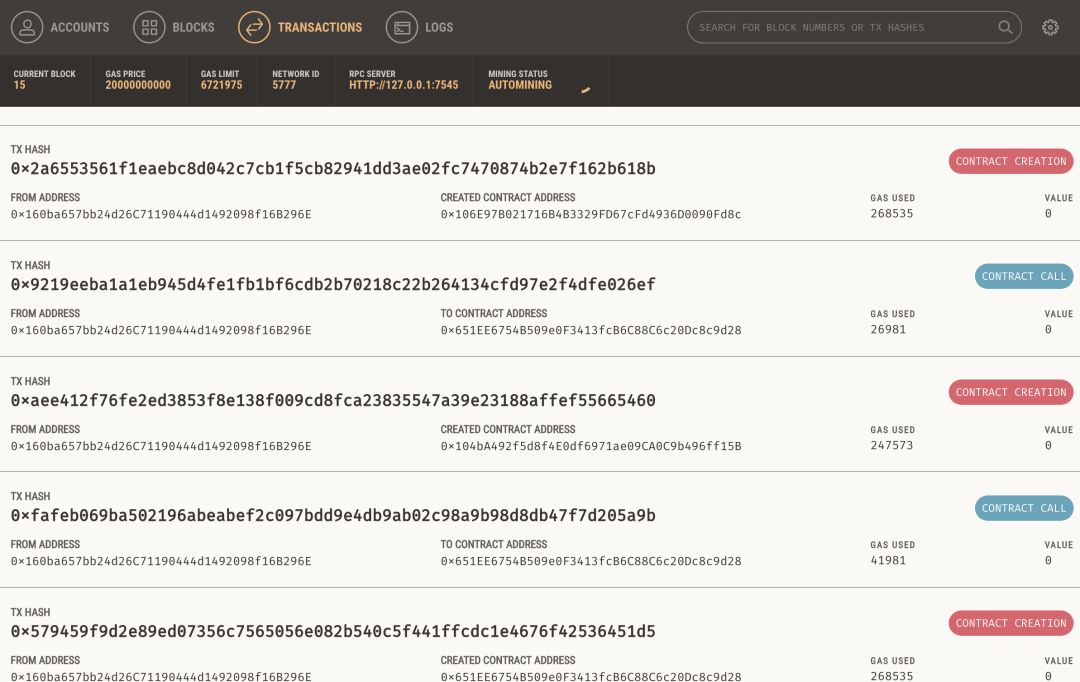

部署完成后,可以看到有四笔交易(四个区块):


5

测试智能合约


智能合约可以也可以用测试类来进行断言(assert)验证。例如在 test/ 目录内创建新文件 TestAdoption.sol 内容如下:

pragma solidity ^0.4.17;

import "truffle/Assert.sol";
import "truffle/DeployedAddresses.sol";
import "../contracts/Adoption.sol";

contract TestAdoption {
   Adoption adoption = Adoption(DeployedAddresses.Adoption());

   //test adopt() function
   function testUserCanAdoptPet() public {
     uint returnedId = adoption.adopt(8);

     uint expected = 8;

     Assert.equal(returnedId, expected, "Adoption of Pet ID 8 should be recorded.");
   }

   //test retrieve of a single pet owner
   function testGetAdopterAddressByPetId() public {
     //expected owner is this contract
     address expected = this;
     address adopter = adoption.adopters(8);
     Assert.equal(adopter, expected, "owner of pet id 8 should be recorded.");
   }

   //test retrive of all pet owners
   function testGetAdopterAddressByPetIdInArray() public {
     //expected owner is this contract
     address expected = this;
     address[16] memory adopters = adoption.getAdopters();

     Assert.equal(adopters[8], expected, "owner of pet id 8 should be recorded.");
   }
}


运行测试,结果如下:

BobJianglocal:pet-shop-tutorial bobjiang$ pwd
/hiblock.net/truffle/pet-shop-tutorial
BobJianglocal:pet-shop-tutorial bobjiang$ truffle test
Using network 'development'.

Compiling ./contracts/Adoption.sol...
Compiling ./test/TestAdoption.sol...
Compiling truffle/Assert.sol...
Compiling truffle/DeployedAddresses.sol...

Compilation warnings encountered:

truffle/Assert.sol:1563:9: Warning: Use of the "var" keyword is deprecated.
       var nstr = _itoa(value, 10);
       ^------^
,truffle/Assert.sol:1580:9: Warning: Use of the "var" keyword is deprecated.
       var nstr = _utoa(value, 10);
       ^------^
,truffle/Assert.sol:1597:9: Warning: Use of the "var" keyword is deprecated.
       var nstr = _ltoa(value);
       ^------^
,truffle/Assert.sol:1347:13: Warning: Invoking events without "emit" prefix is deprecated.
           TestEvent(true, "");
           ^-----------------^
,truffle/Assert.sol:1349:13: Warning: Invoking events without "emit" prefix is deprecated.
           TestEvent(false, message);
           ^-----------------------^



 TestAdoption
   ✓ testUserCanAdoptPet (113ms)
   ✓ testGetAdopterAddressByPetId (103ms)
   ✓ testGetAdopterAddressByPetIdInArray (132ms)

 3 passing (1s)



上面Assert.sol里面有警告,var关键词已经不建议使用。忽略掉。


6

开始用户界面的工作


用户界面(UI)是前端工作,这里用的javascript。主要文件是app.js,存在目录 /src/js/app.js 中。文件内容如下:

App = {
 web3Provider: null,
 contracts: {},

 init: function() {
   // Load pets.
   $.getJSON('../pets.json', function(data) {
     var petsRow = $('#petsRow');
     var petTemplate = $('#petTemplate');

     for (i = 0; i < data.length; i ++) {
       petTemplate.find('.panel-title').text(data[i].name);
       petTemplate.find('img').attr('src', data[i].picture);
       petTemplate.find('.pet-breed').text(data[i].breed);
       petTemplate.find('.pet-age').text(data[i].age);
       petTemplate.find('.pet-location').text(data[i].location);
       petTemplate.find('.btn-adopt').attr('data-id', data[i].id);

       petsRow.append(petTemplate.html());
     }
   });

   return App.initWeb3();
 },

 initWeb3: function() {
   // Is there an injected web3 instance?
if (typeof web3 !== 'undefined') {
 App.web3Provider = web3.currentProvider;
} else {
 // If no injected web3 instance is detected, fall back to Ganache
 App.web3Provider = new Web3.providers.HttpProvider('http://localhost:7545');
}
web3 = new Web3(App.web3Provider);

   return App.initContract();
 },

 initContract: function() {
   $.getJSON('Adoption.json', function(data) {
 // Get the necessary contract artifact file and instantiate it with truffle-contract
 var AdoptionArtifact = data;
 App.contracts.Adoption = TruffleContract(AdoptionArtifact);

 // Set the provider for our contract
 App.contracts.Adoption.setProvider(App.web3Provider);

 // Use our contract to retrieve and mark the adopted pets
 return App.markAdopted();
});

   return App.bindEvents();
 },

 bindEvents: function() {
   $(document).on('click', '.btn-adopt', App.handleAdopt);
 },

 markAdopted: function(adopters, account) {
   var adoptionInstance;

App.contracts.Adoption.deployed().then(function(instance) {
 adoptionInstance = instance;

 return adoptionInstance.getAdopters.call();
}).then(function(adopters) {
 for (i = 0; i < adopters.length; i++) {
   if (adopters[i] !== '0x0000000000000000000000000000000000000000') {
     $('.panel-pet').eq(i).find('button').text('Success').attr('disabled', true);
   }
 }
}).catch(function(err) {
 console.log(err.message);
});
 },

 handleAdopt: function(event) {
   event.preventDefault();

   var petId = parseInt($(event.target).data('id'));

   var adoptionInstance;

web3.eth.getAccounts(function(error, accounts) {
 if (error) {
   console.log(error);
 }

 var account = accounts[0];

 App.contracts.Adoption.deployed().then(function(instance) {
   adoptionInstance = instance;

   // Execute adopt as a transaction by sending account
   return adoptionInstance.adopt(petId, {from: account});
 }).then(function(result) {
   return App.markAdopted();
 }).catch(function(err) {
   console.log(err.message);
 });
});
 }

};

$(function() {
 $(window).load(function() {
   App.init();
 });
});


安装配置MetaMask

与Dapp互动的最容易的方式是通过 MetaMask

(地址:https://metamask.io/)


  • 1.在浏览器内安装MetaMask

  • 2.装好后,以Chrome浏览器插件形式存在

  • 3.同意,接受条款

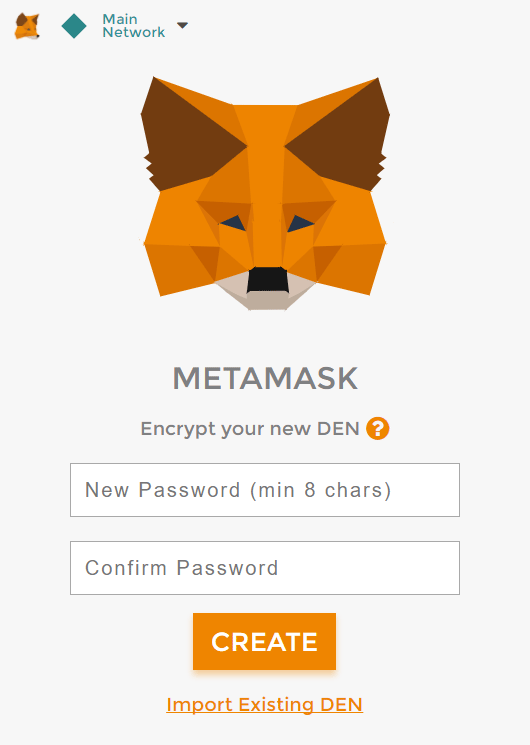

  • 4.如下图,点击"Import Existing DEN"

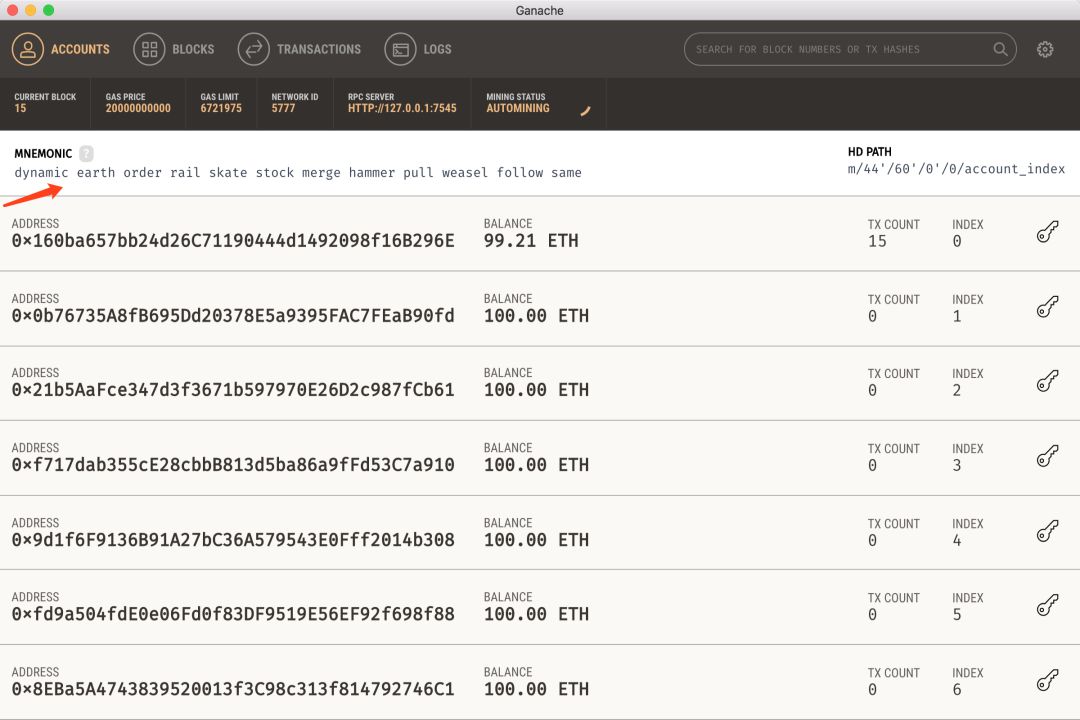

  • 5.返回 ganache 的主界面,在 Accounts 下有一行12个单词的助记词,如下图

  • 6.复制助记词,粘贴到 MetaMask 界面中的 Wallet Seed 文本框中

  • 7.设置一个密码,点击 OK

  • 8.点击 MetaMask 左上角的 Main Network ,点击 Custom RPC

  • 9.在 New RPC URL 中输入 “http://127.0.0.1:7545”

  • 10.返回 MetaMask 主界面,可以看到账户信息


上面的第六步碰到第二个坑,这里的助记词一定用你的 ganache 私链上的,否则 MetaMask 钱包无法链接到本地的私链,因此无法显示余额


安装配置 lite-server

在解开的目录内,有 bs-config.jscon 和 package.json 两个配置文件,不必要修改。(这里定义了lite server,一会儿浏览器访问dapp用)


命令行启动lite-server

BobJianglocal:pet-shop-tutorial bobjiang$ npm run dev

> pet-shop@1.0.0 dev /Users/bobjiang/Documents/hiblock.net/truffle/pet-shop-tutorial
> lite-server

** browser-sync config **
{ injectChanges: false,
 files: [ './**/*.{html,htm,css,js}' ],
 watchOptions: { ignored: 'node_modules' },
 server:
  { baseDir: [ './src', './build/contracts' ],
    middleware: [ [Function], [Function] ] } }
[Browsersync] Access URLs:
----------------------------------------
      Local: http://localhost:3000
   External: http://192.168.199.126:3000
----------------------------------------
         UI: http://localhost:3001
UI External: http://192.168.199.126:3001
----------------------------------------
[Browsersync] Serving files from: ./src
[Browsersync] Serving files from: ./build/contracts
[Browsersync] Watching files...
18.04.08 15:20:02 200 GET /index.html

1.打开宠物店: http://localhost:3000

2.选择一个你喜欢的狗狗,点击 Adopt(领养)

3.MetaMask会自动提示,有一笔交易需要你同意

4.点击 Submit 返回宠物店

可能需要刷新页面 http://localhost:3000,就可以看到刚才你领养的那只狗,已经领养成功了。(其他人无法领养)

5.返回 MetaMask 钱包可以看到刚才的领养的交易

6.返回 ganache 也可以看到刚才的这笔交易被打包了

恭喜你,属于你的宠物店搞定啦!
